Hazard Warning and Cruise Control Switch Replacement

REMOVAL PROCEDURE




1. Remove the center air deflector.

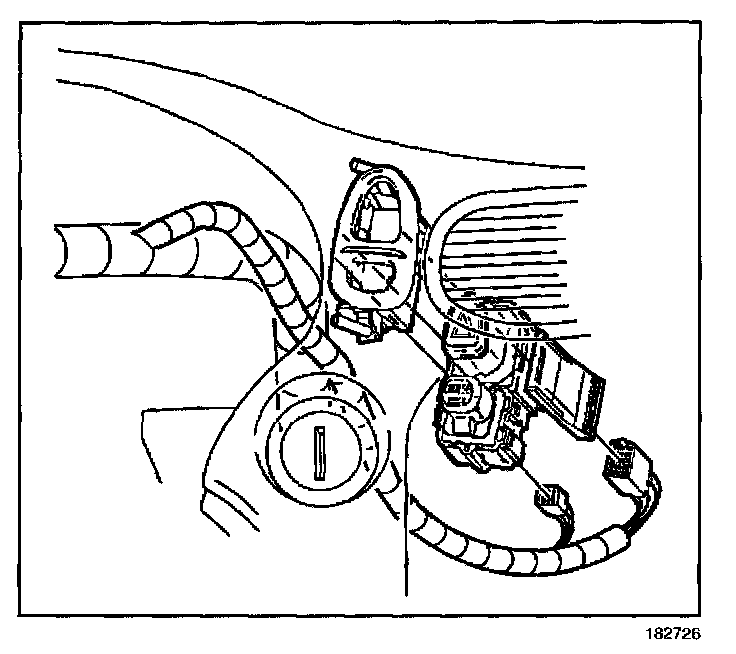

2. Squeeze the retainer on the backside of hazard warning and cruise control switch.
3. Pull the hazard warning and cruise control switch from the retainer in the instrument panel.
4. Disconnect the electrical connectors from the hazard warning and cruise control switch.
5. Remove the hazard warning and cruise control switch from instrument panel.

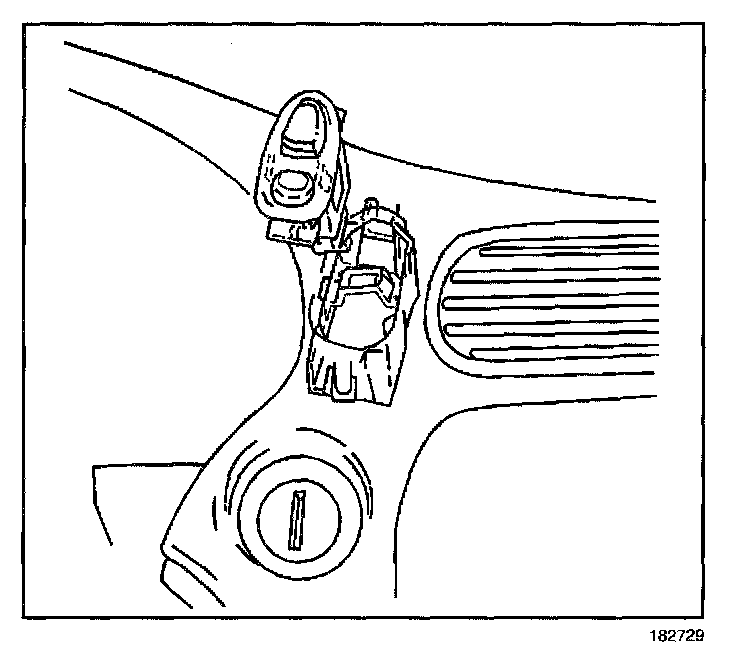

6. Pull the hazard warning and cruise control switch bezel from the instrument panel trim pad.

INSTALLATION PROCEDURE

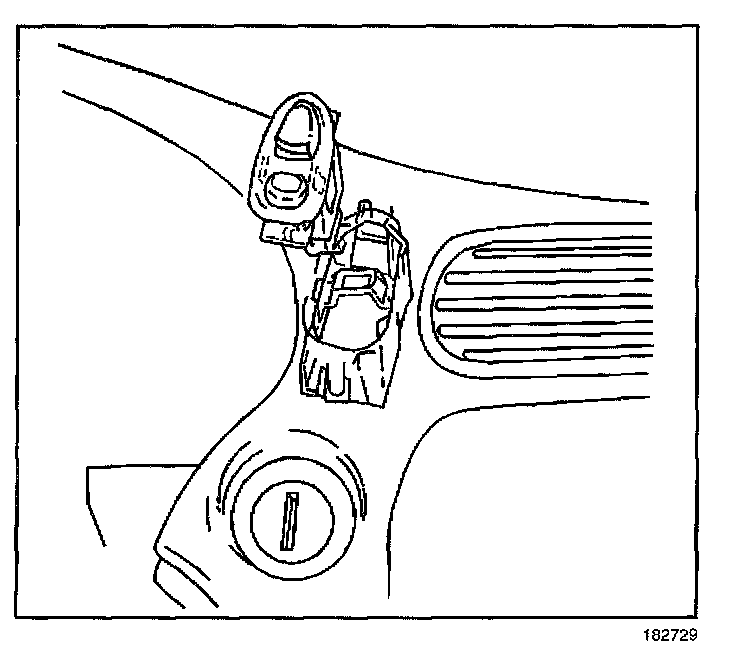

1. Press the hazard warning and cruise control switch bezel to the instrument panel.




2. Connect the electrical connectors to the hazard warning and cruise control switch.
3. Press the hazard warning and cruise control switch into the retainer. The switches will snap into position.
4. Install the center air deflector.
