Hood Release Lever Replacement

REMOVAL PROCEDURE




1. Remove the Steering column filler panel.
2. Remove the bolts/screws from the hood release handle base.

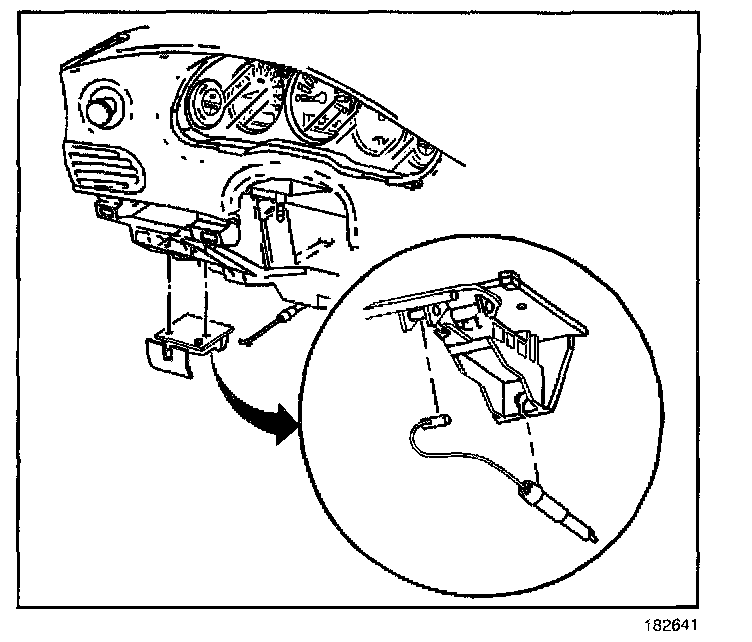

3. Remove the hood release cable from the hood release handle
4. Remove the hood release handle from the instrument panel.

INSTALLATION PROCEDURE

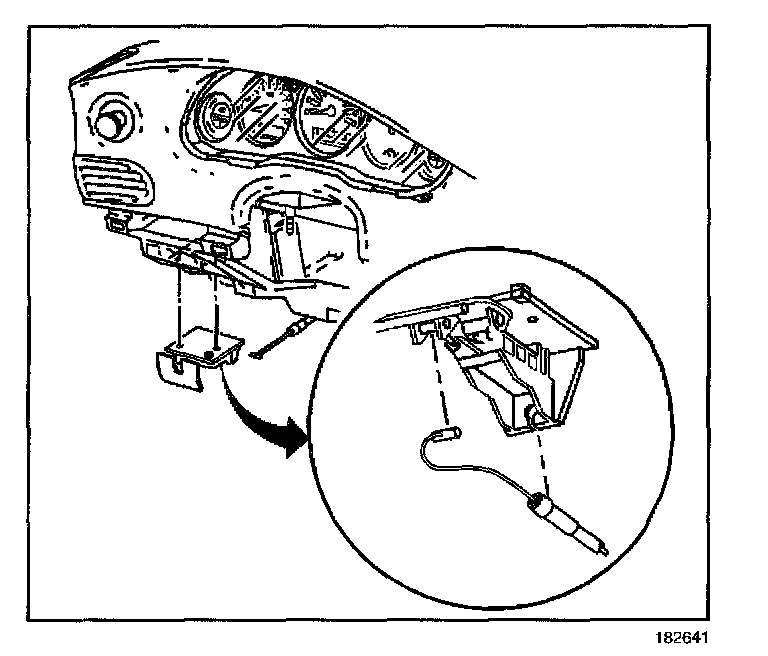

1. Install the hood release cable to the hood release handle.




2. Install the hood release handle to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

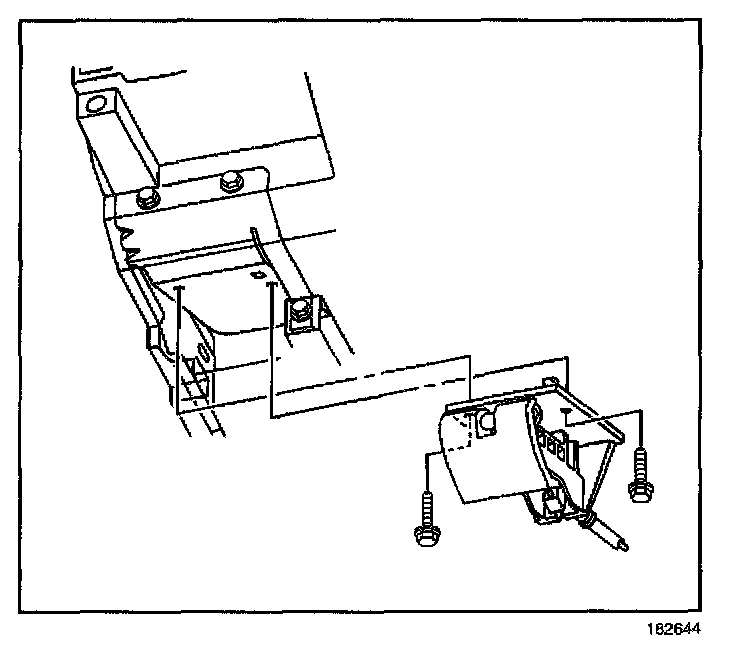

3. Install the bolts to hood release handle base.

Tighten
Tighten the hood release handle base bolts to 2 N.m (18 lb in).

4. Install the instrument panel steering column filler.
