Instrument Panel (IP) - Air Deflector/Louver - Center

REMOVAL PROCEDURE




1. Remove the radio.

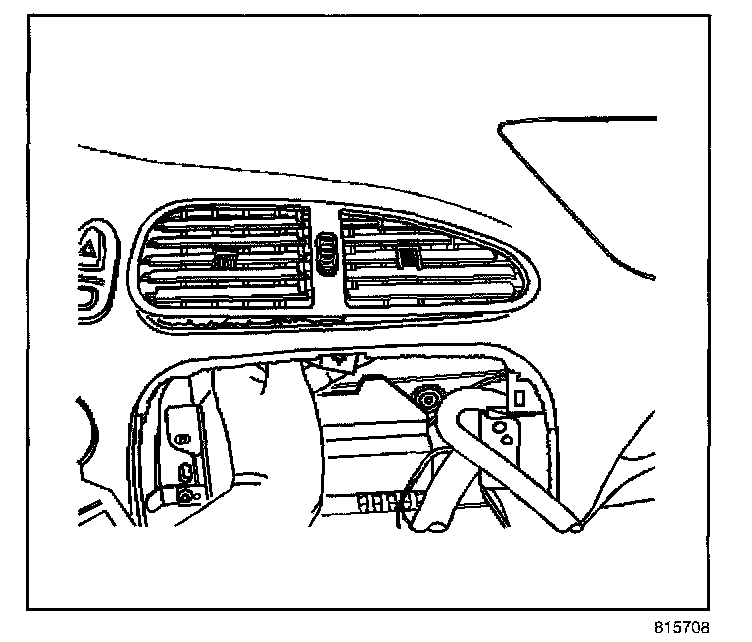

2. Reach through the radio opening and push the retainers up towards the roof of the vehicle. When the retainers release, slide the instrument panel (I/P) center air outlet deflector out of the I/P opening.




3. Remove the air outlet deflector.

INSTALLATION PROCEDURE




1. Position the air outlet deflector into the opening.
2. Install the air outlet deflector by pressing in until the retainers are fully seated.
3. Install the radio.
