Instrument Panel (IP) - Air Deflector/Louver - Left

REMOVAL PROCEDURE

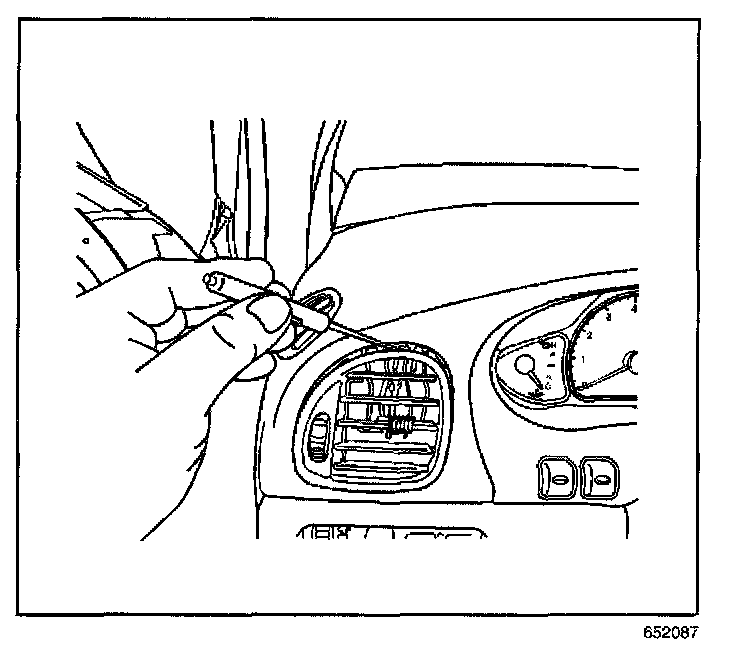

1. Release the instrument panel (I/P) outer air outlet deflector by inserting a small flat-bladed tool to the center upper position of the air outlet deflector.

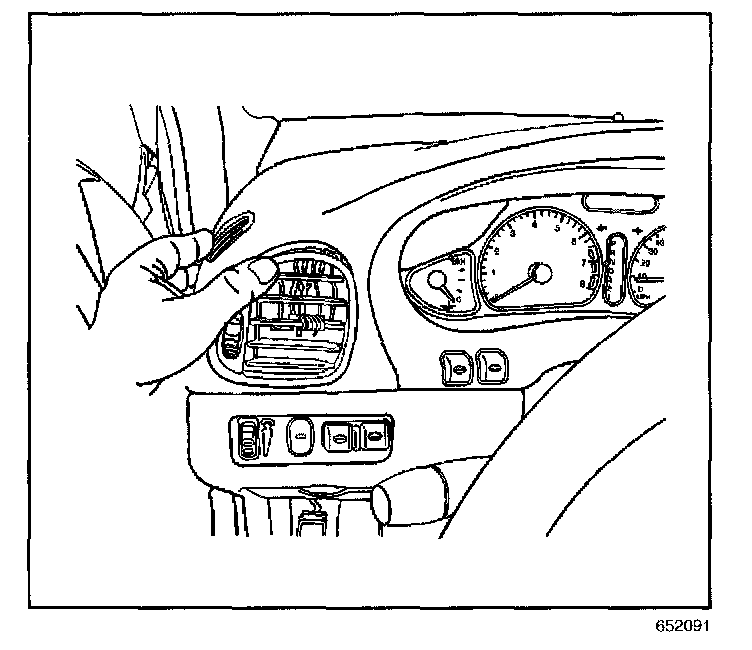

2. Pull the air outlet deflector from the I/P.

INSTALLATION PROCEDURE

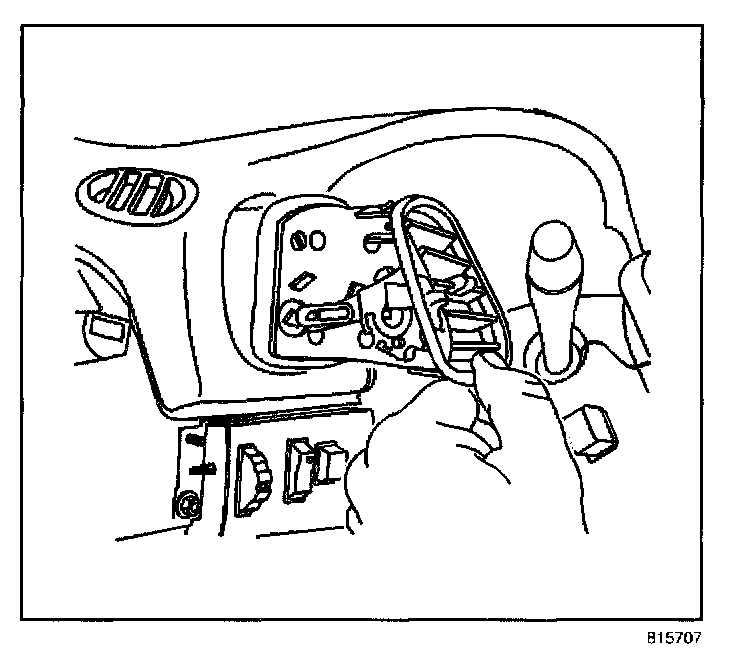

1. Position the air outlet deflector to the I/P.

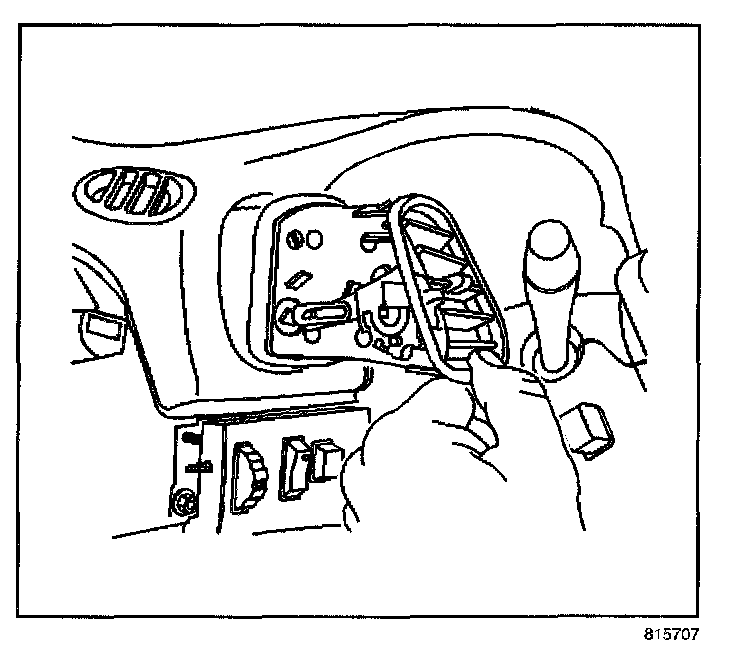

2. Press the air outlet deflector into place until the retainers are fully seated.
3. Inspect the air outlet deflector for proper operation.
