Instrument Panel (IP) - Multifunction Switch Assembly Replacement

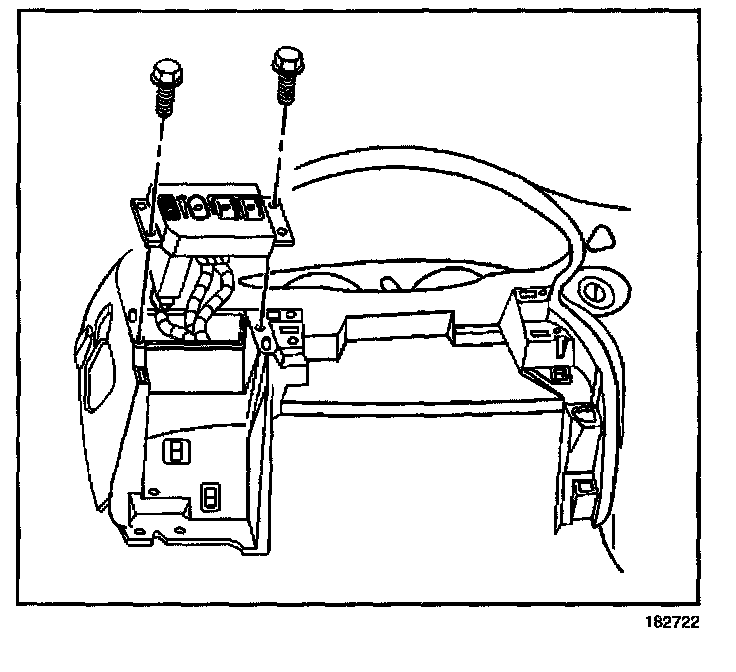

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) steering column opening filler.
2. Remove the screws from the switch bezel.
3. Pull the switch bezel from the I/P trim pad.
4. Disconnect the electrical connectors.
5. Disengage the switch retainers. Remove the I/P lamp dimmer switch, the fog lamp switch, and the rear compartment lid release switch from the switch bezel, as required.

INSTALLATION PROCEDURE




1. Install the I/P lamp dimmer switch, the fog lamp switch, and the rear compartment lid release switch to the switch bezel, as required.
2. Connect the electrical connectors.
3. Align the switch bezel to the I/P trim pad.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the switch bezel screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

5. Install the I/P steering column opening filler.
