Instrument Cluster Trim Panel Replacement

REMOVAL PROCEDURE

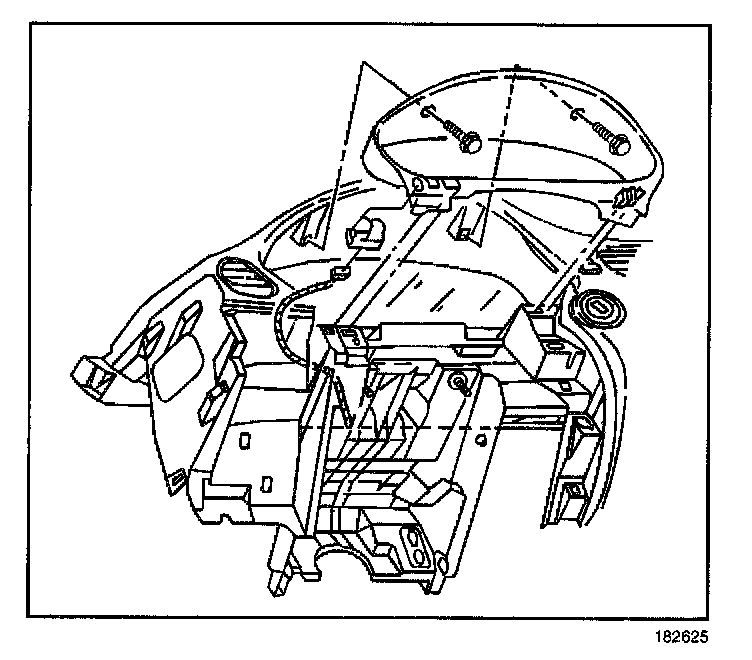

1. Remove the screws from the instrument panel cluster trim plate.
2. Remove the Steering Column Filler Panel.
3. Pull out instrument panel cluster trim plate to release from retainers.
4. Remove the trip odometer and reset switch from the instrument panel cluster trim plate.
5. Remove the instrument panel cluster trim plate from the instrument panel.

INSTALLATION PROCEDURE




1. Install the trip odometer and reset switch to the instrument panel cluster trim plate.
2. Align the instrument panel cluster trim plate to the instrument panel retainers.
3. Install the instrument panel cluster trim plate. Press into place until fully seated.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the screws to the instrument panel cluster trim plate.

Tighten
Tighten the instrument panel cluster trim plate bolts to 2 N.m (18 lb in).

5. Install the Steering Column Filler Panel.
