Trip Odometer and Reset Switch Replacement

REMOVAL PROCEDURE

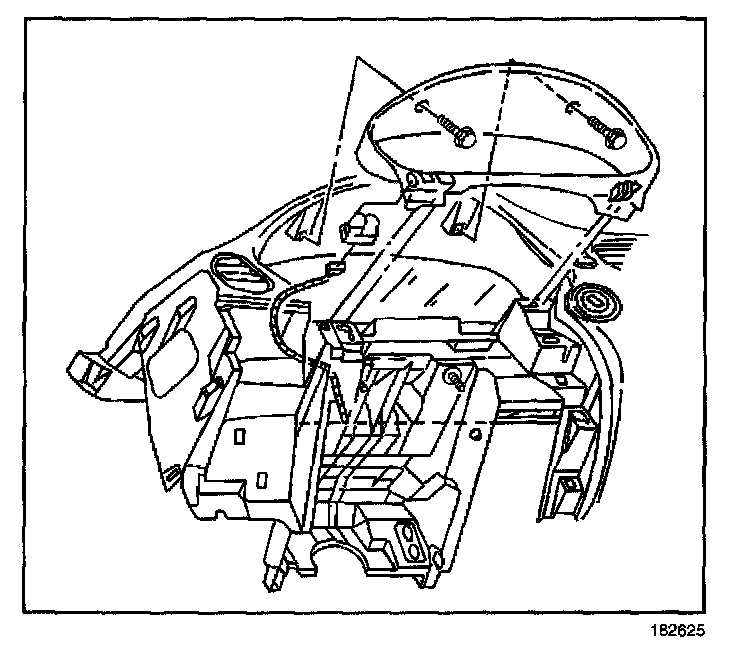

1. Remove the instrument panel (I/P) cluster trim plate screws.
2. Remove the steering column filler panel.
3. Pull the I/P cluster trim plate rearward to disengage the retainers.
4. Disconnect the electrical connector from the trip odometer and reset switch.
5. Release the retainers on the trip odometer and reset switch by using a small flat-bladed tool.
6. Remove the trip odometer and reset switch from the instrument panel cluster trim plate.

INSTALLATION PROCEDURE




1. Align the trip odometer and reset switch to the I/P cluster trim plate.
2. Install the trip odometer and reset switch. Press into place until fully seated.
3. Connect the electrical connector to the trip odometer and reset switch.
4. Press the I/P cluster trim plate to the I/P to engage the retainers.
5. Install the steering column filler panel.

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the I/P cluster trim plate screws.

Tighten
Tighten the screws to 2 N.m (18 lb in)
