Fuel Gage Inaccurate or Inoperative

DIAGNOSTIC AIDS
^ Ensure that the fuel level is in the same range as the customer concern.
^ There is an access panel to the fuel level sender in the trunk.
^ For intermittent diagnosis, refer to Testing for Intermittent and Poor Connections in Diagnostic Aids.
^ Refer to Fuel Level Specifications in order to verity the correct fuel level sensor readings. The Fuel Tank Level Remaining parameter is available on the scan tool in the PCM EVAP Data list

TEST DESCRIPTION

Steps 1-4:

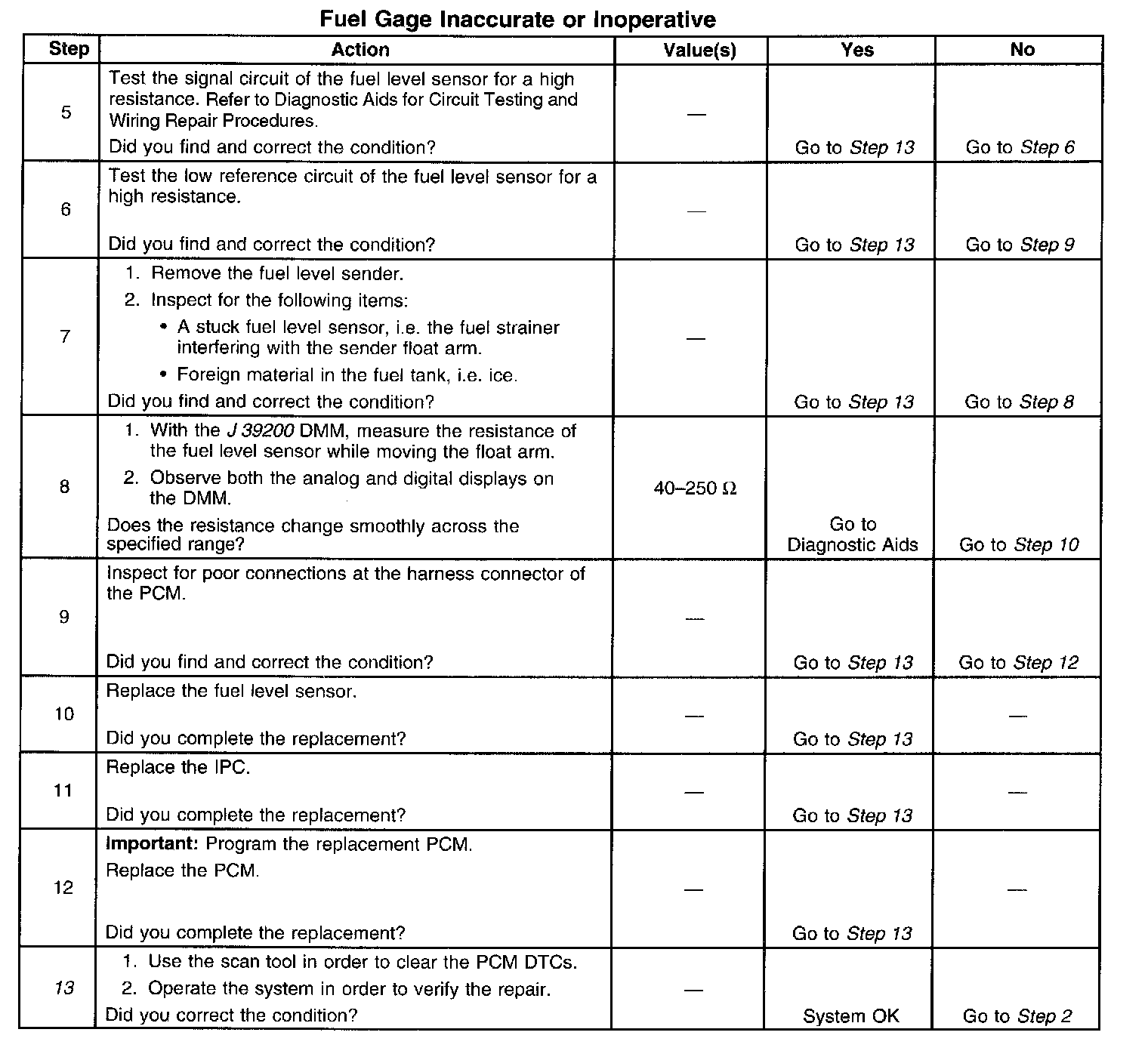

Steps 5-13:

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a high resistance in the signal circuit and the low reference circuit of the fuel level sensor.
13. DTCs will be set in the PCM when you perform this diagnostic table.
