Front

REMOVAL PROCEDURE




1. Remove the front bumper fascia deflector.

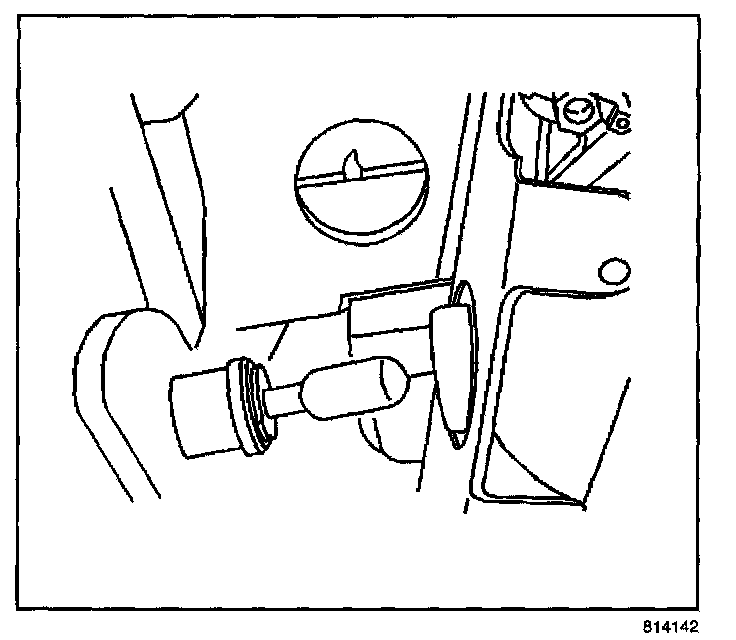

2. Disconnect the electrical connector from the front fog lamp.
3. Remove the front fascia lower support.




4. Remove the tog lamp bulb/socket from the tog lamp by rotating counterclockwise.




5. Remove the front tog lamp nuts from the front bumper impact bar.
6. Remove the front fog lamp from the vehicle.

INSTALLATION PROCEDURE




1. Position the front tog lamp to the front bumper impact bar.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front fog lamp nuts to the front bumper impact bar.

Tighten
Tighten the nuts to 10 N.m (89 lb in).

3. Install the front fascia lower support.

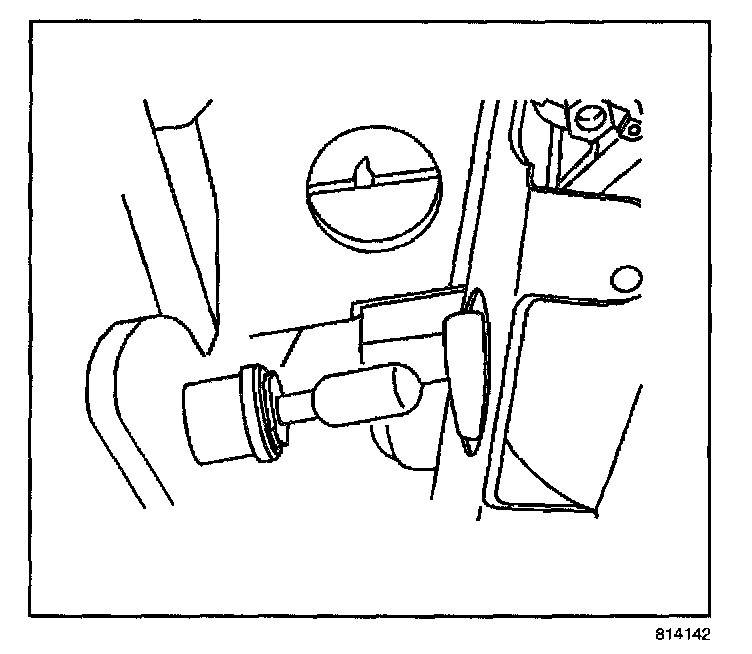

4. Install the tog lamp bulb/socket to the fog lamp by rotating clockwise.




5. Connect the electrical connector to the front tog lamp.
6. Install the front bumper fascia deflector.
7. Check and adjust the front tog lamp aim as necessary. Refer to Fog Lamp Aiming Procedure.
