Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Emission Controls
Emission Controls

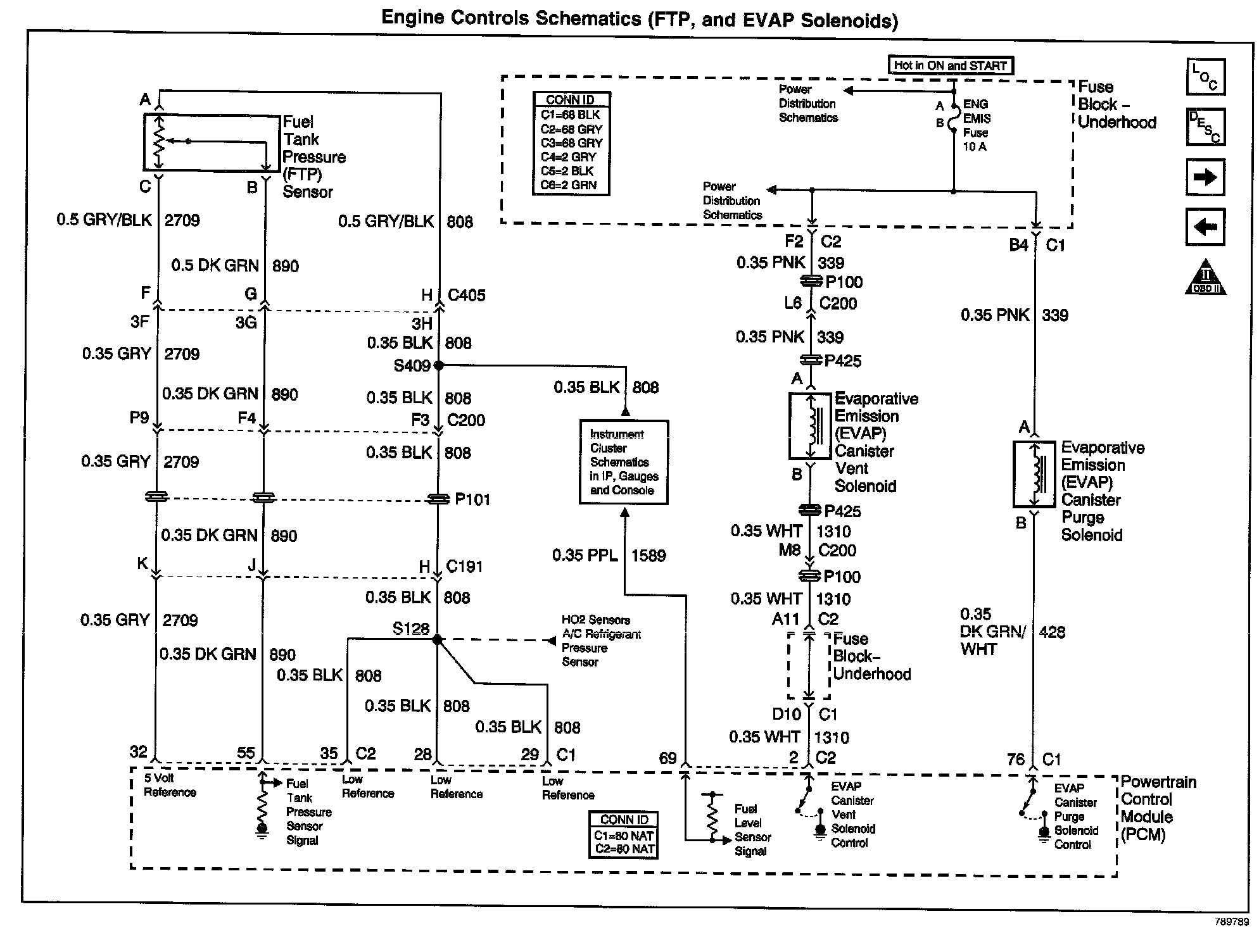

Engine Controls Schematics: FTP, And EVAP Solenoids:
