Heating and Air Conditioning

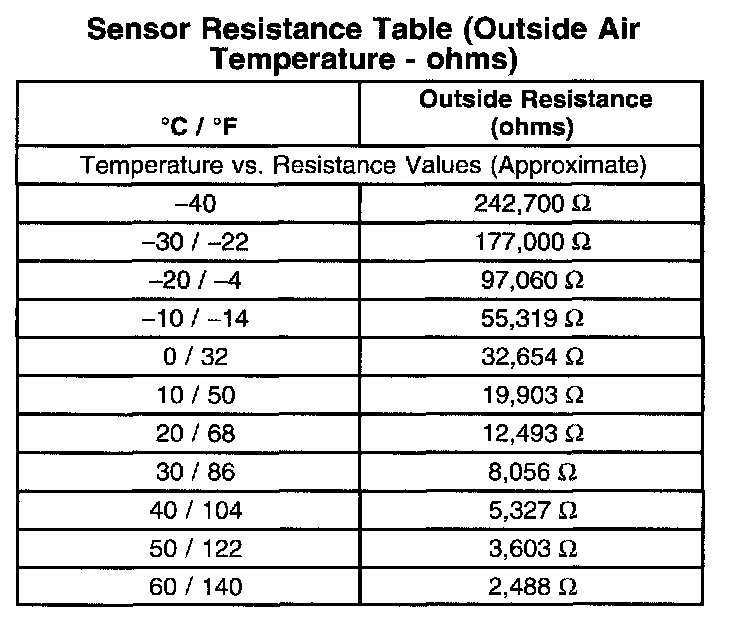

Sensor Resistance Table (Outside Air Temperature - Ohms) - HVAC Systems - Automatic:

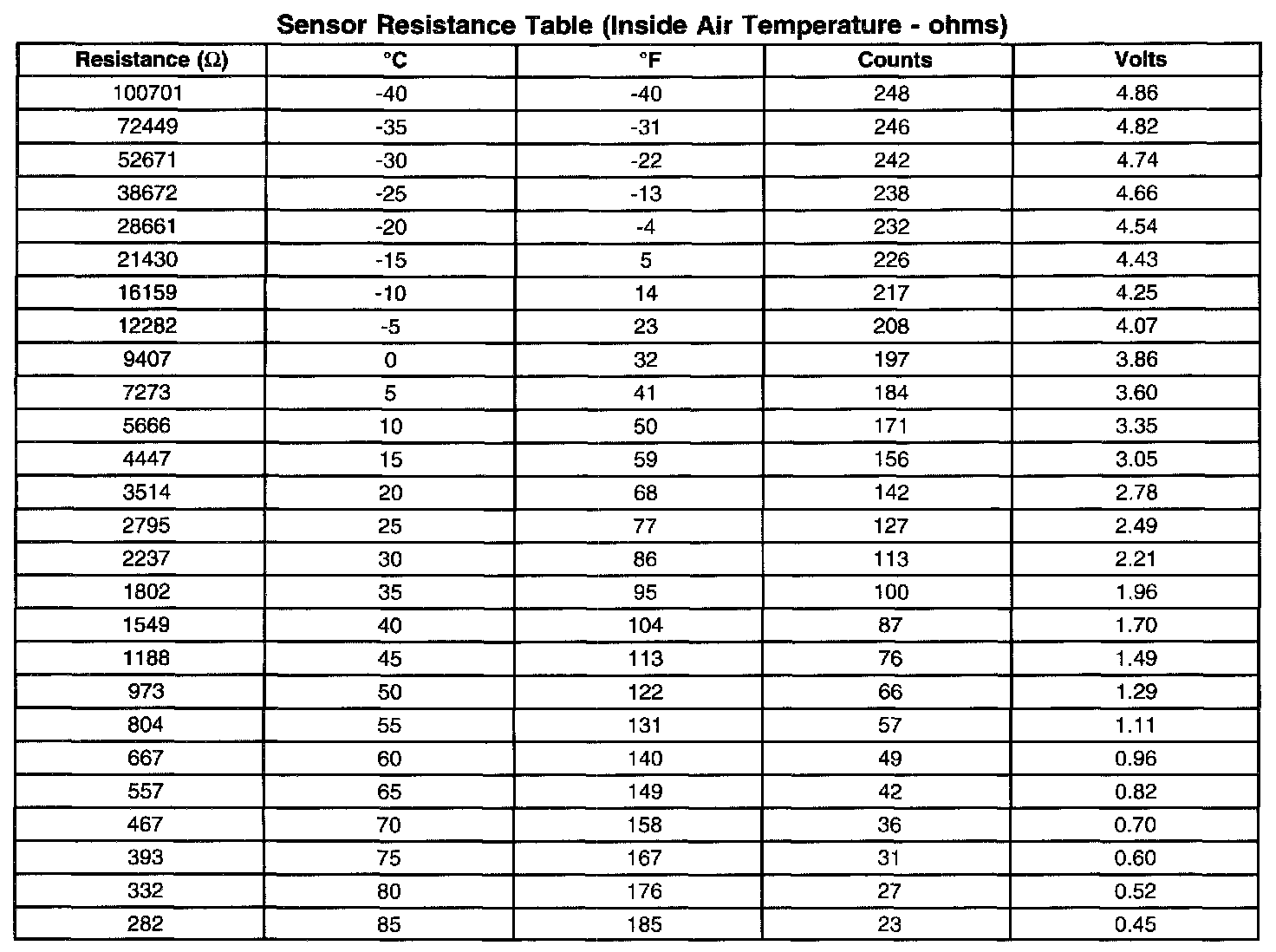

Sensor Resistance Table (Inside Air Temperature - Ohms) - HVAC Systems - Automatic:
