Starting and Charging Systems

Starting And Charging Schematics: Starting System-Early Production:

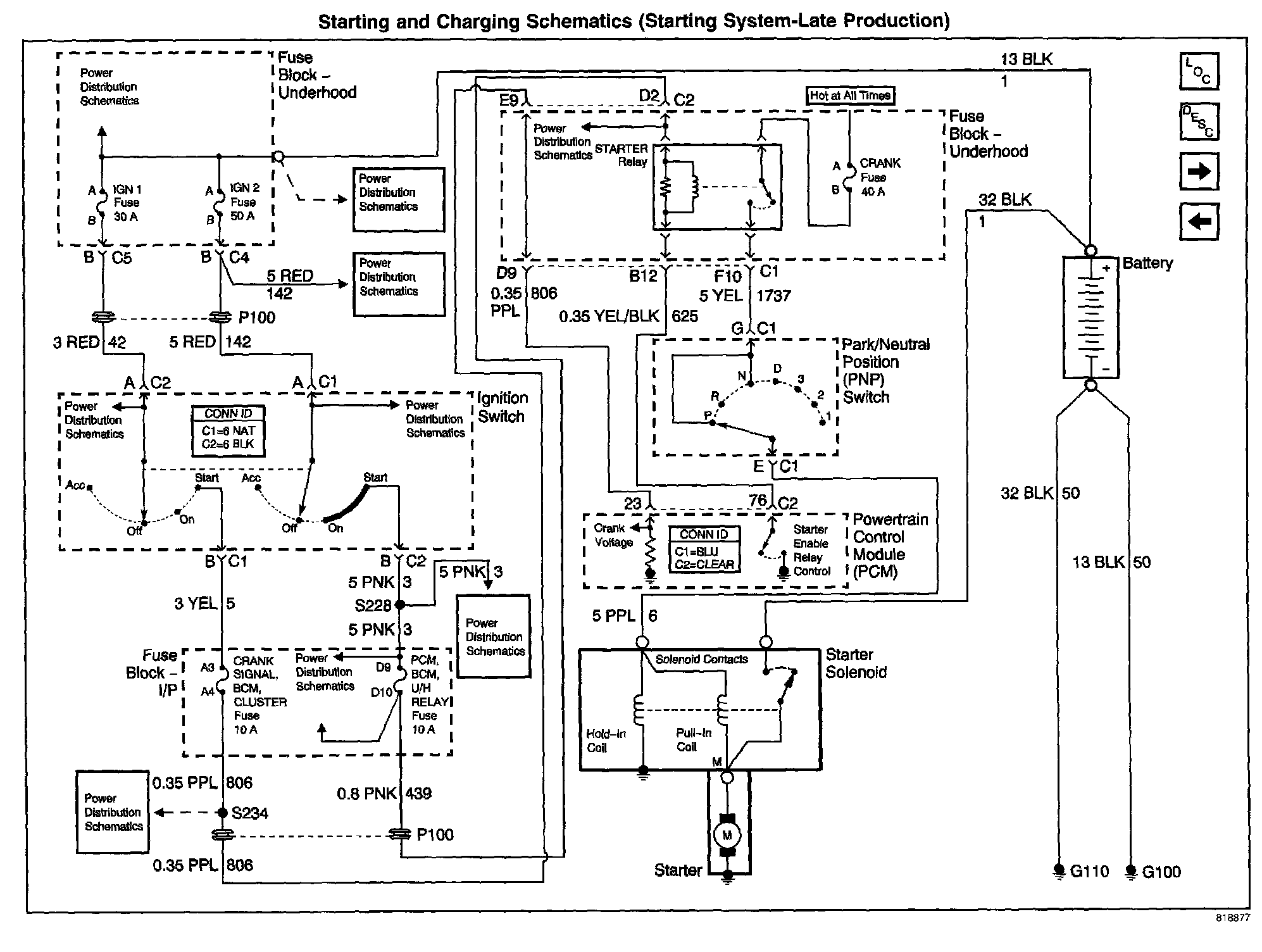

Starting And Charging Schematics: Starting System-Late Production:

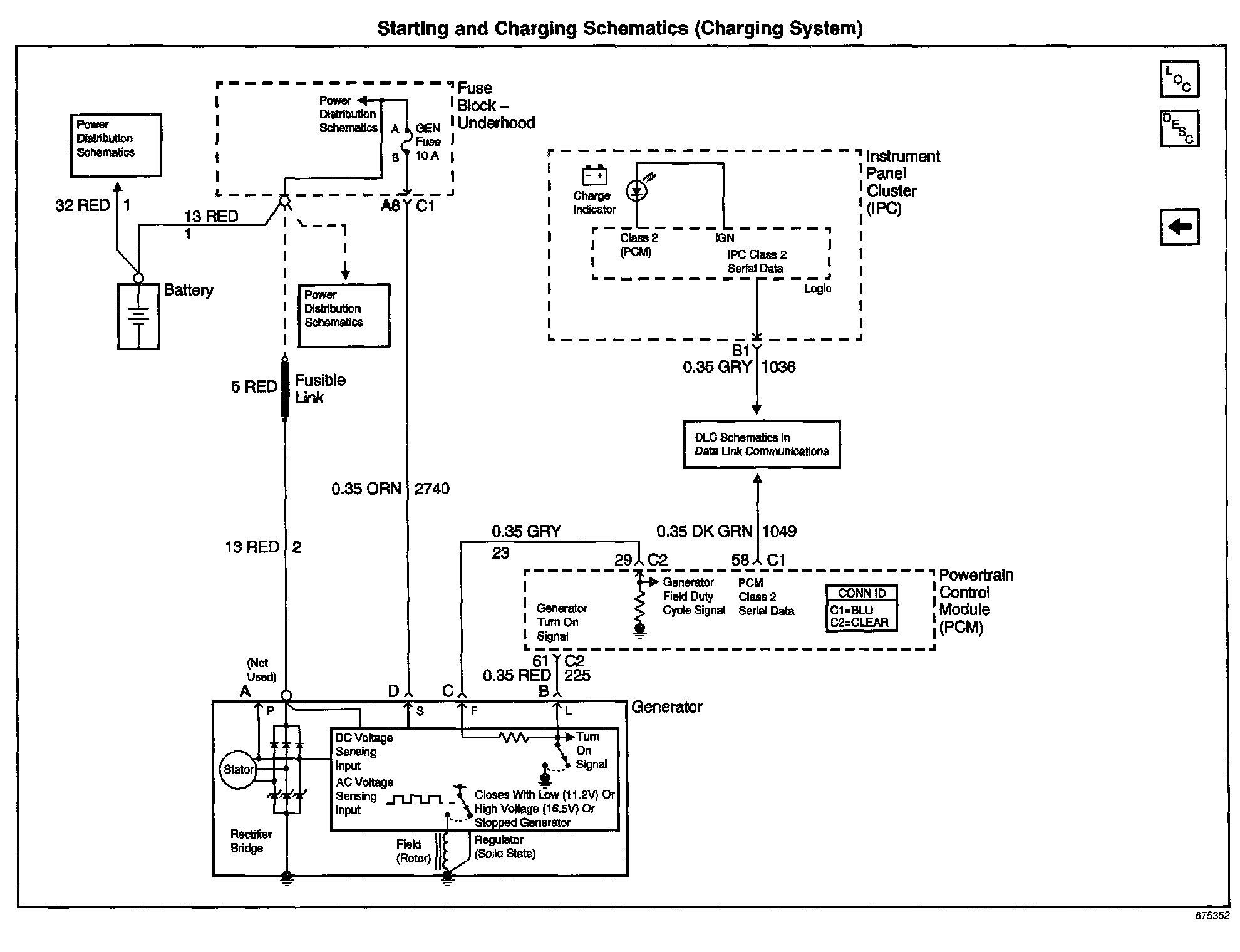

Starting And Charging Schematics: Charging System:
