Automatic Transmission/Transaxle: Locations
Automatic Transmission Electronic Component Views

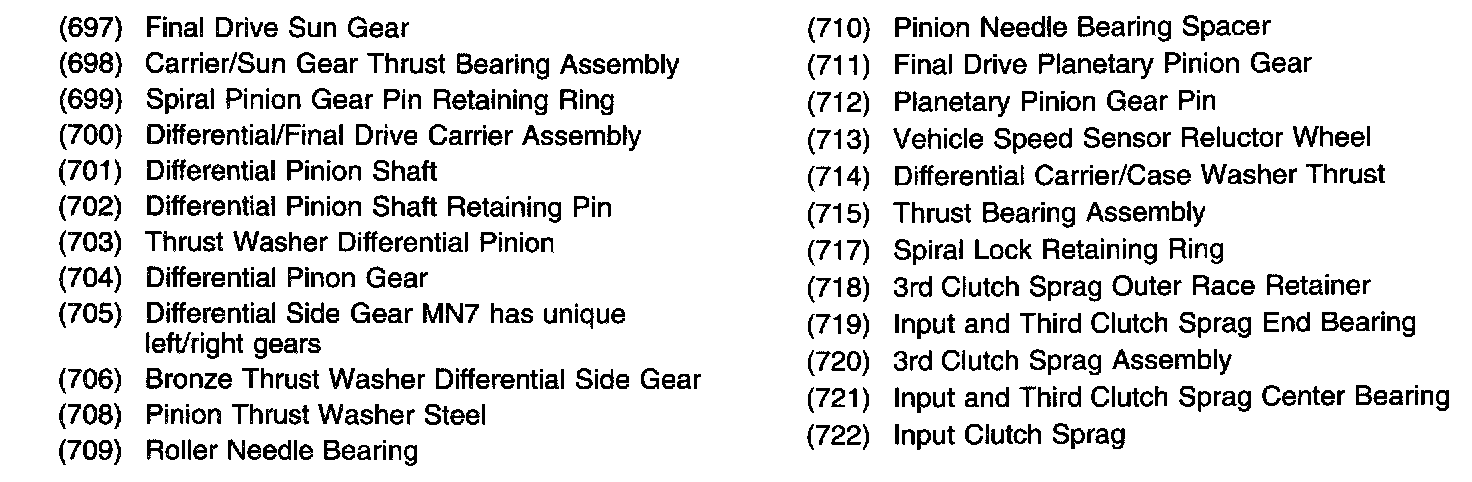

Internal Electronic Component Locations
Component Locator

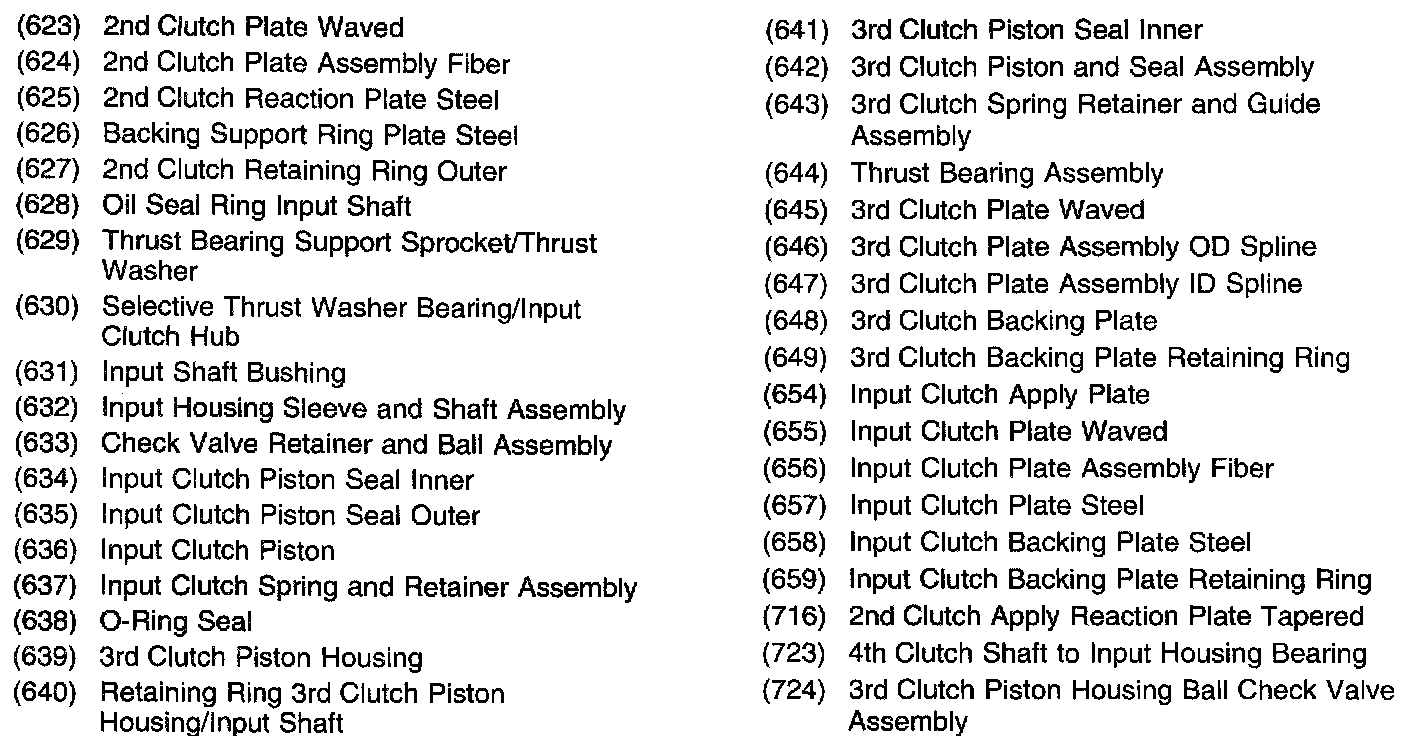

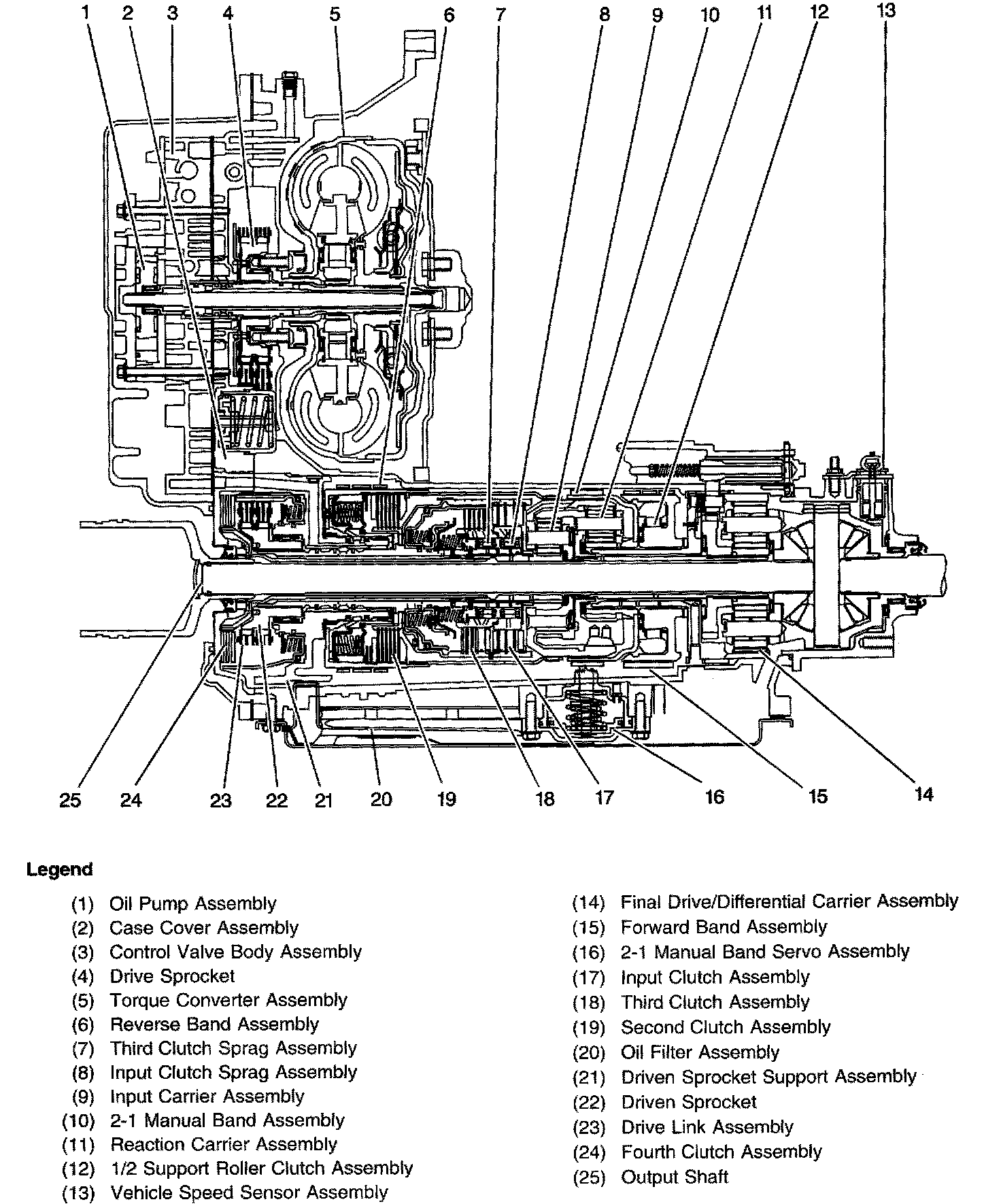

Internal Components (1 of 2)
Internal Components (2 of 2)

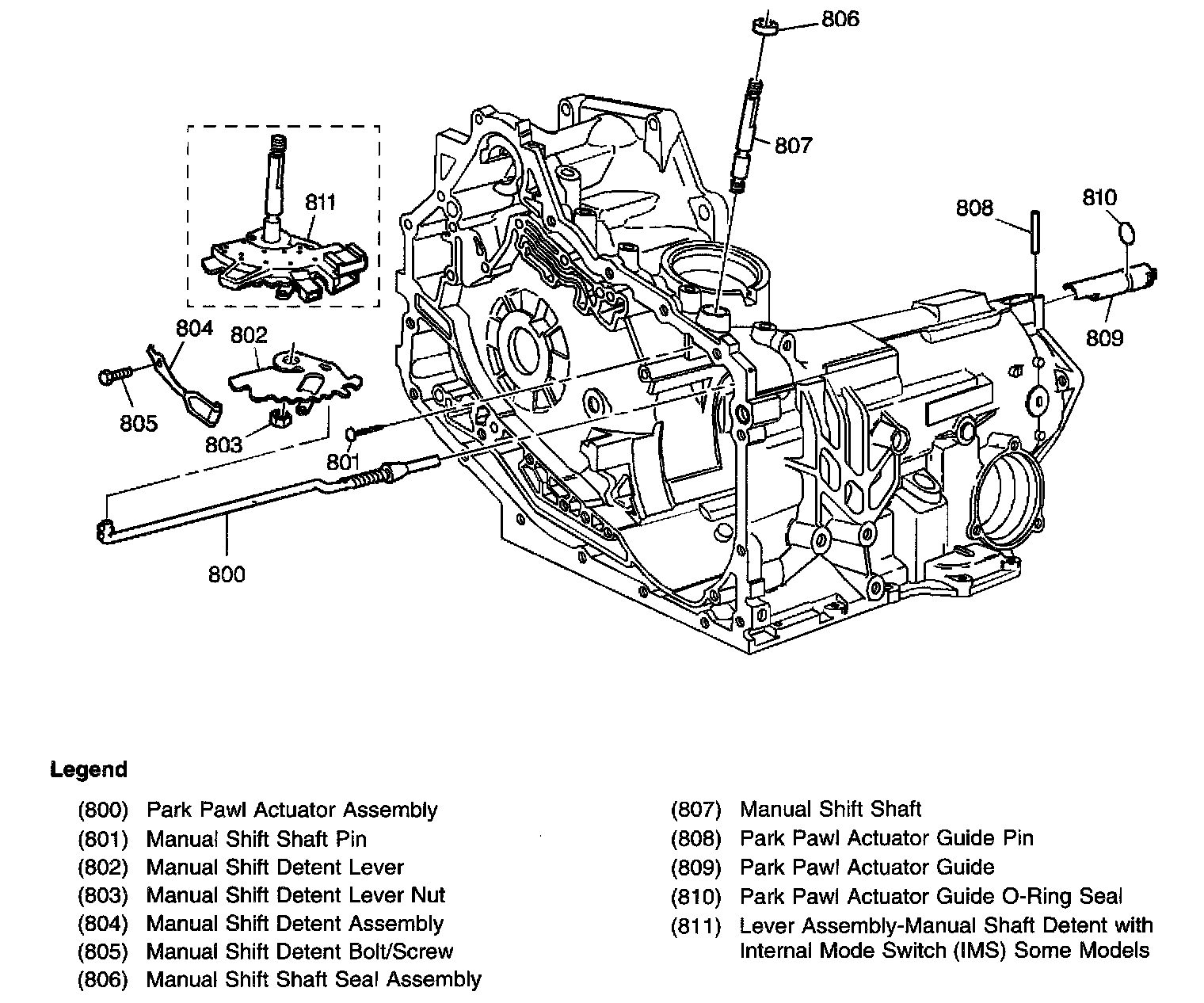

Manual Shaft and Parking System Assembly
Component Location
Transmission Major Components

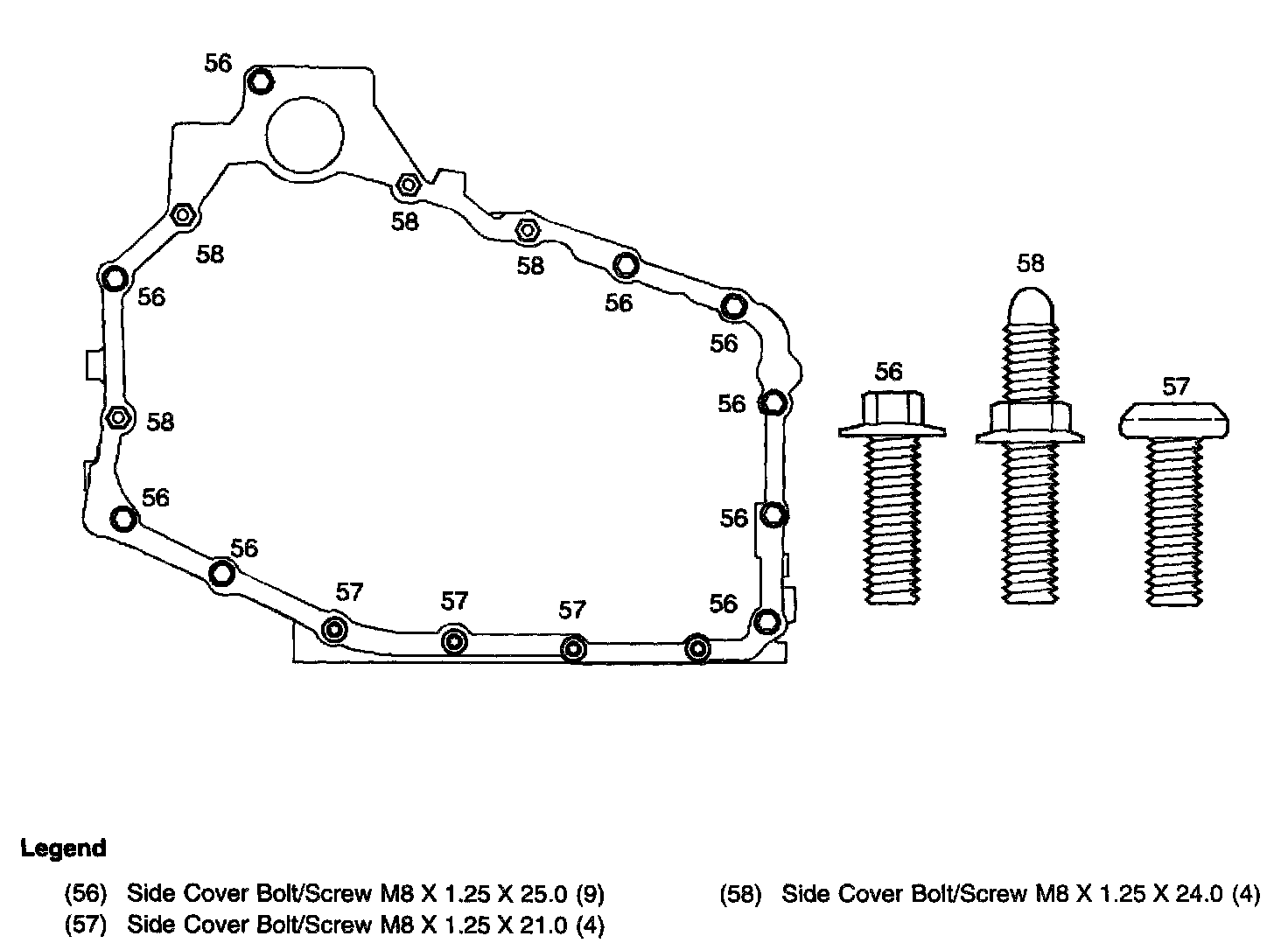

Case Side Cover Bolts
Oil Pump Bolts

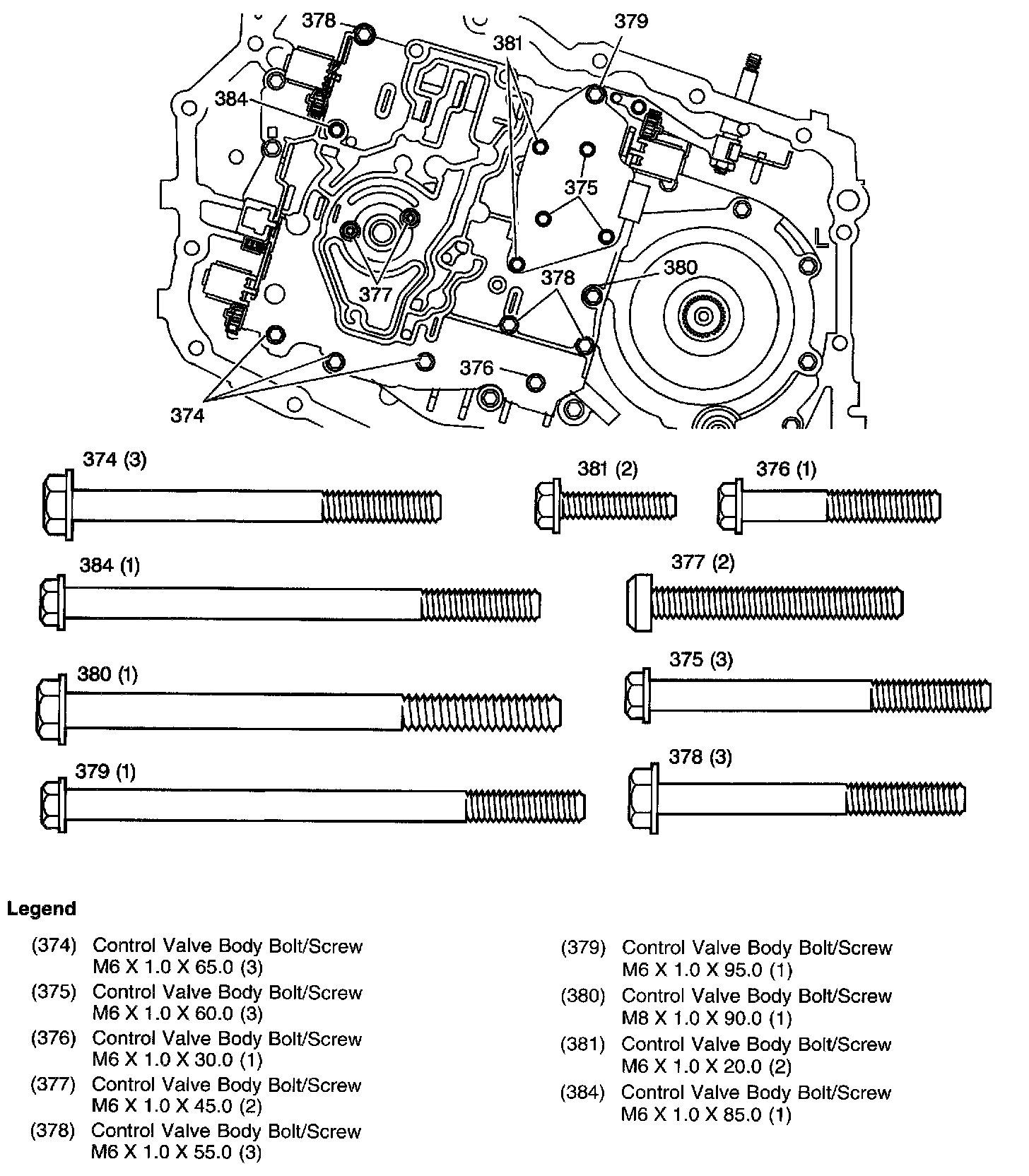

Control Valve Body Bolts
Case Cover Bolts
Bottom Pan, Accumulator Cover and Manual 2-1 Band Servo Cover Bolts

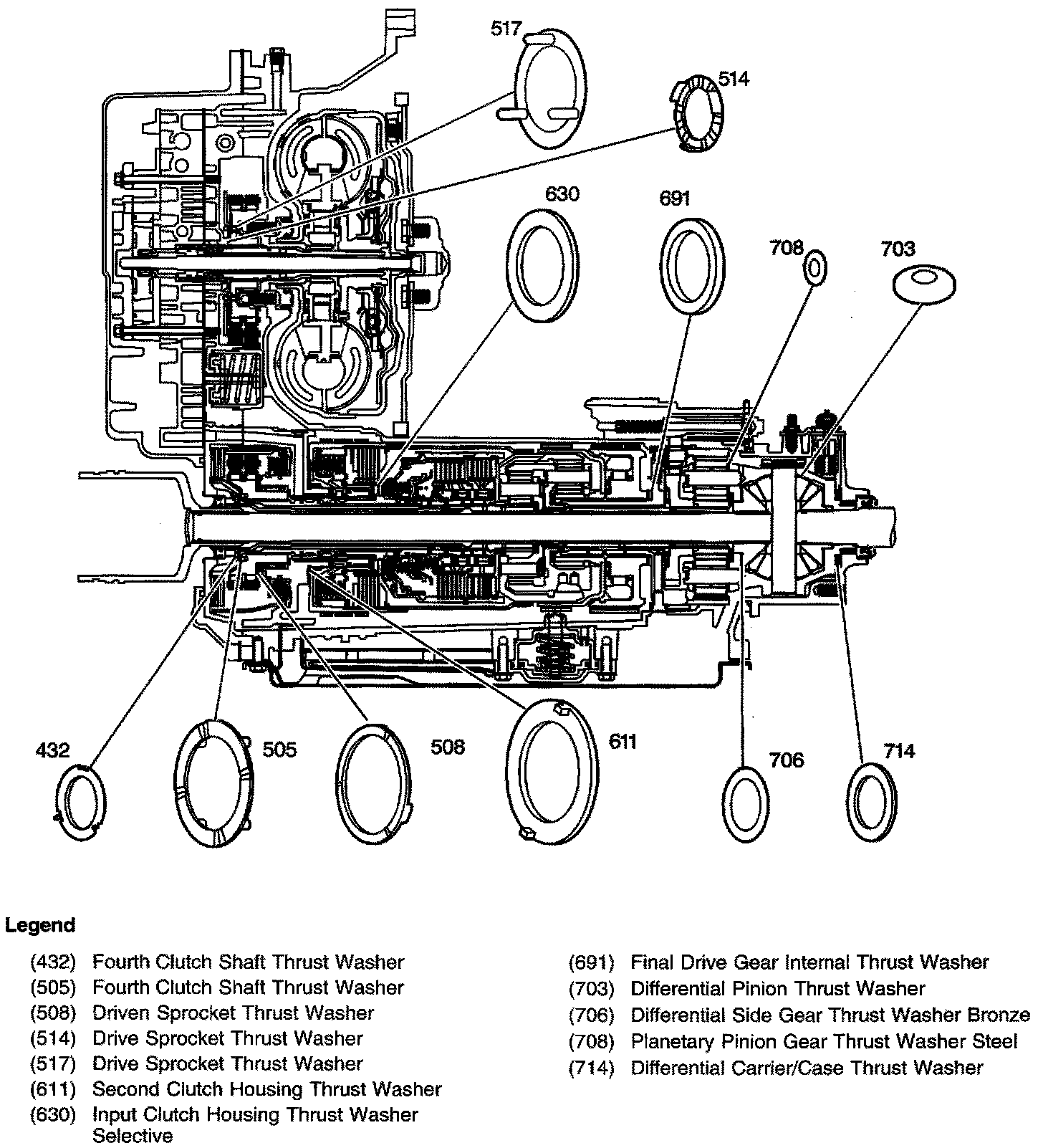

Thrust Washers

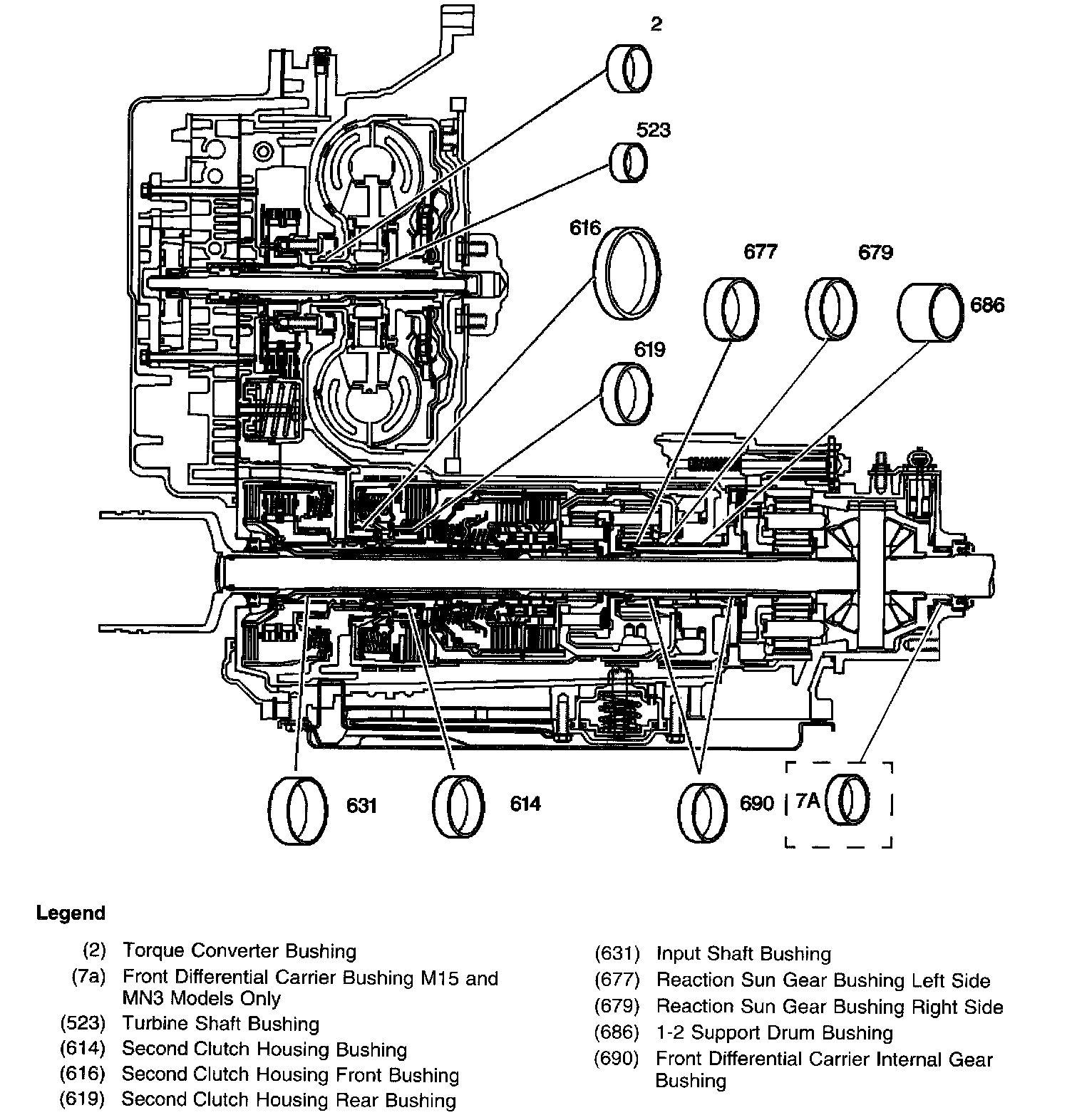

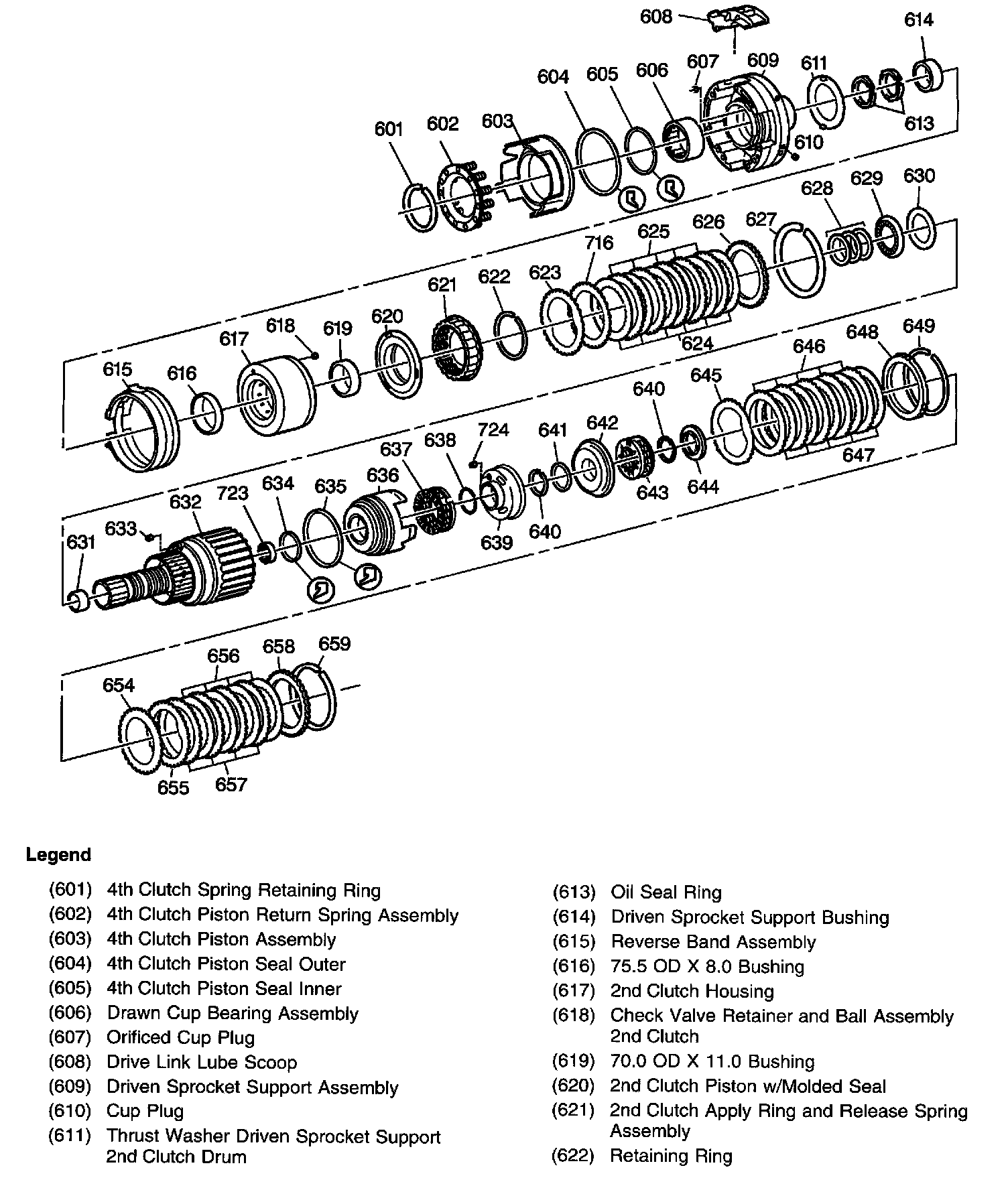

Bushings
Bearings

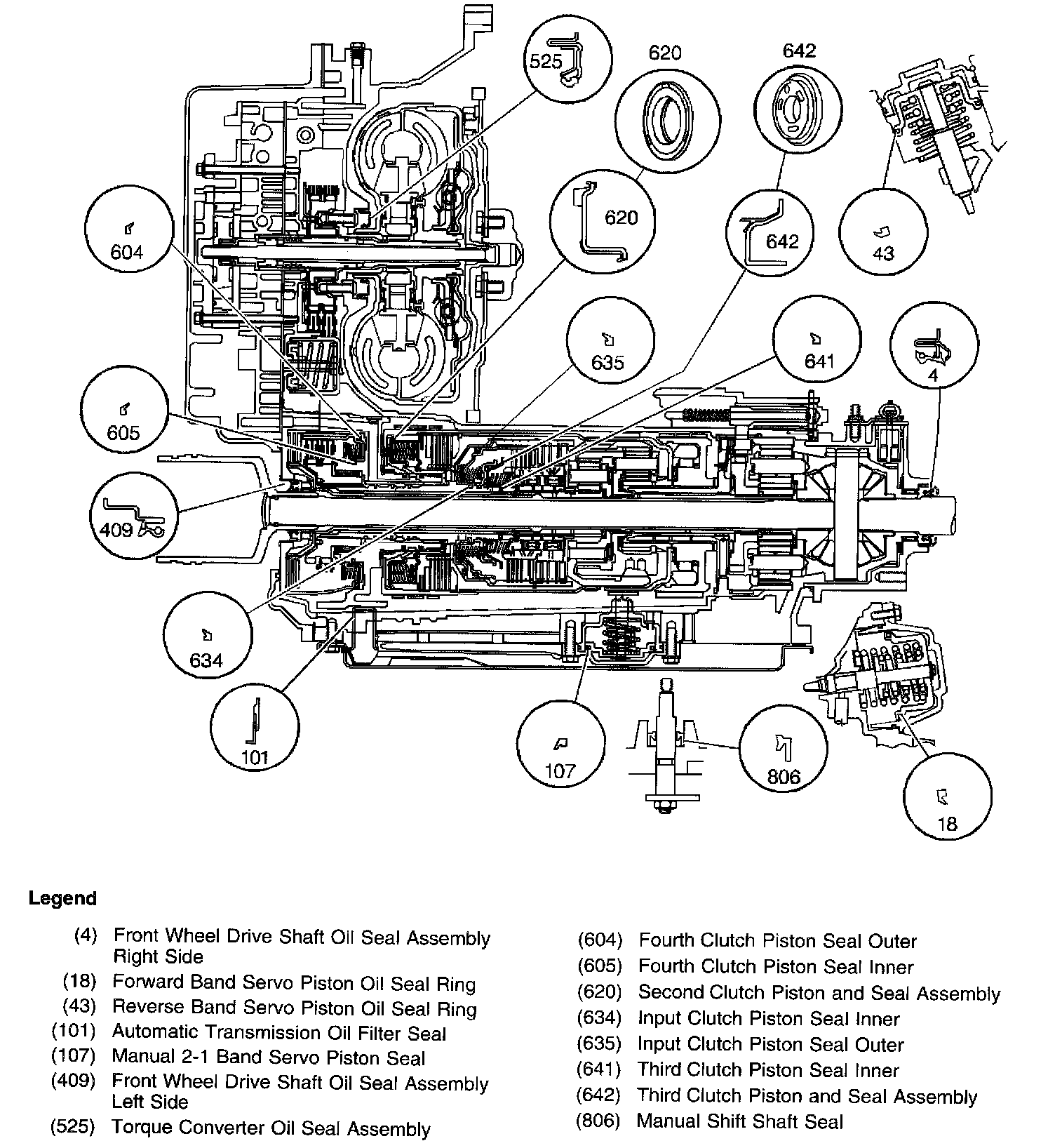

Lip Seals

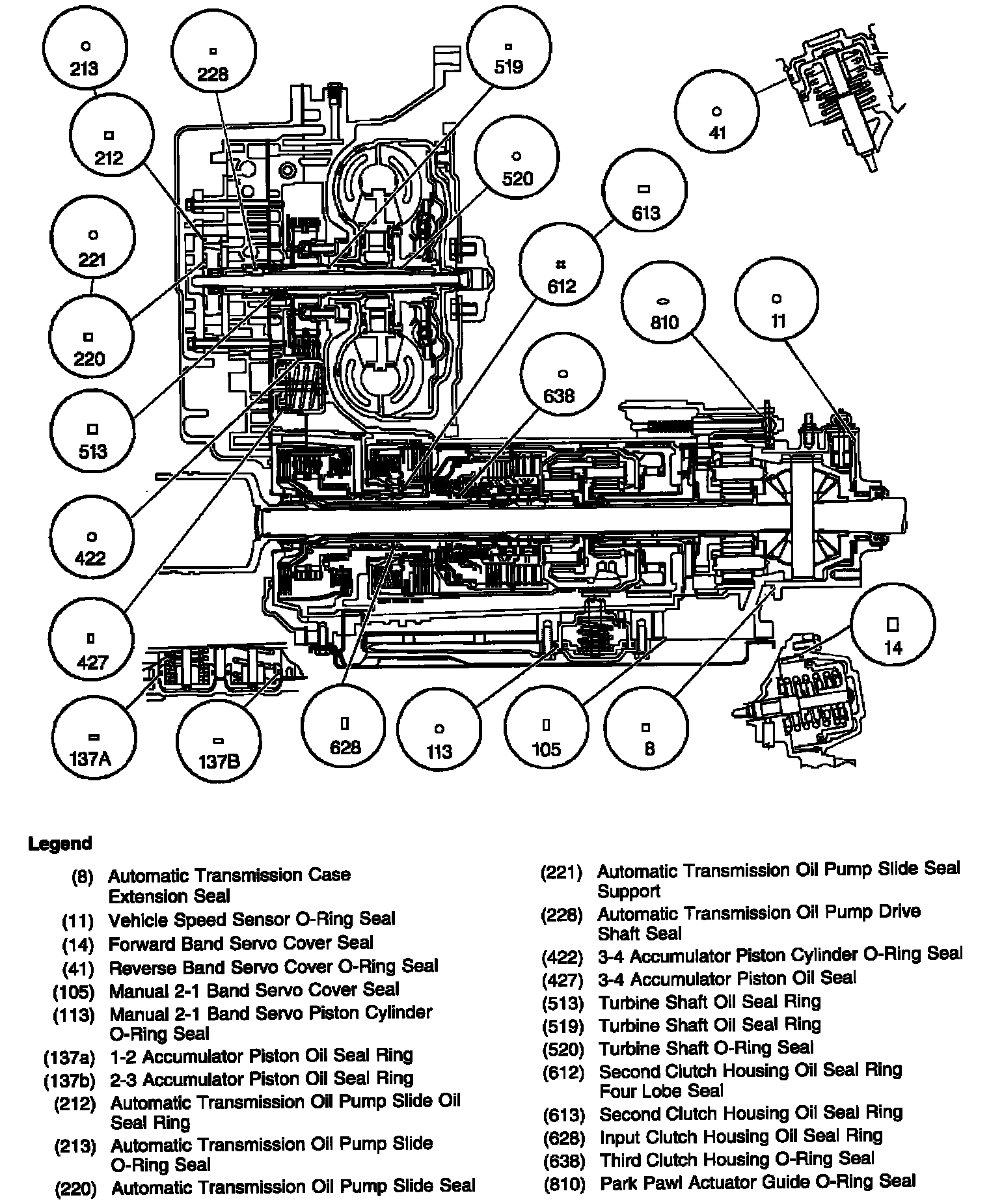

Square and O-Ring Seals

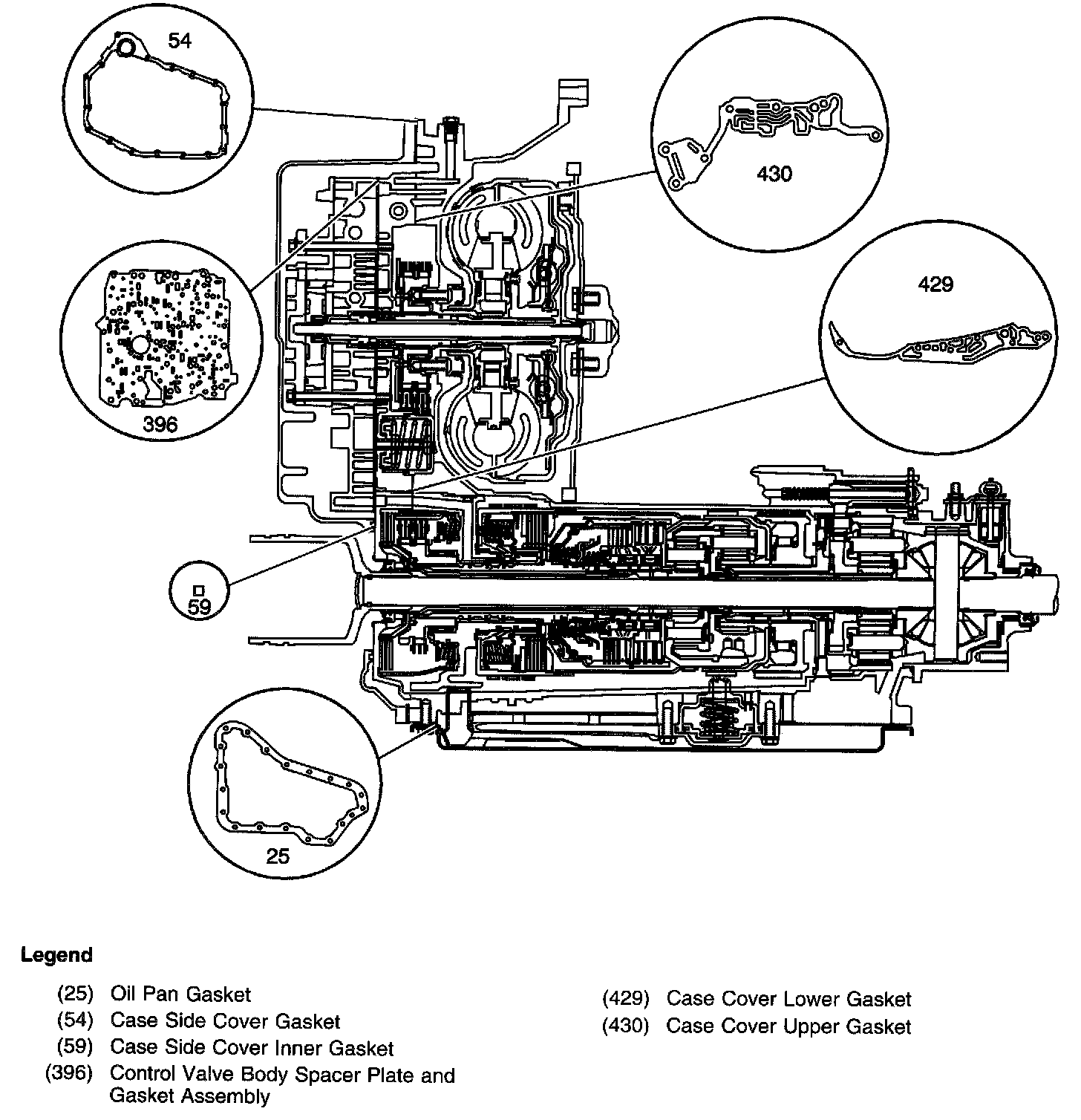

Gaskets
Ball Check Valves
