Pressure, Vacuum and Temperature Specifications

Specifications

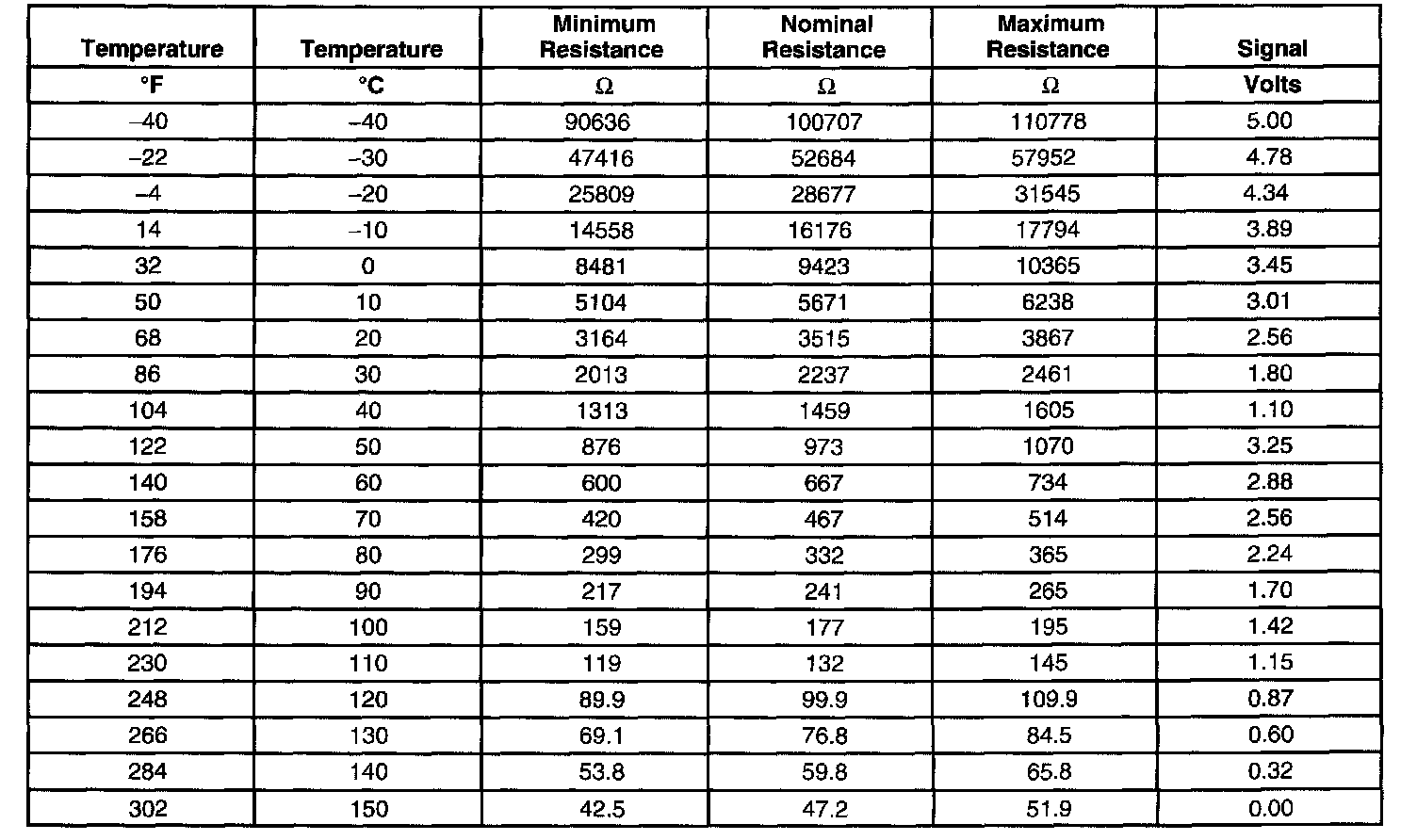

Transmission Fluid Temperature (TFT) Sensor Specifications

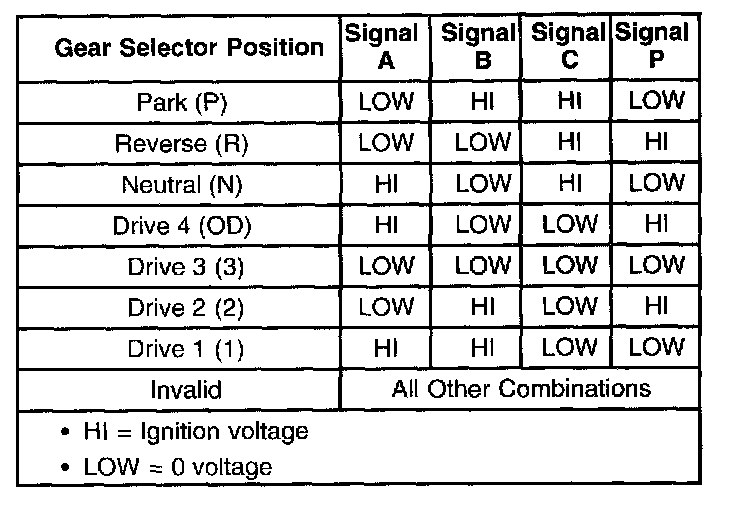

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic





Line Pressure
