Power Door Lock Switch
Power Door Lock Switch

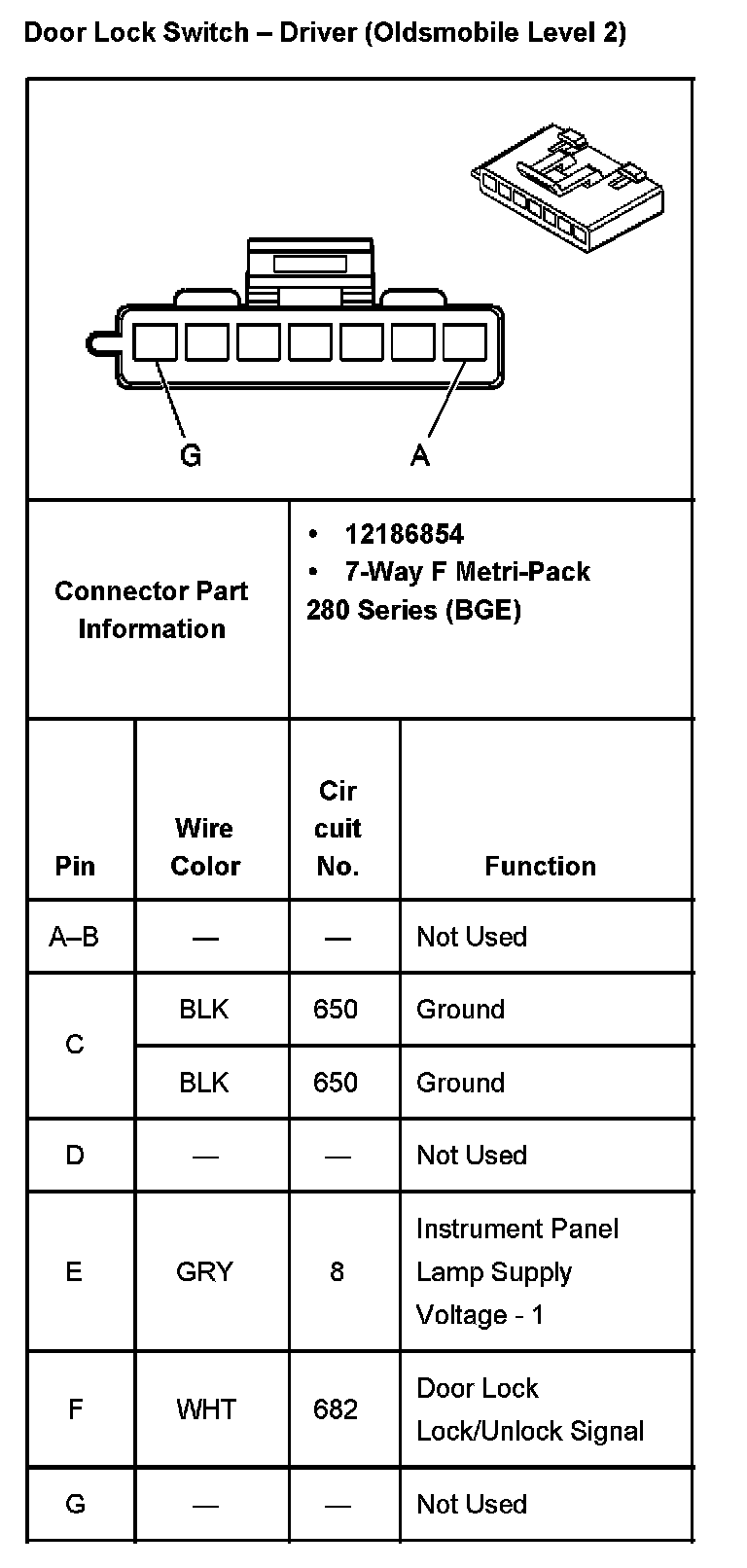

Door Lock Switch - Driver (Oldsmobile Level 2):
Door Lock Switch - Front Passenger:
