Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

Body Control Systems: Locations

Body Control Components:



Left Interior:

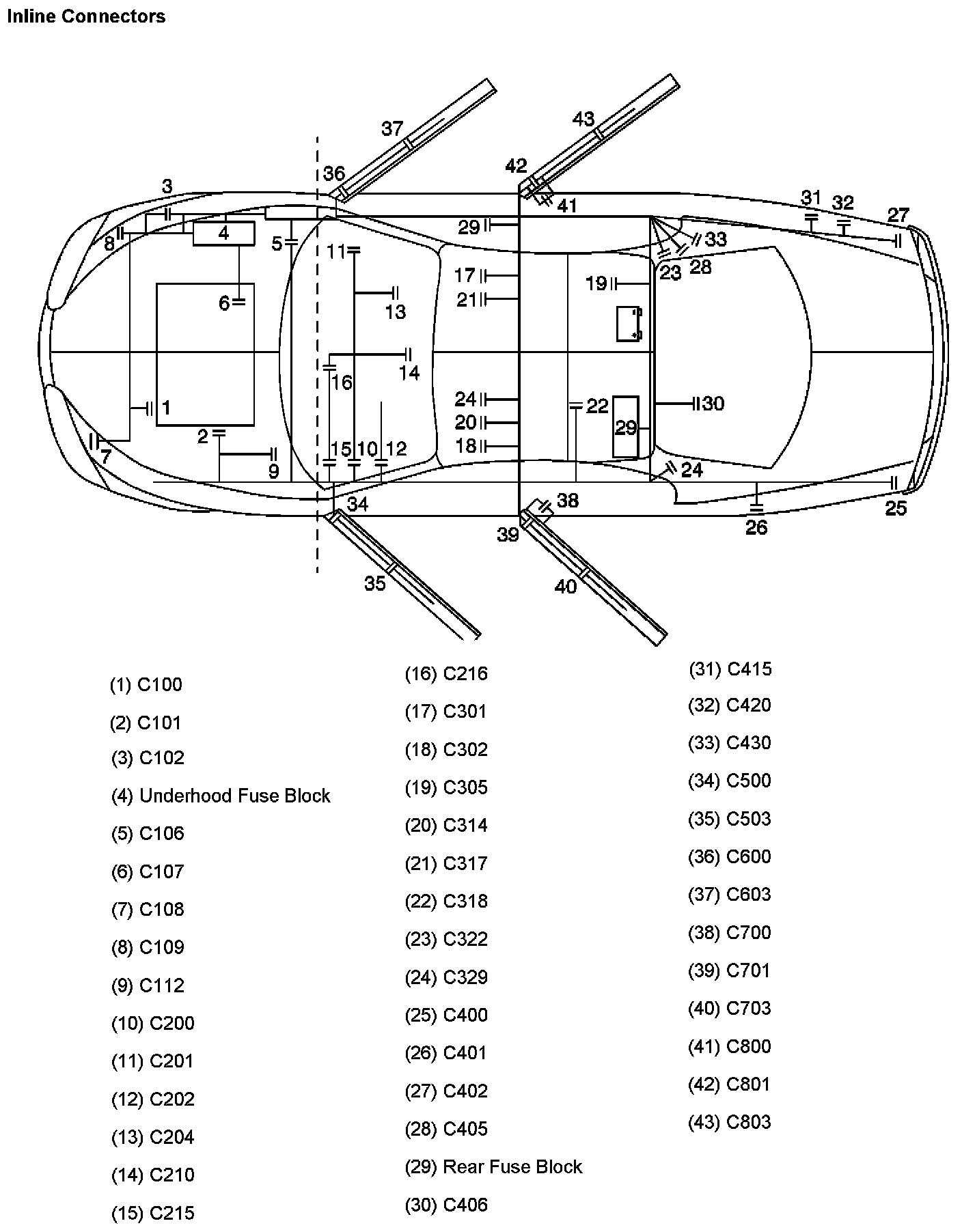

Inline Connectors:

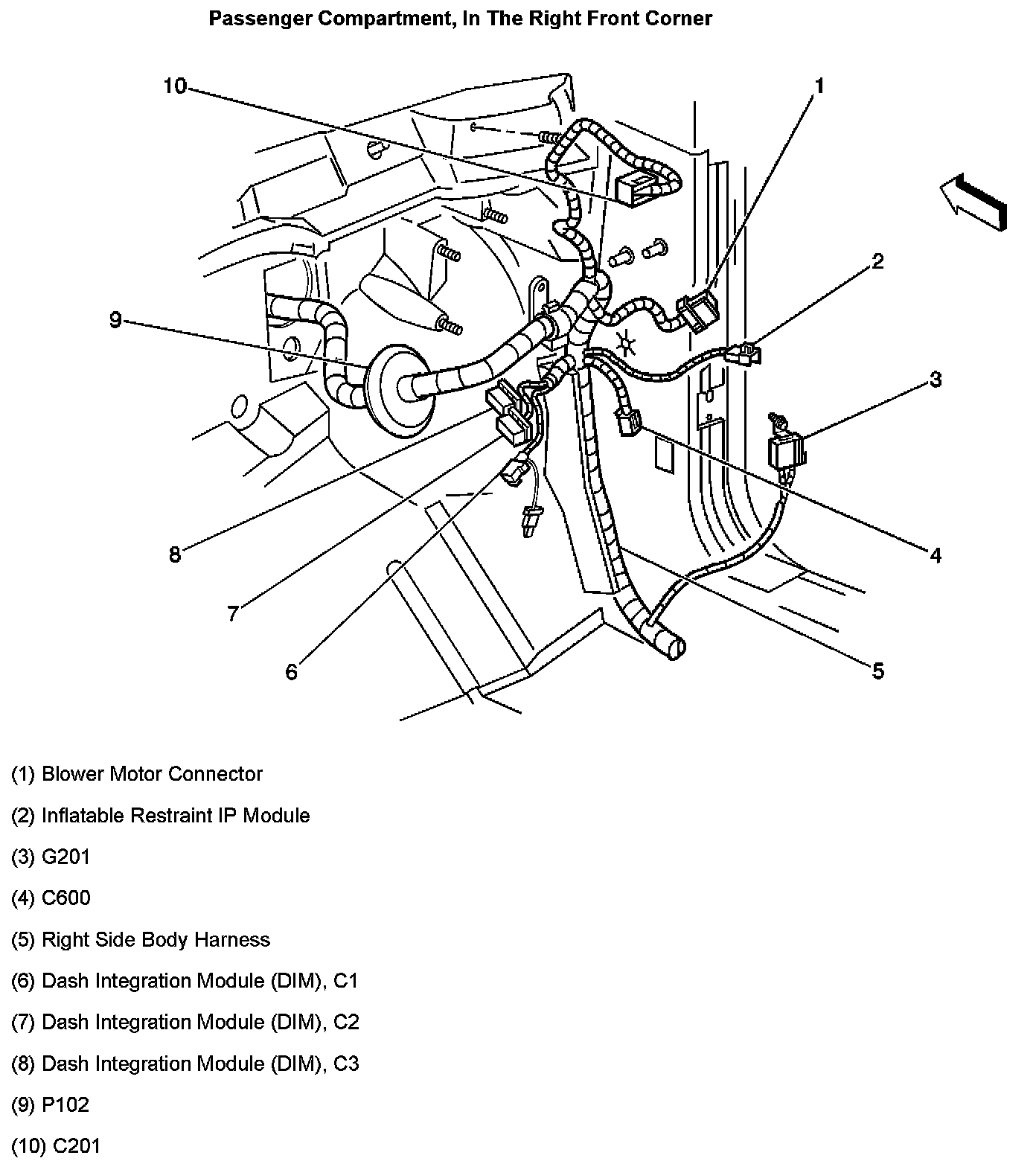

Passenger Compartment, In The Right Front Corner:
