Scan Tool Data List

Memory Seat Module Part 1:



Memory Seat Module Part 2:

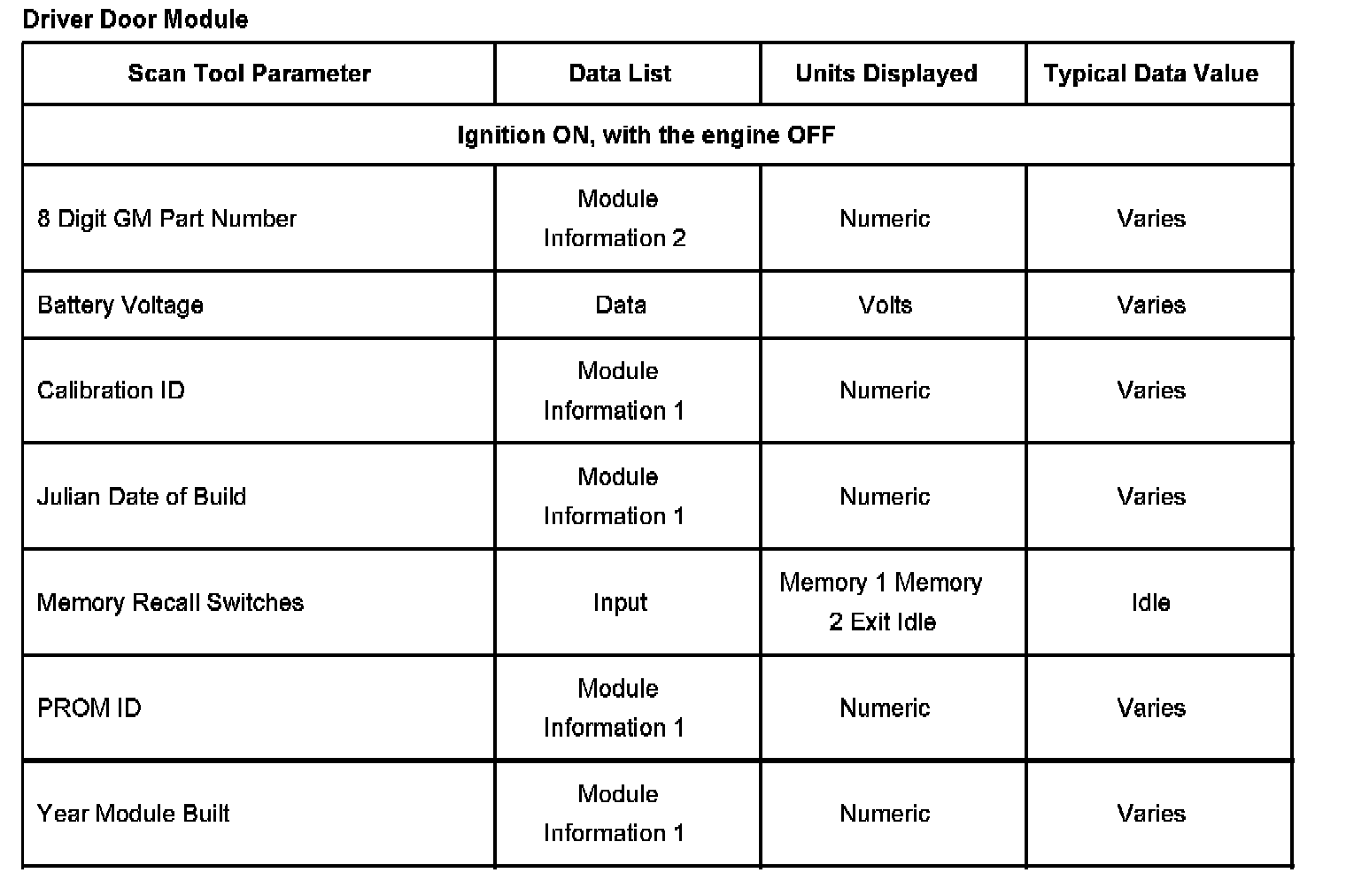

Driver Door Module:

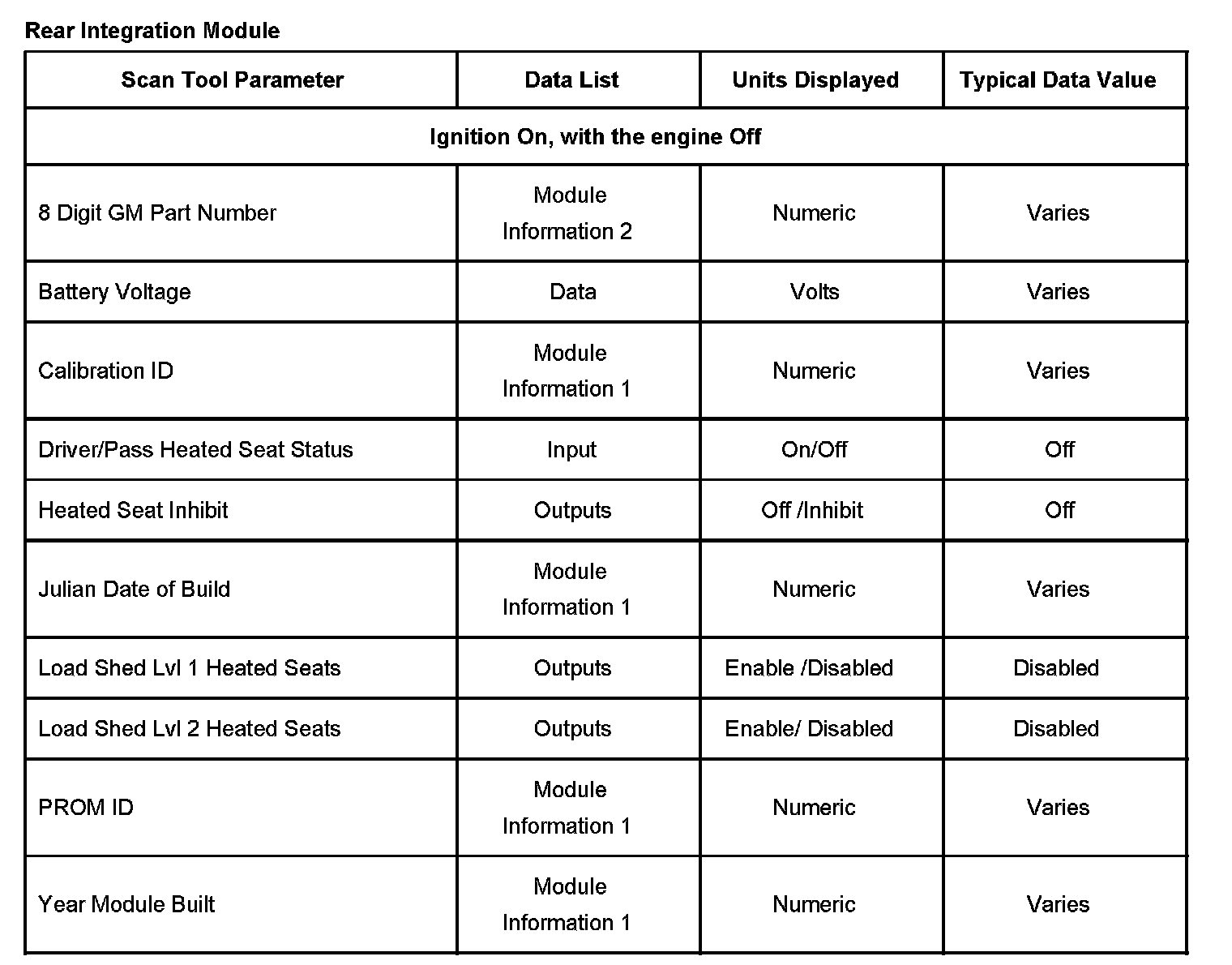

Rear Integration Module:

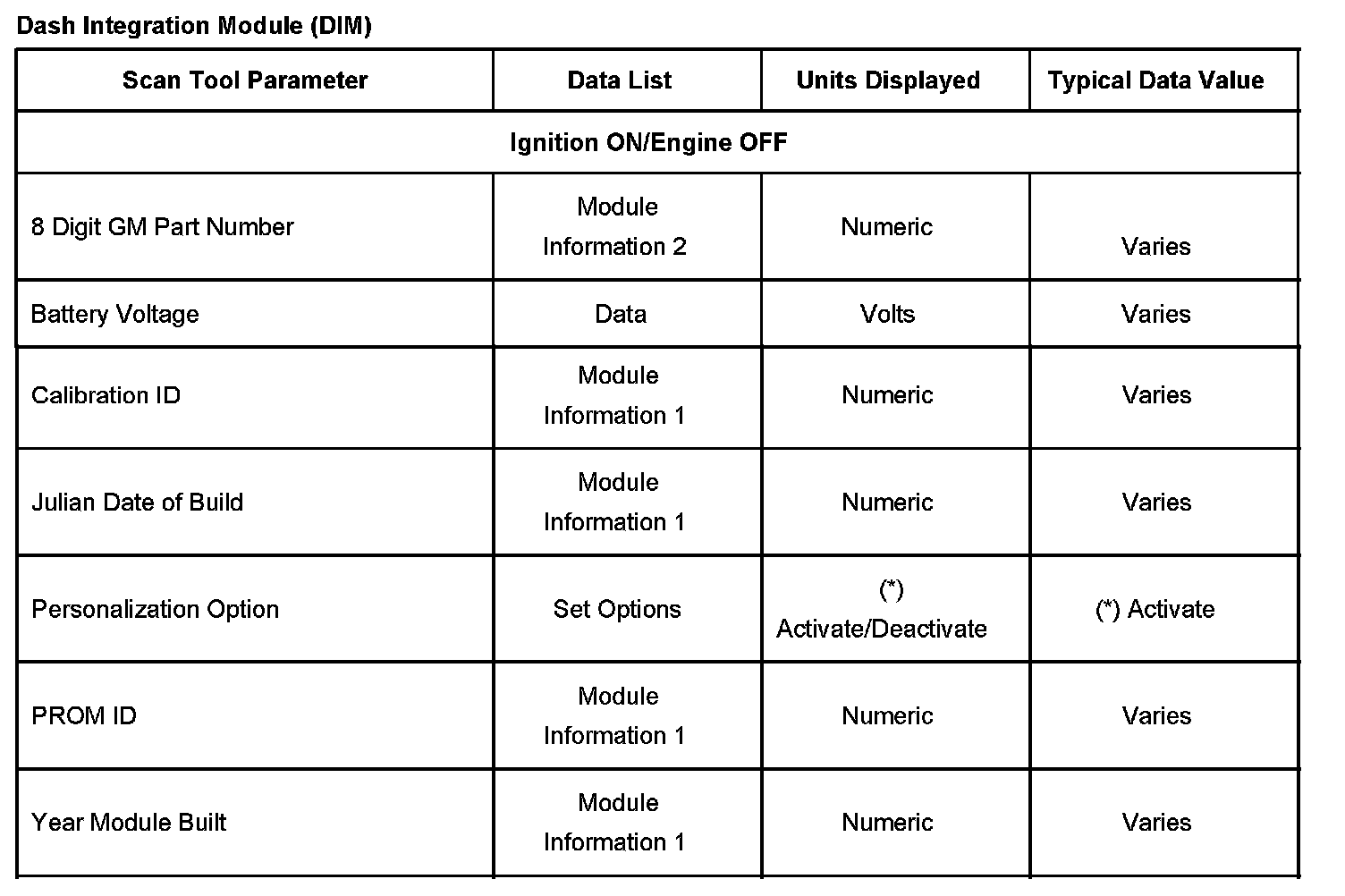

Dash Integration Module (DIM):
