Alarm Module, (Vehicle Antitheft)

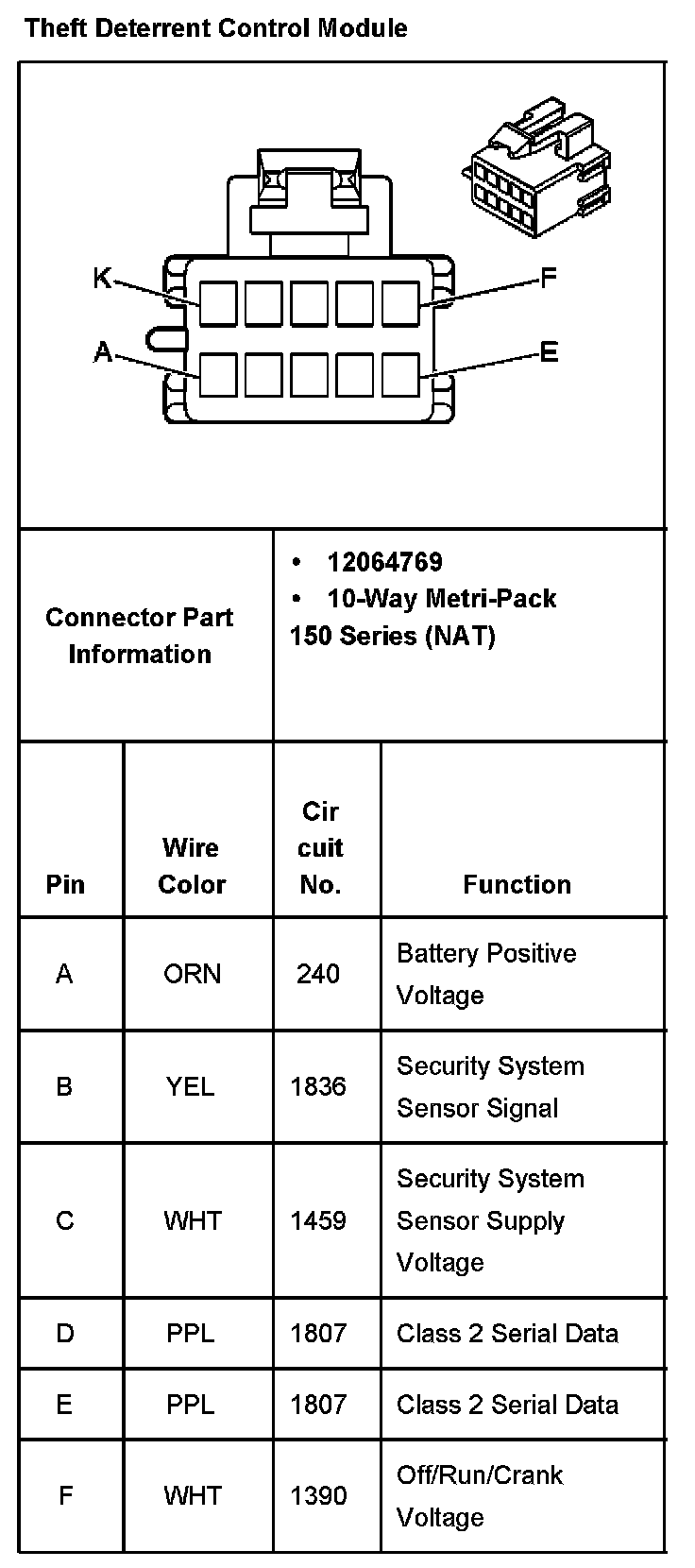

Theft Deterrent Control Module Part 1:

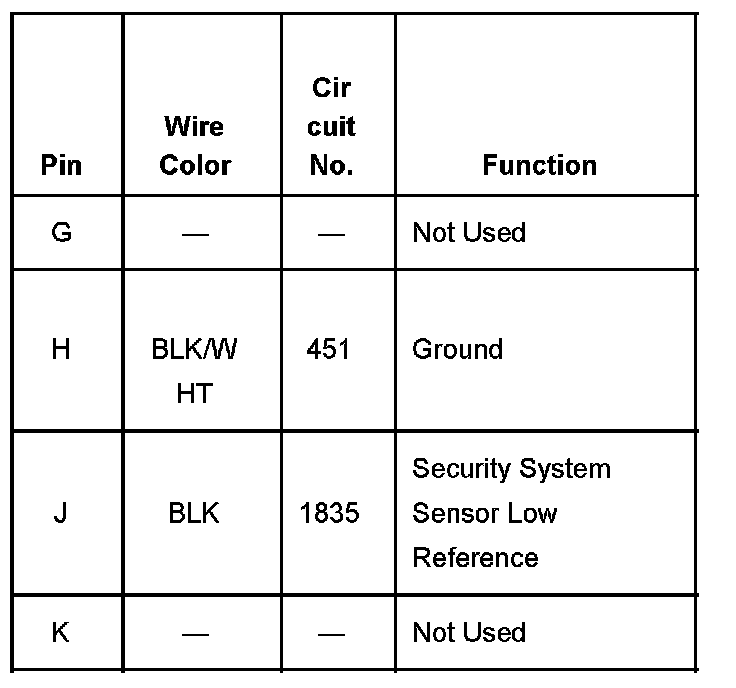

Theft Deterrent Control Module Part 2:

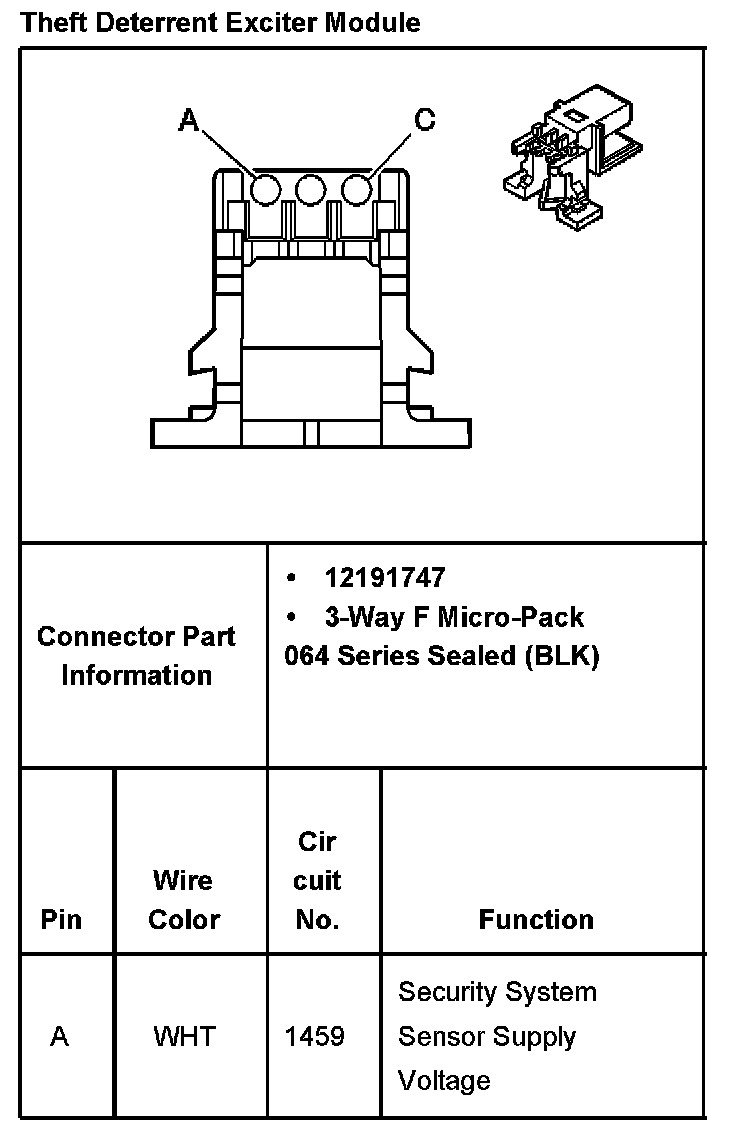

Theft Deterrent Exciter Module Part 1:

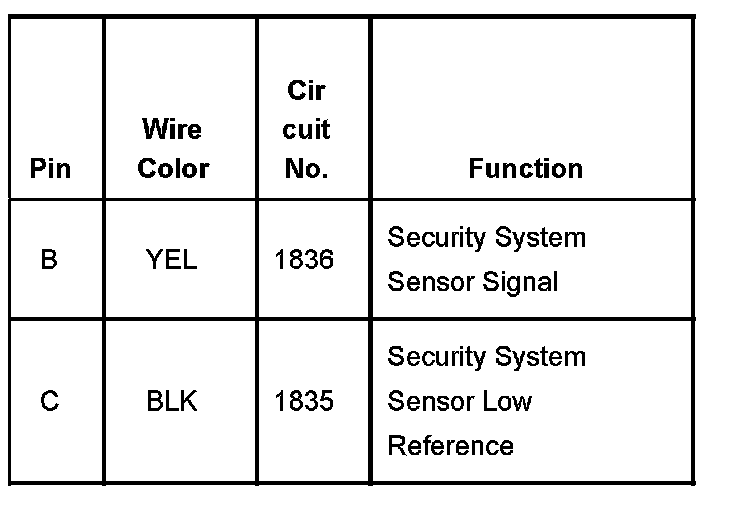

Theft Deterrent Exciter Module Part 2:
