Dash Integration Module (DIM) C1

Dash Integration Module (DIM) C1 Part 1:

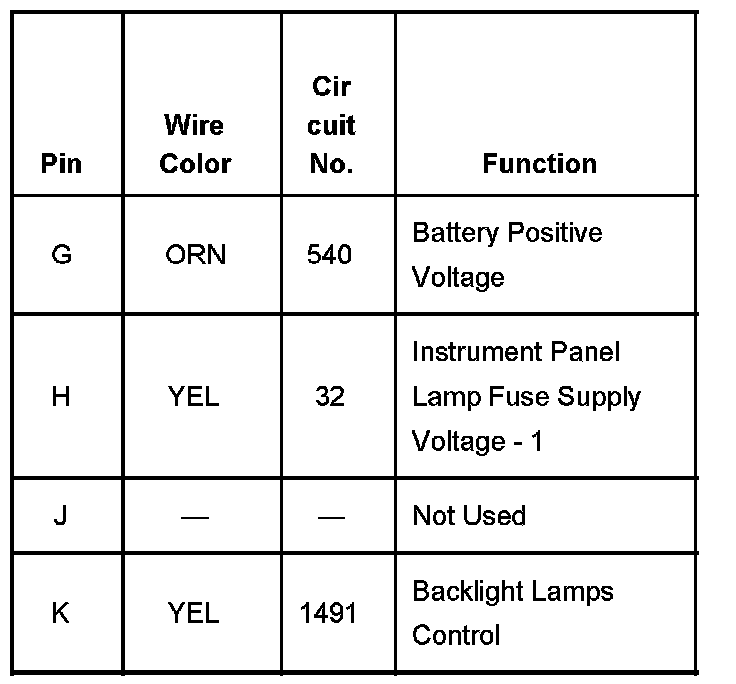

Dash Integration Module (DIM) C1 Part 2:
