Powertrain Control Module C1

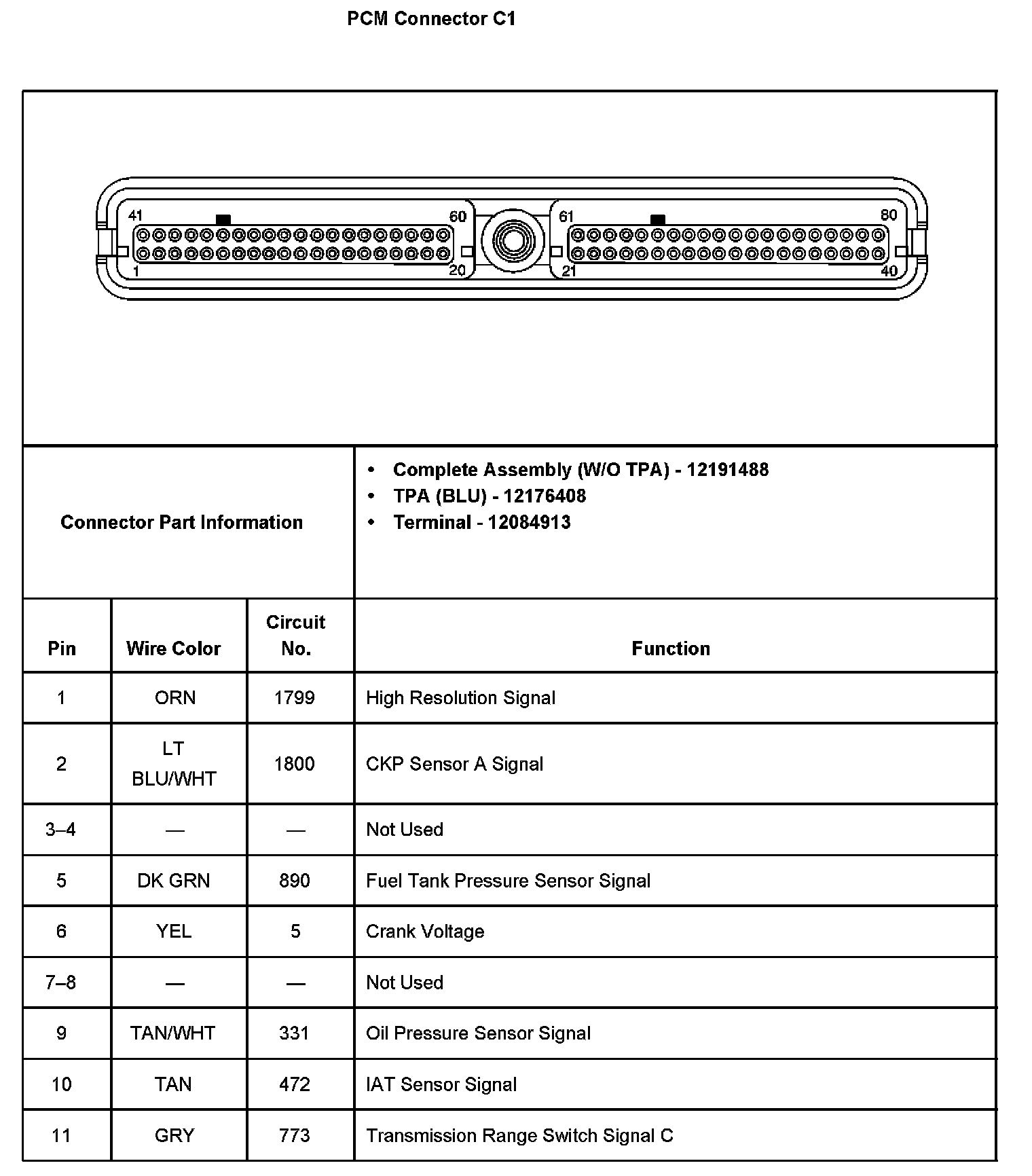

PCM Connector C1 Part 1:

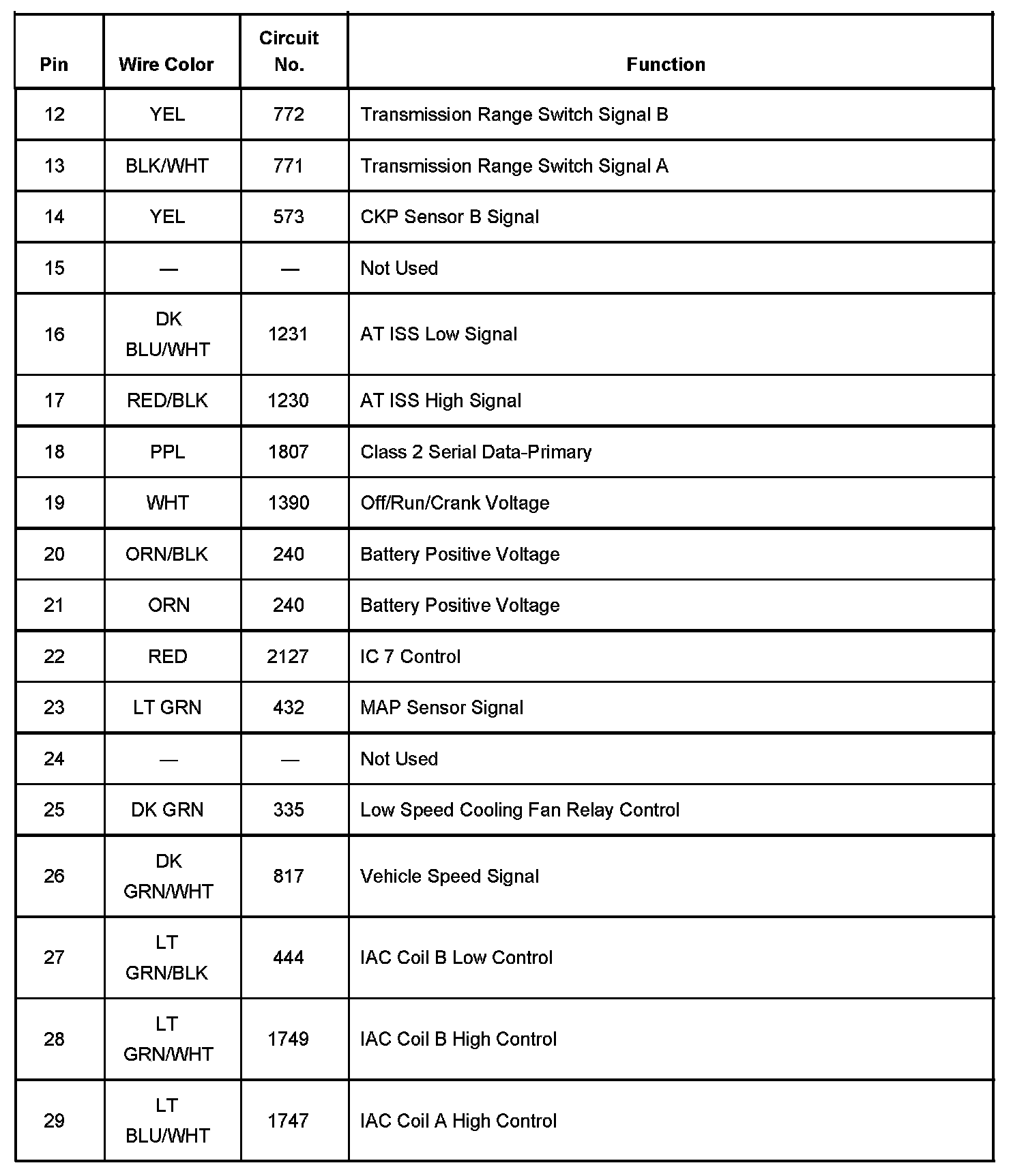

PCM Connector C1 Part 2:



PCM Connector C1 Part 3:

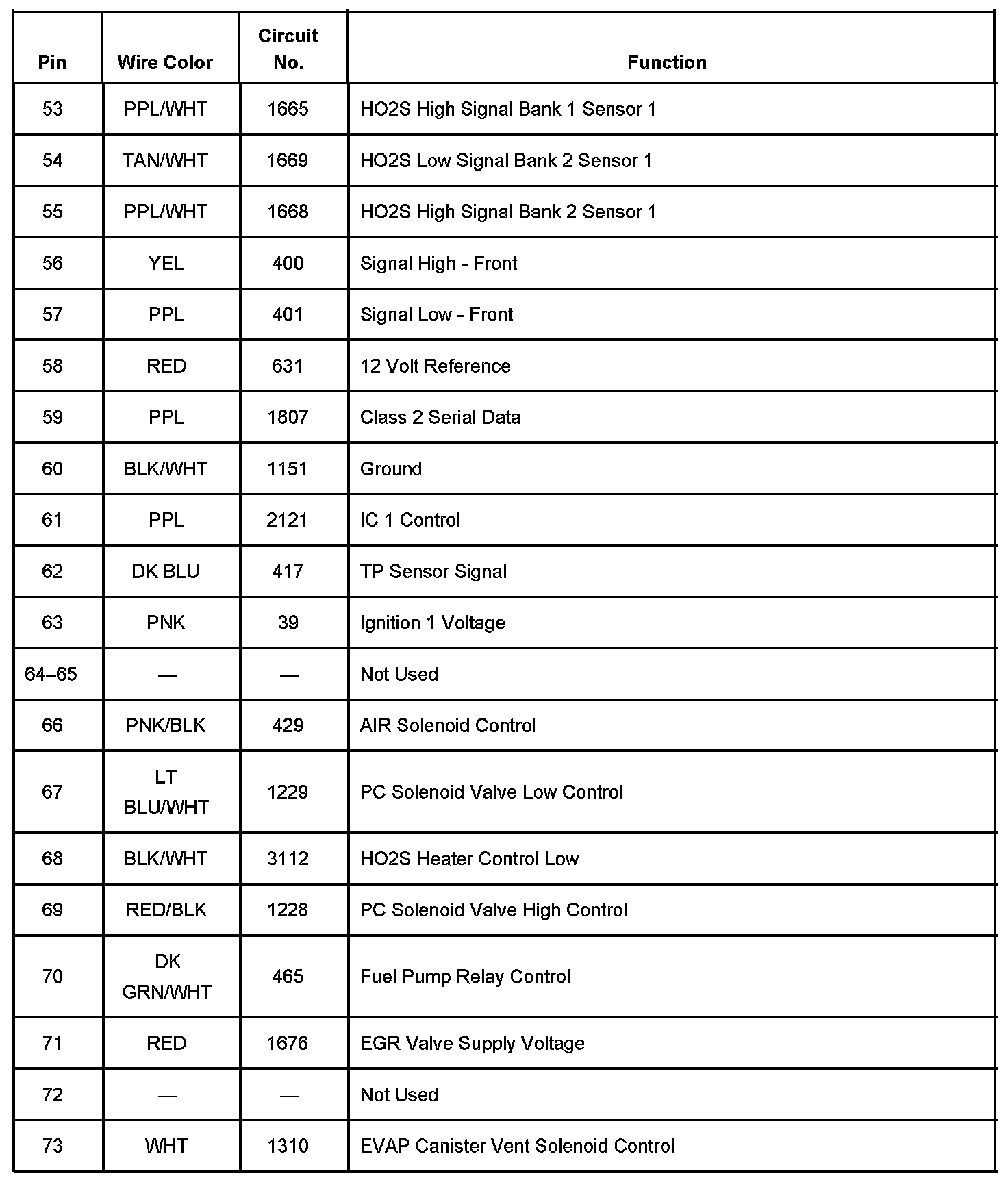

PCM Connector C1 Part 4:

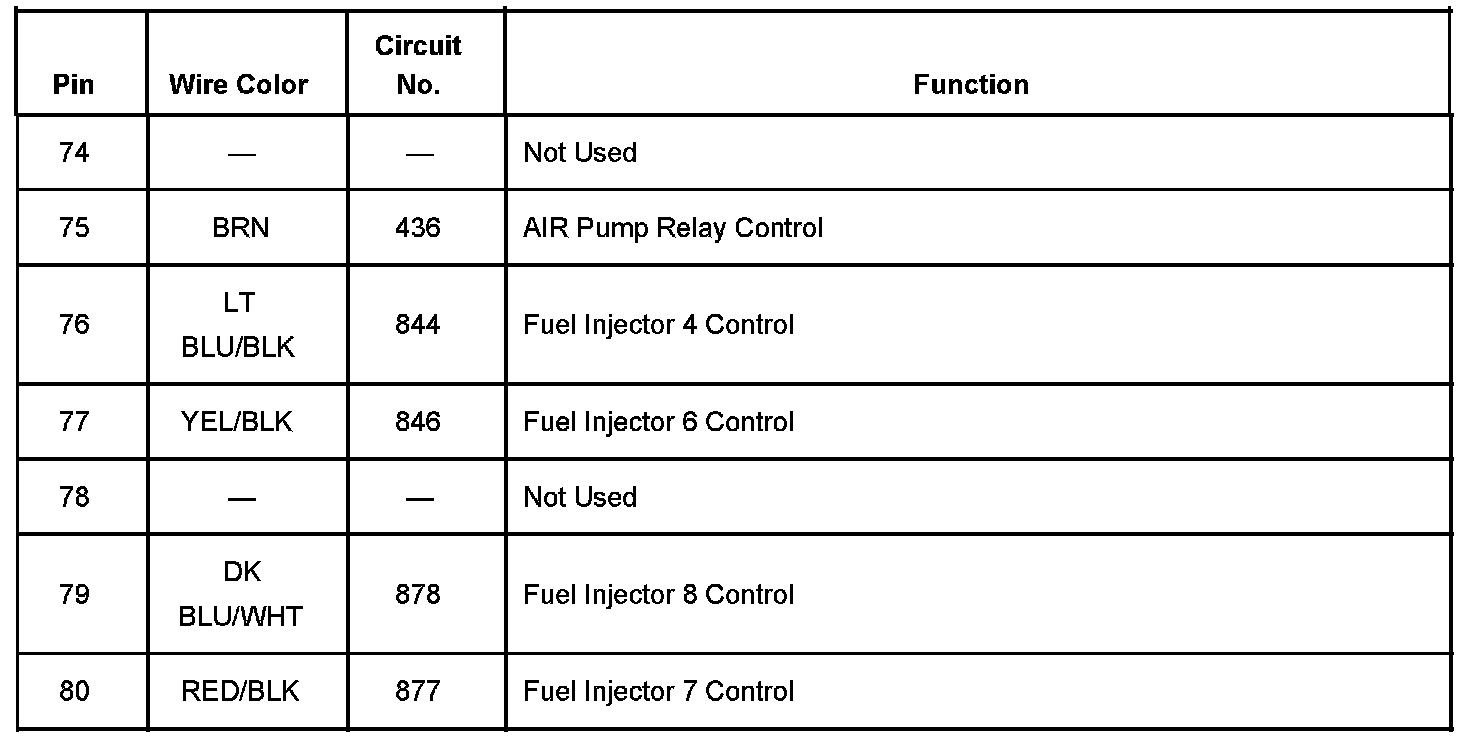

PCM Connector C1 Part 5:
