Wiring Diagram Index

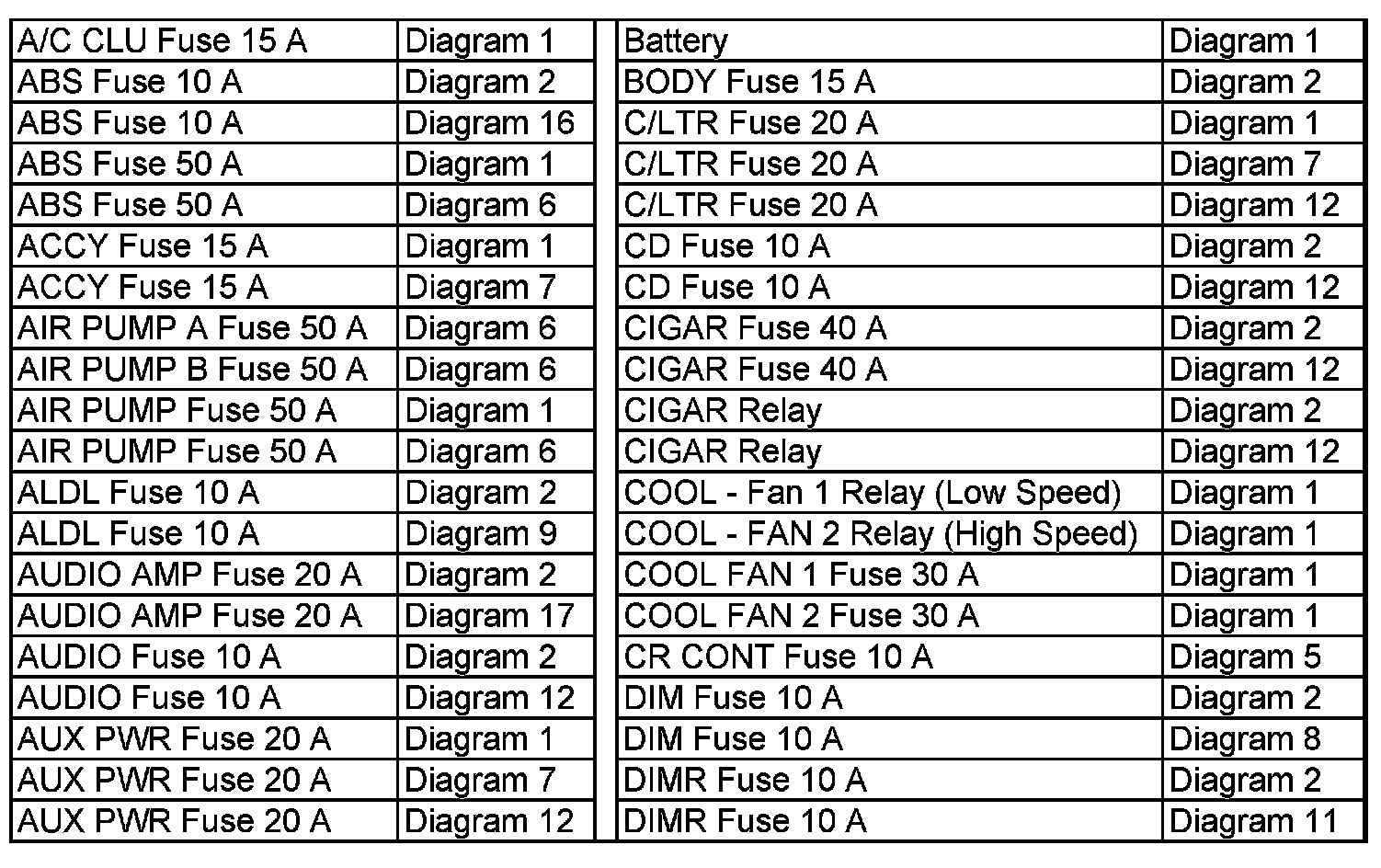

A/C CLU Fuse 15A - DIMR Fuse 10A:

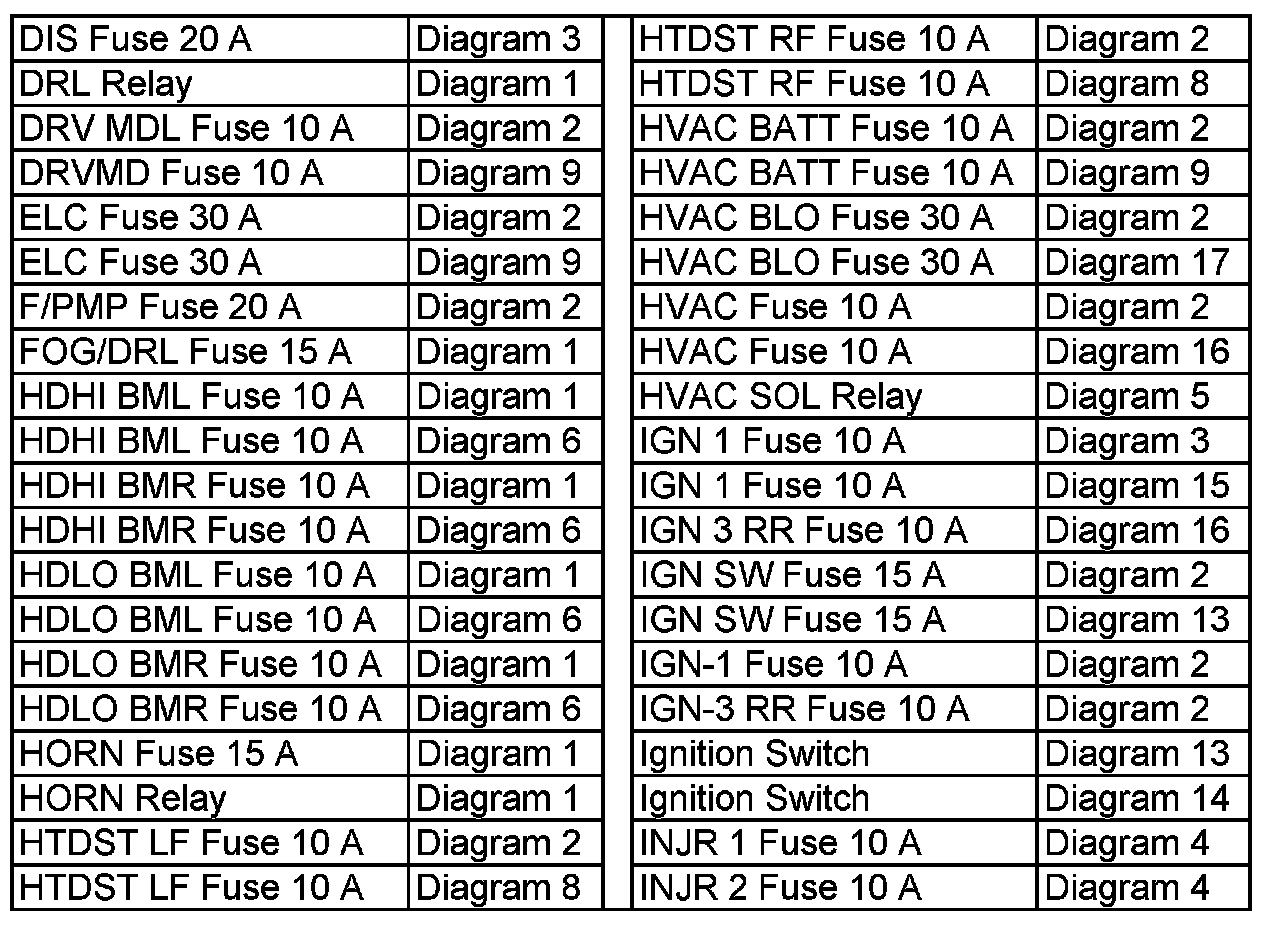

DIS Fuse 20A - INJR 2 Fuse 10A:

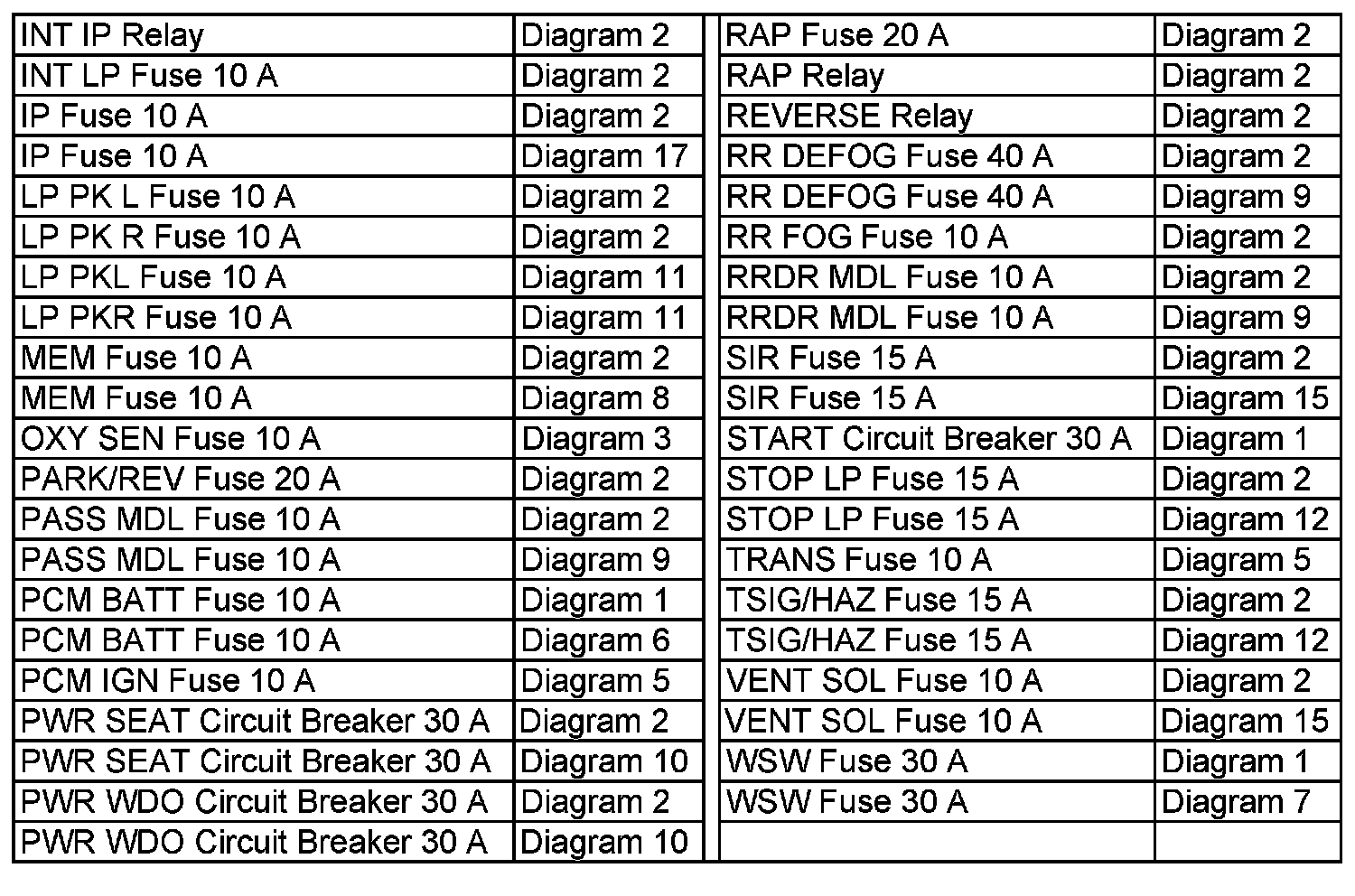

INT IP Relay - WSW Fuse 30A:
