A/C System Pressure - Zone Classification

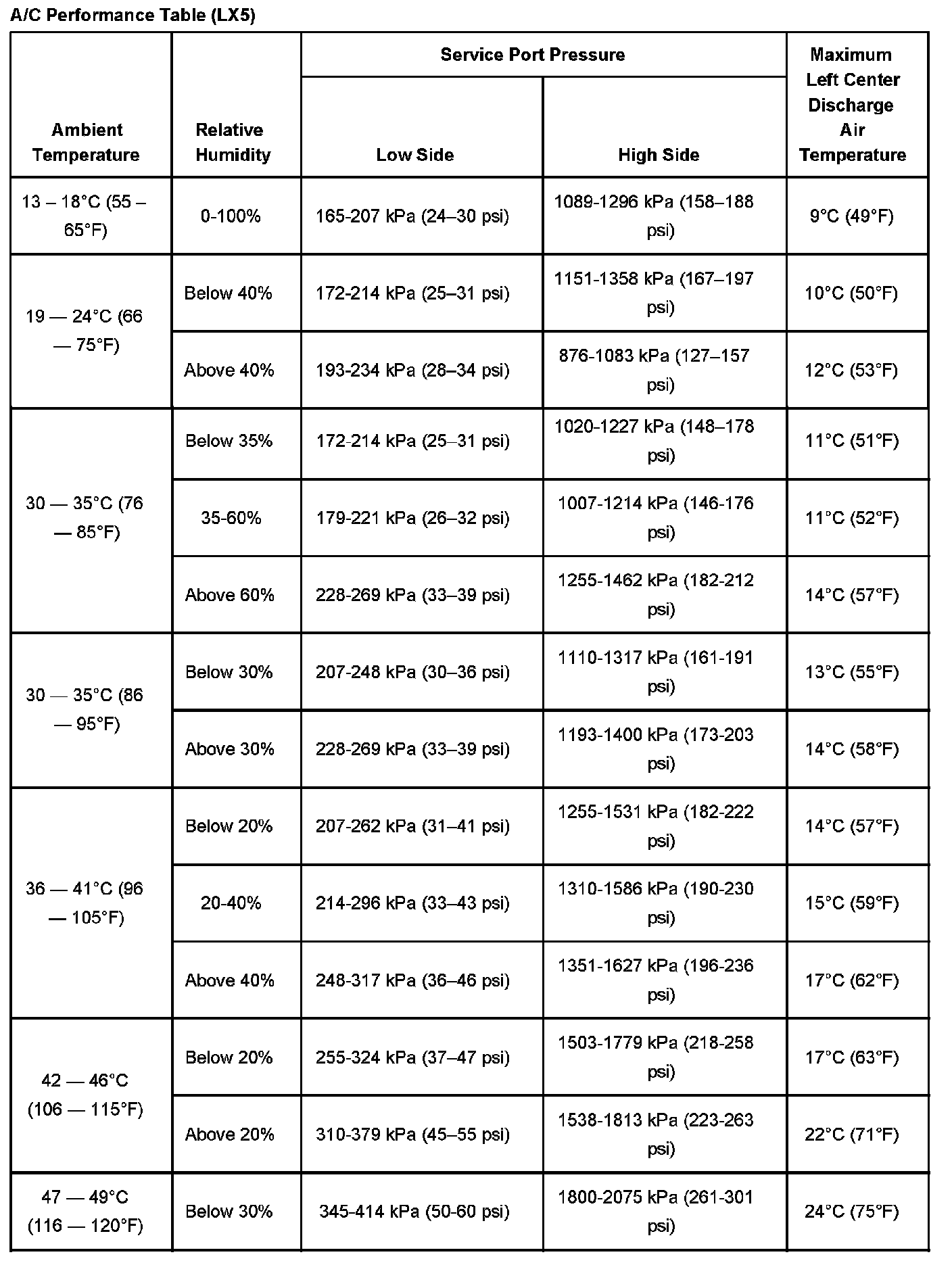

A/C Performance Table (LX5):



A/C Performance Table (L47):
