Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Door Lock Cylinder Switch >> Diagrams

Door Lock Cylinder Switch: Diagrams

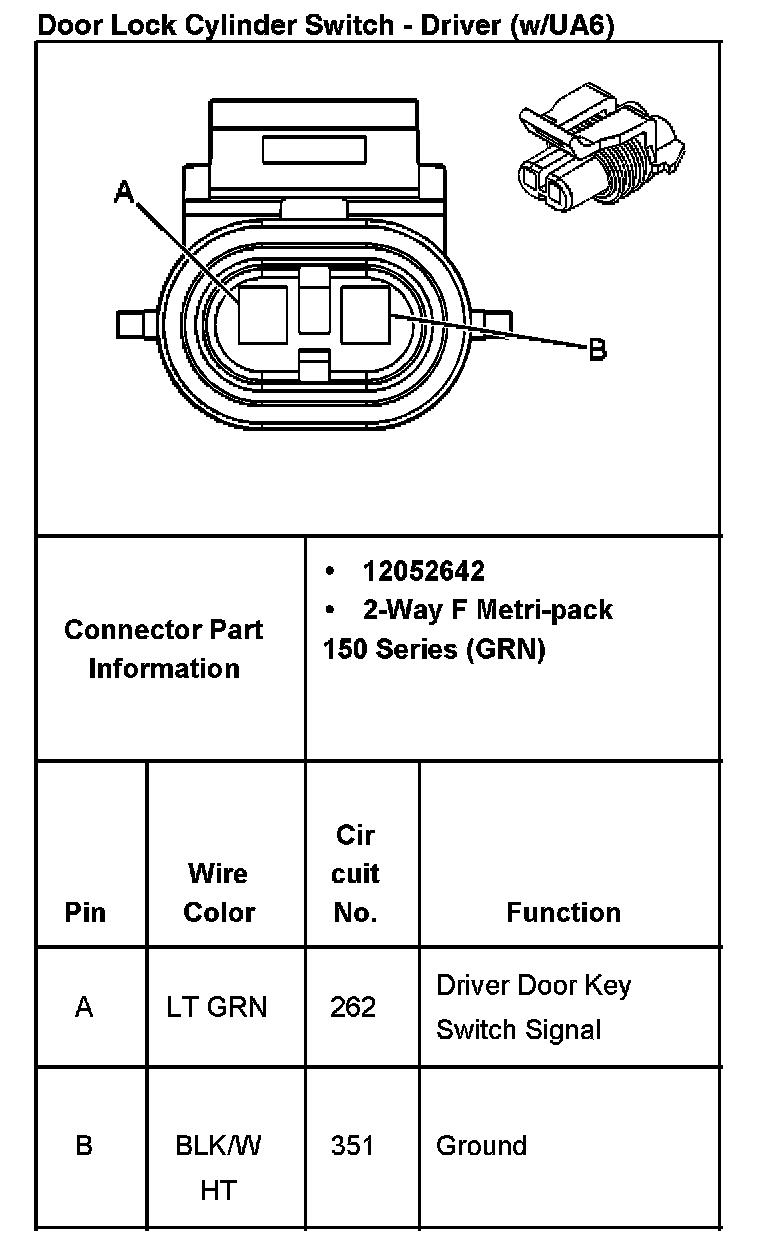

Door Lock Cylinder Switch - Driver With RPO Code UA6:



Door Lock Cylinder Switch - Driver:
