Power Seat Motor Position Sensor: Diagrams

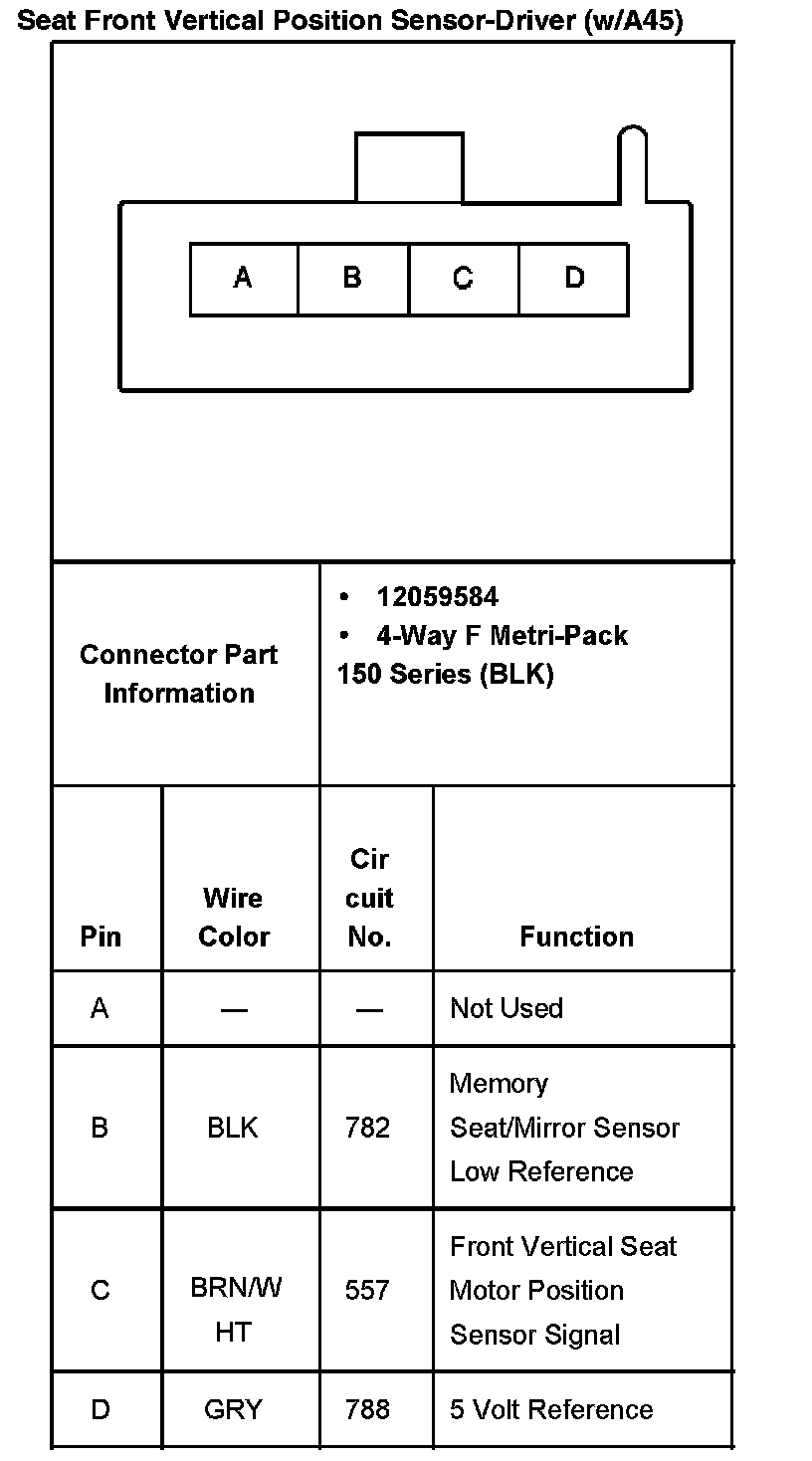

Seat Front Vertical Position Sensor - Driver (With RPO Code A45):

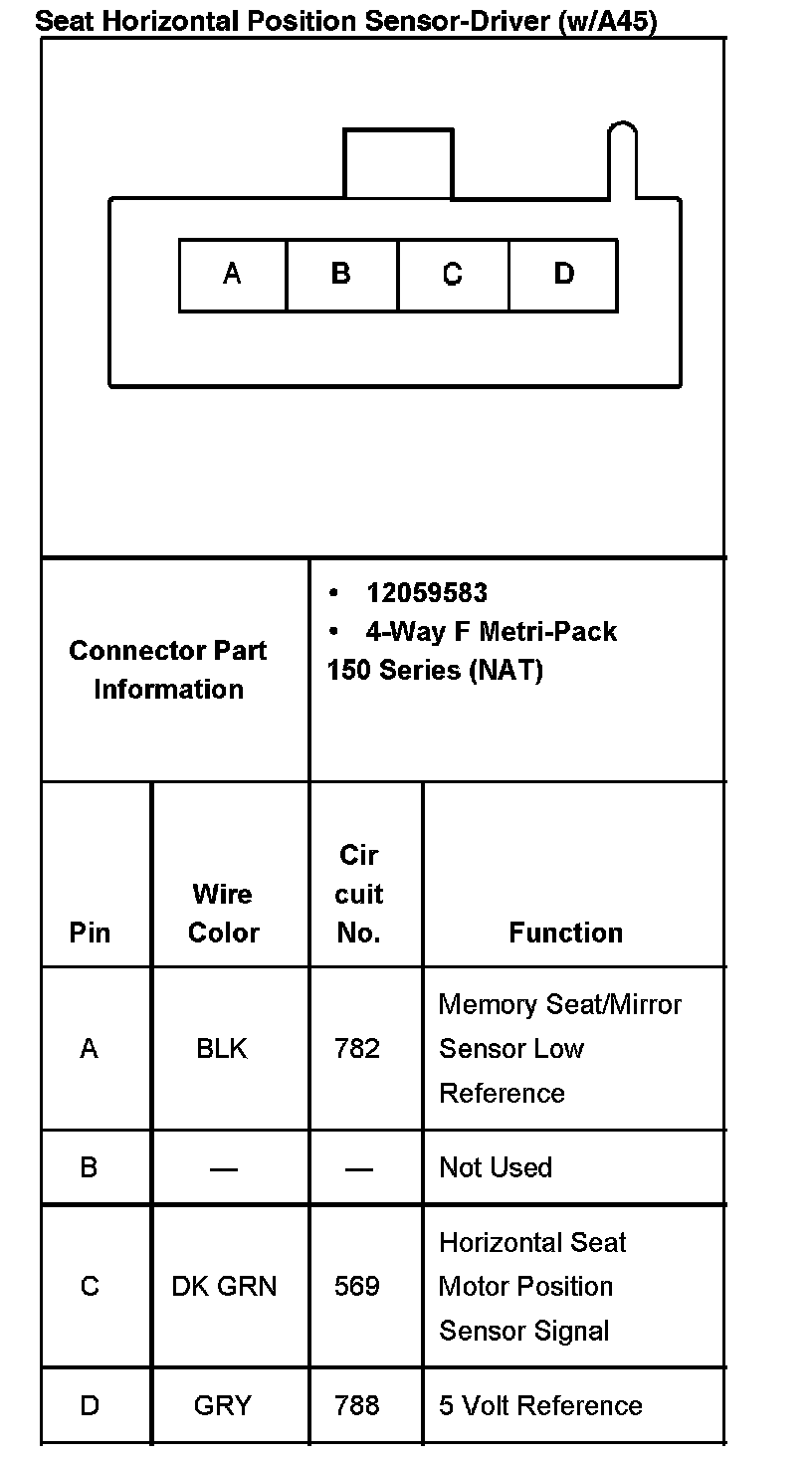

Seat Horizontal Position Sensor - Driver (With Out RPO Code A45):

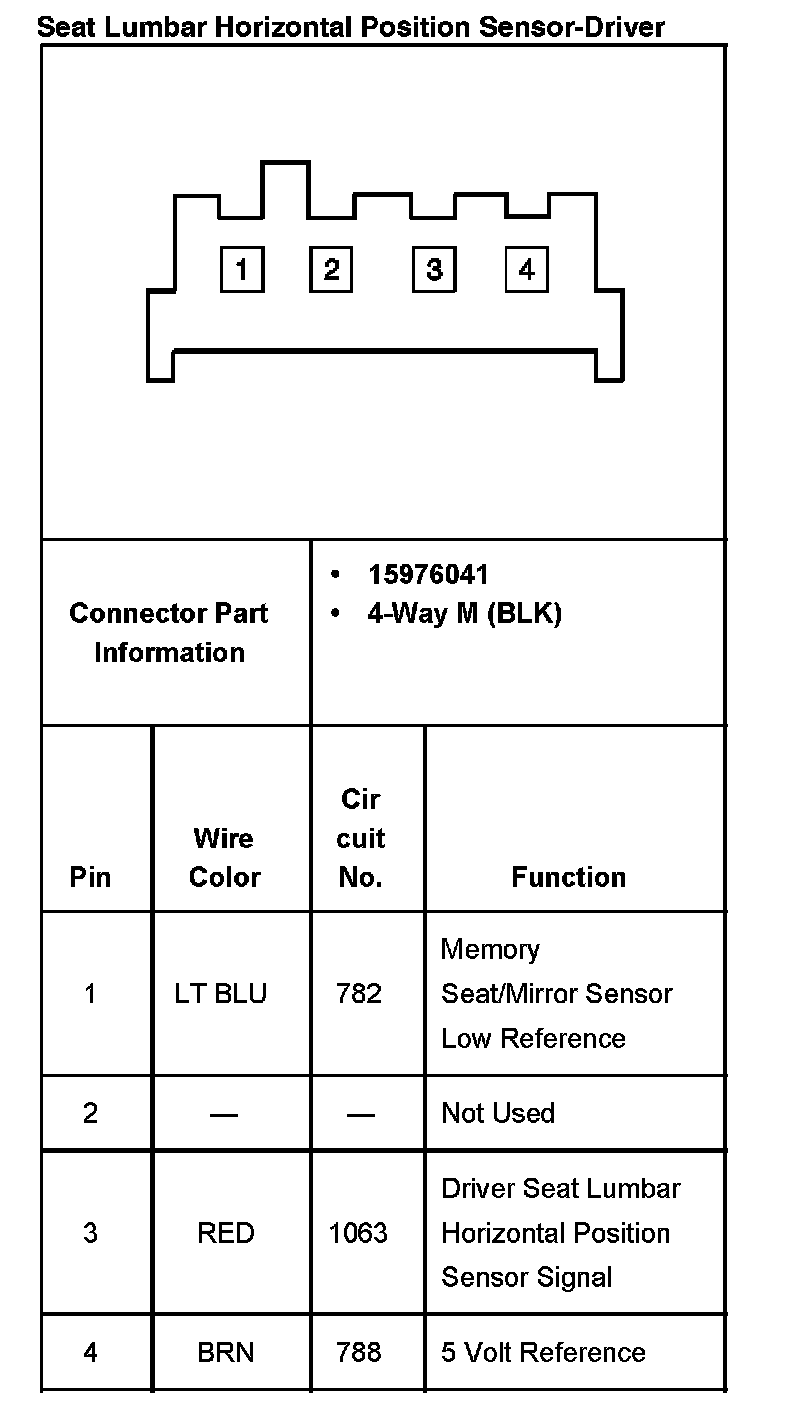

Seat Lumbar Horizontal Position Sensor - Driver:

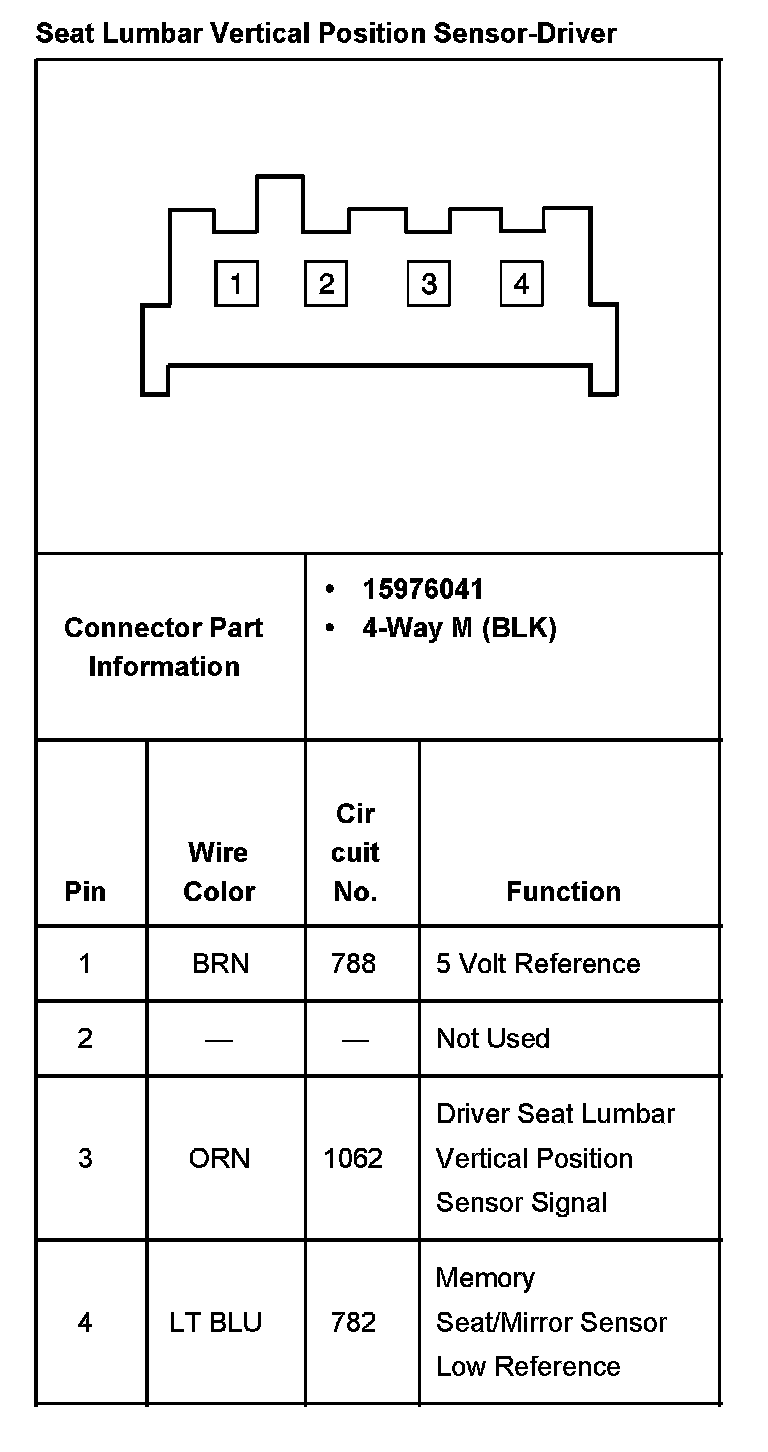

Seat Lumbar Vertical Position Sensor - Driver:

Seat Rear Vertical Position Sensor - Driver (With RPO Code A45):

Seat Recline Position Sensor - Driver (With RPO Code A45):
