Multiple Junction Connector
>>
C300 - C413
>>
C300 Engine Harness to Body Harness

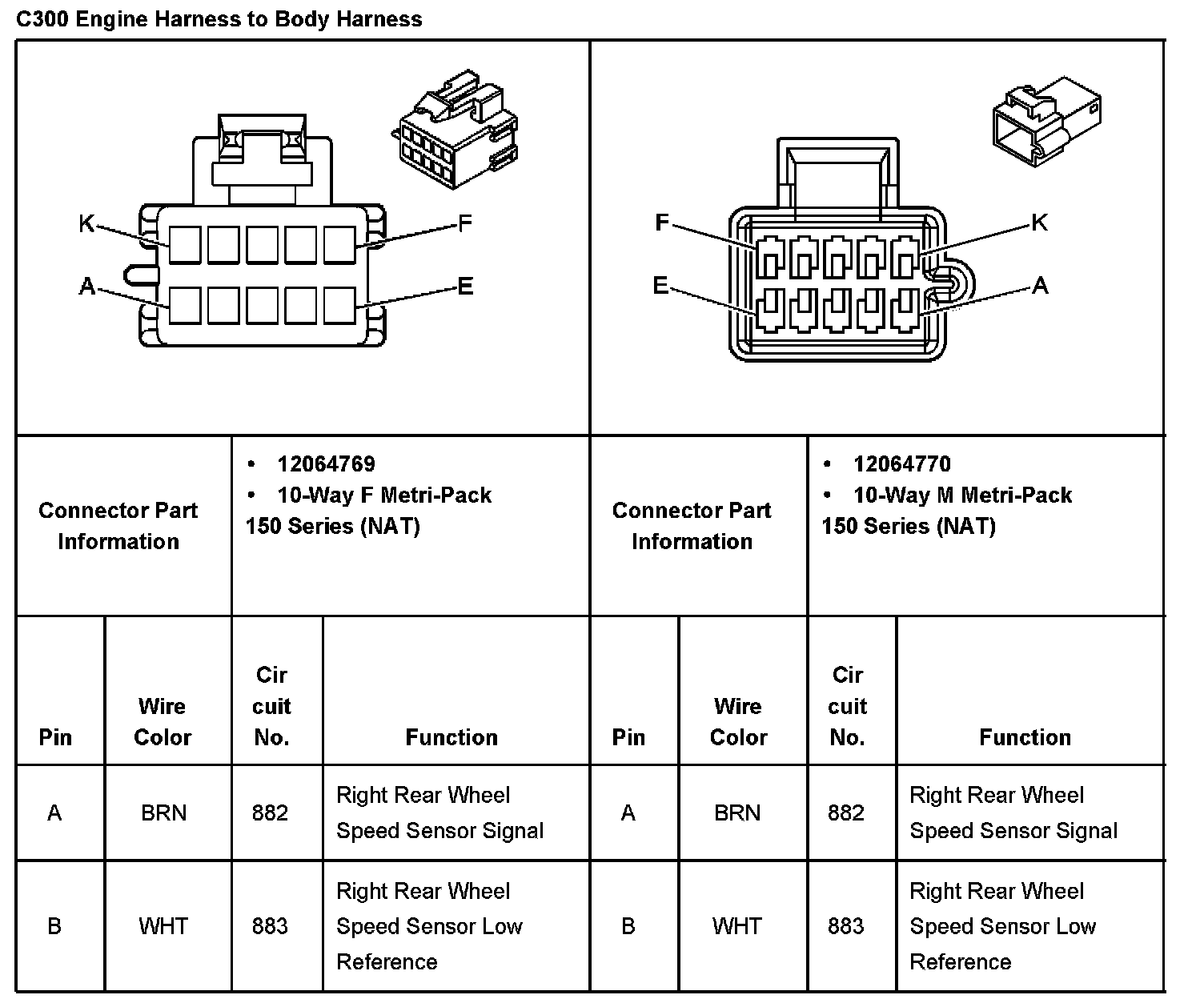

C300 Engine Harness to Body Harness

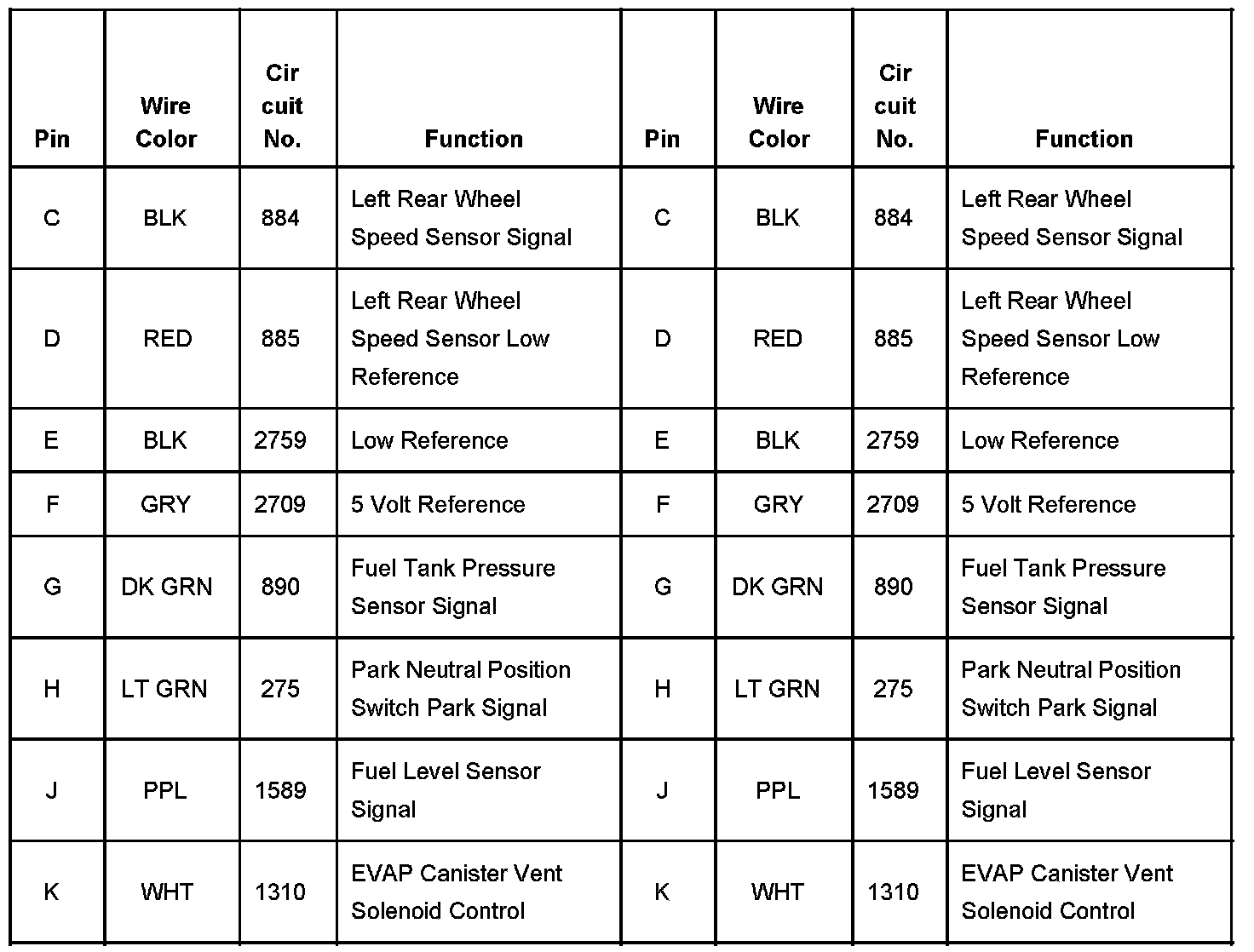

C300 Engine Harness to Body Harness Part 1:
C300 Engine Harness to Body Harness Part 2:
