Instrument Panel (IP) - Accessory Trim Plate Replacement

Instrument Panel Accessory Trim Plate Replacement (Oldsmobile)

Removal Procedure

1. Remove the trim plate from the front floor console.

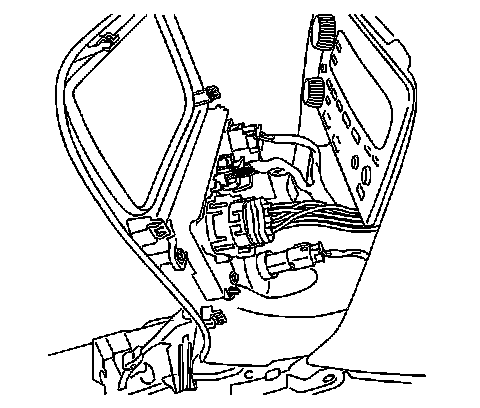

2. Gently pull rearward on the bottom of the instrument panel (I/P) accessory trim plate to disengage the retainers.
3. Disconnect the vacuum hoses and the electrical connectors from the HVAC controls.
4. Disconnect the electrical connector from the 12-volt power supply.
5. Remove the cigar lighter housing from the I/P accessory trim plate, if required.

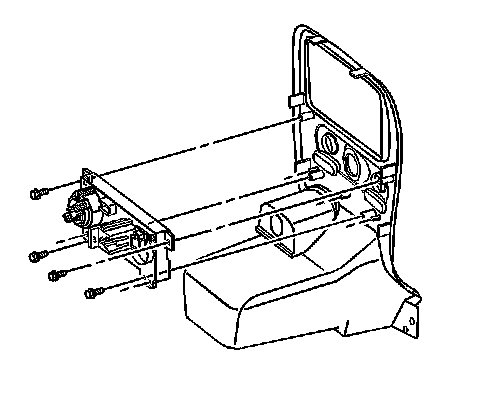

6. Remove the HVAC controls from the I/P accessory trim plate.

Installation Procedure




1. Install the HVAC controls to the I/P accessory trim plate.




2. Install the cigar lighter housing to the I/P accessory trim plate, if required.
3. Connect the electrical connector to the 12-volt power supply.
4. Connect the vacuum hoses and the electrical connectors to the HVAC controls.
5. Install the I/P accessory trim plate, pressing the plate into place until fully seated.
6. Install the trim plate to the front floor console.
