Odometer Trip/Reset Switch Inoperative

ODOMETER TRIP/RESET SWITCH INOPERATIVE

TEST DESCRIPTION

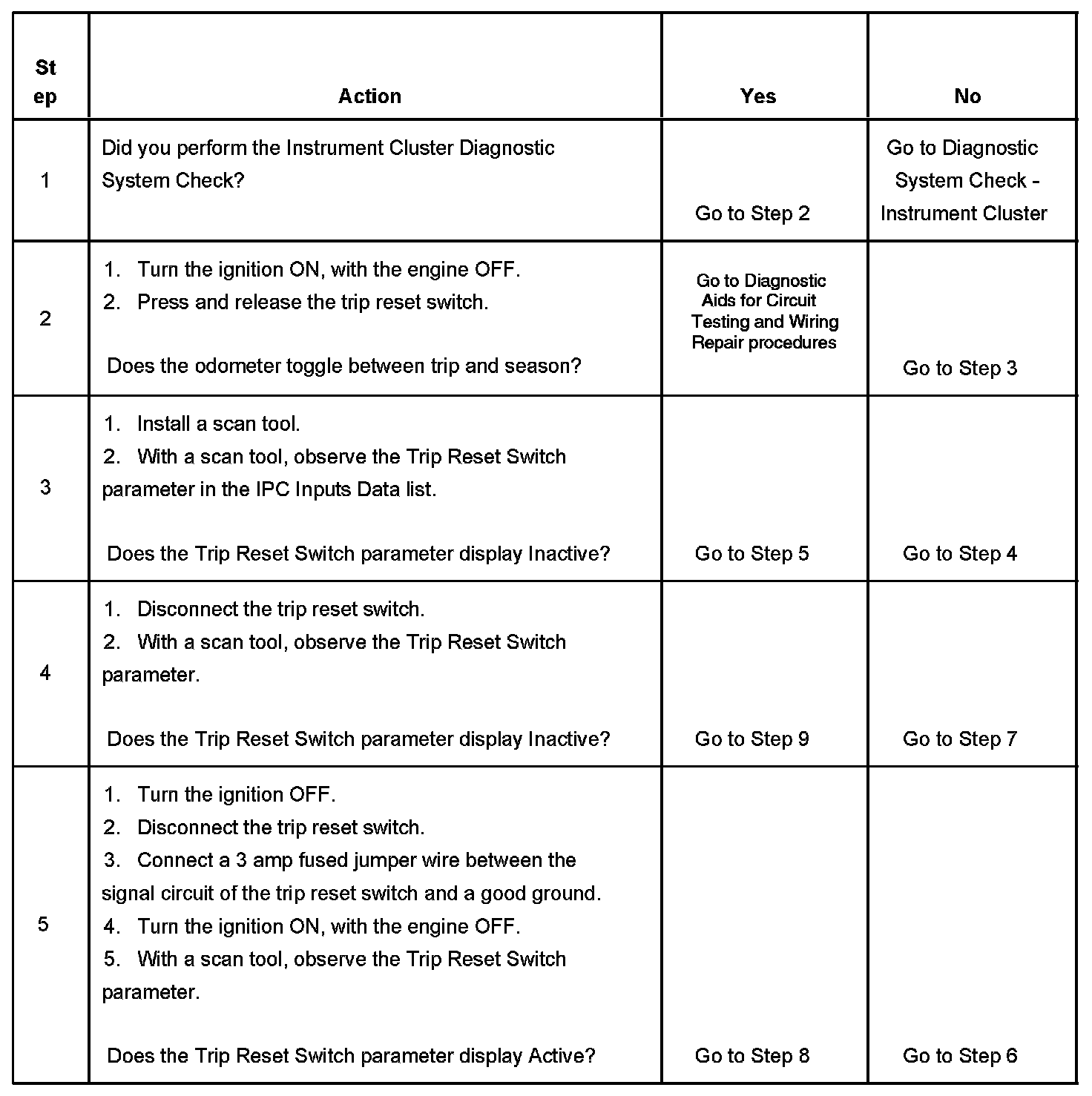

Steps 1 - 5:

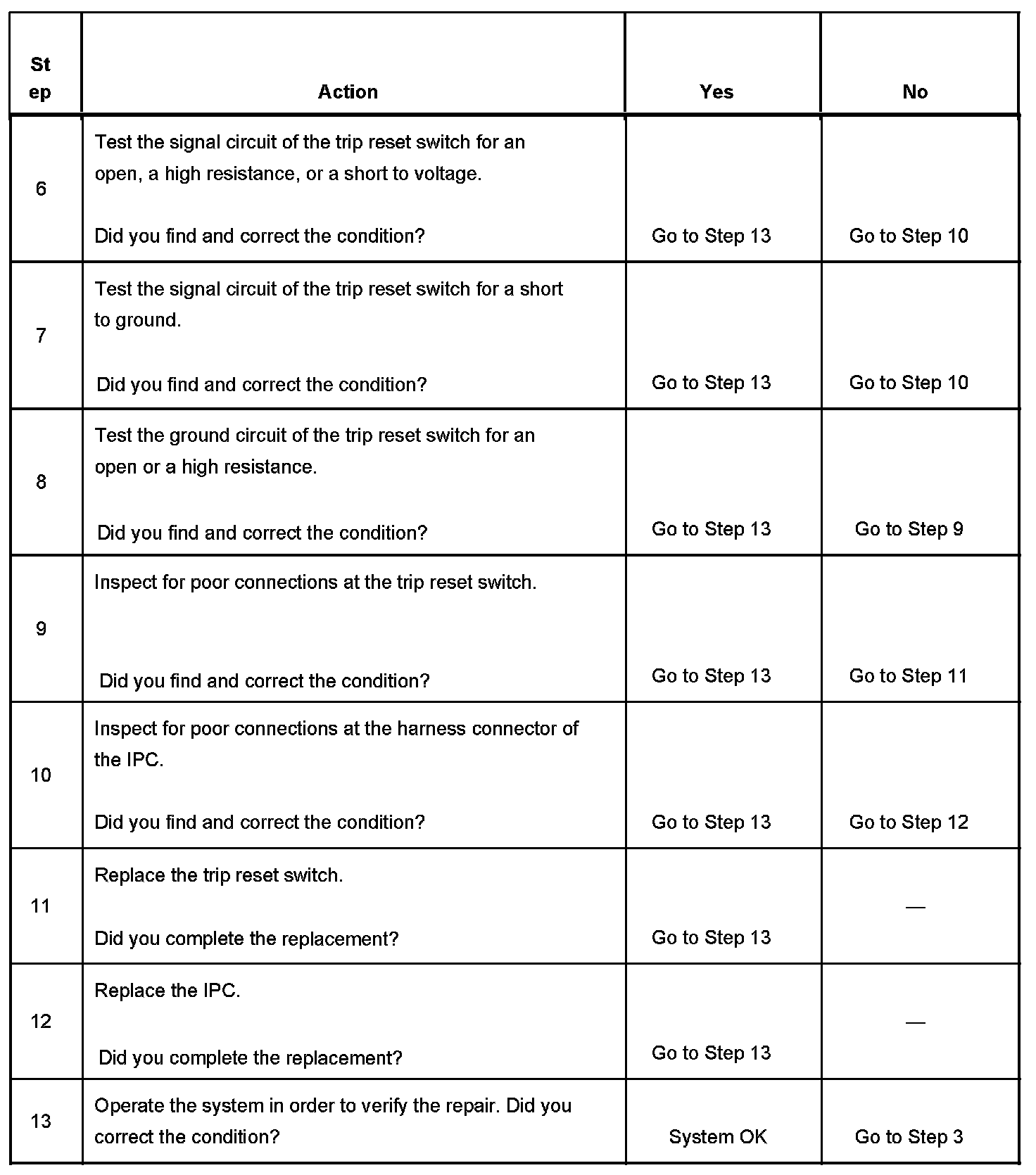

Steps 6 - 13:

The number below refers to the step number on the diagnostic table.
5. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.
