Backup Lamp Replacement

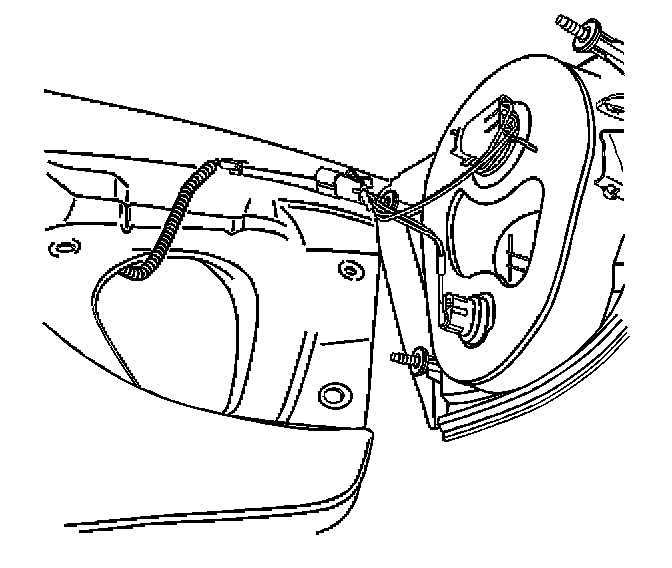

BACKUP LAMP REPLACEMENTREMOVAL PROCEDURE
1. Open the rear compartment.
2. Remove the thumb nuts from the backup lamp.
3. Remove the backup lamp from the rear compartment lid.
4. Disconnect the electrical connector from the backup lamp.
5. Remove the backup lamp from the vehicle.
6. Disconnect the electrical connector retainer from the backup lamp housing, if required.
7. Remove the bulb/socket from the backup lamp by rotating counterclockwise, if required.
8. Remove the bulbs from the sockets, if required.

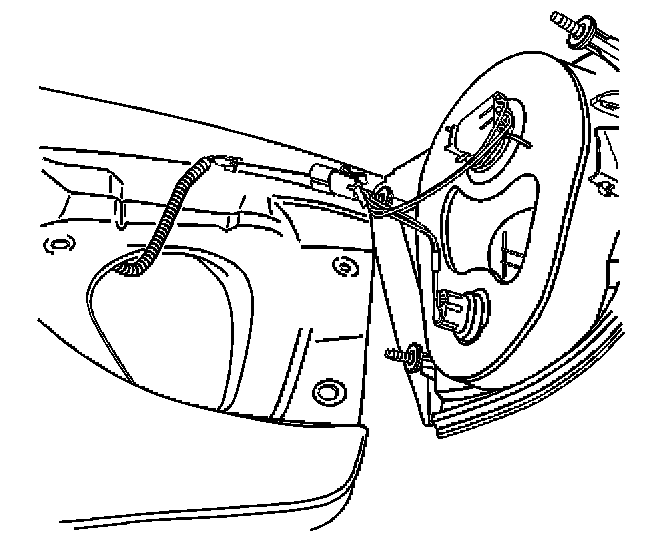

INSTALLATION PROCEDURE
1. Install the bulbs to the sockets, if required.
2. Install the bulb/socket to the backup lamp by rotating clockwise, if required.
3. Connect the electrical connector retainer to the backup lamp housing, if required.
4. Connect the electrical connector to the backup lamp.
5. Install the backup lamp to the rear compartment lid.
6. Install the thumb nuts to the backup lamp, and hand tighten.
7. Close the rear compartment.
