FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.

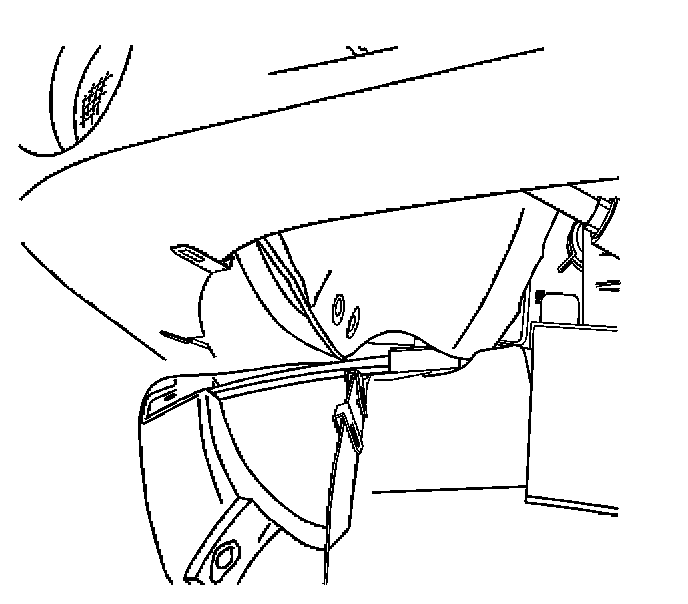

1. Partially remove the front edge of the front fender liner to gain access to the fog lamps.

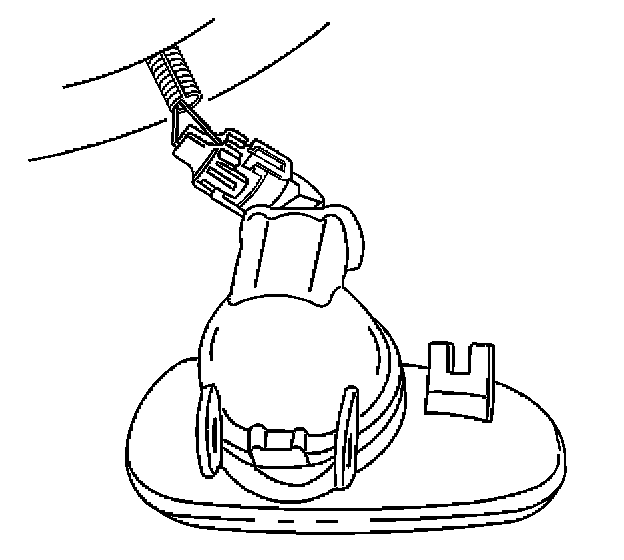

2. Remove the bulb/socket from the fog lamp by rotating counterclockwise.




3. Disconnect the electrical connector from the bulb/socket, if required.




4. Remove the bolts (1) from the fog lamp.
5. Remove the fog lamp from the front bumper impact bar.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the bulb/socket, if required.
2. Install the bulb/socket to the fog lamp.
3. Rotate the fog lamp bulb/socket clockwise until fully seated.




4. Position the fog lamp to the front bumper impact bar.
5. Install the fog lamp bolts (1) to the fog lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fog lamp bolts to 3 N.m (27 lb in).

6. Check and adjust the fog lamp aim, if necessary. Refer to Fog Lamp Aiming Procedure.




7. Install the front edge of the front fender liner.
