Operation CHARM: Car repair manuals for everyone.

Home >> Oldsmobile >> 2004 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Interior Backlighting Inoperative

Interior Backlighting Inoperative

Steps 1 - 3:

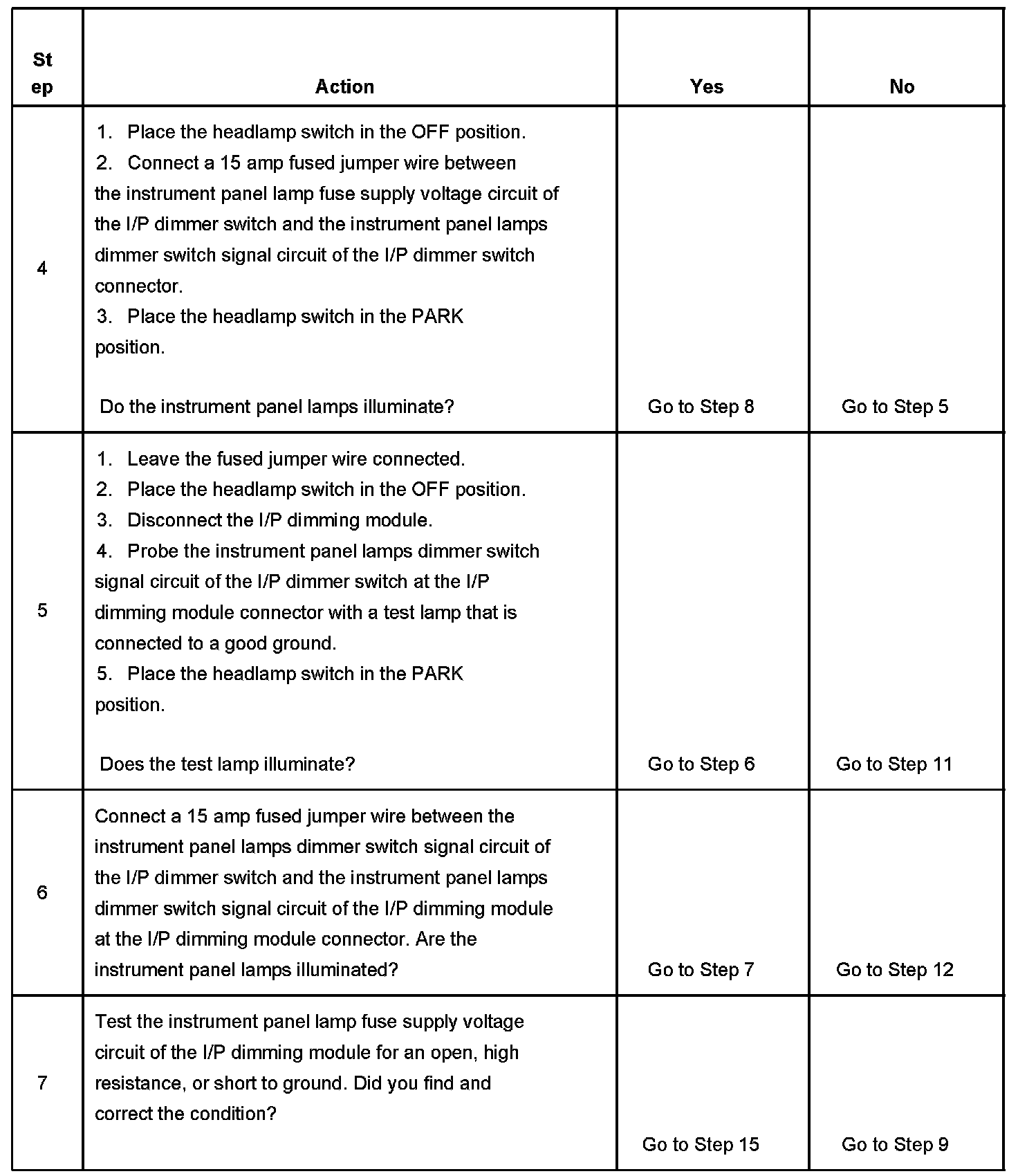

Steps 4 - 7:

Steps 8 - 13:

Steps 14 - 15:
