Home
>>
Oldsmobile
>>
2004
>>
Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Connector Views
>>

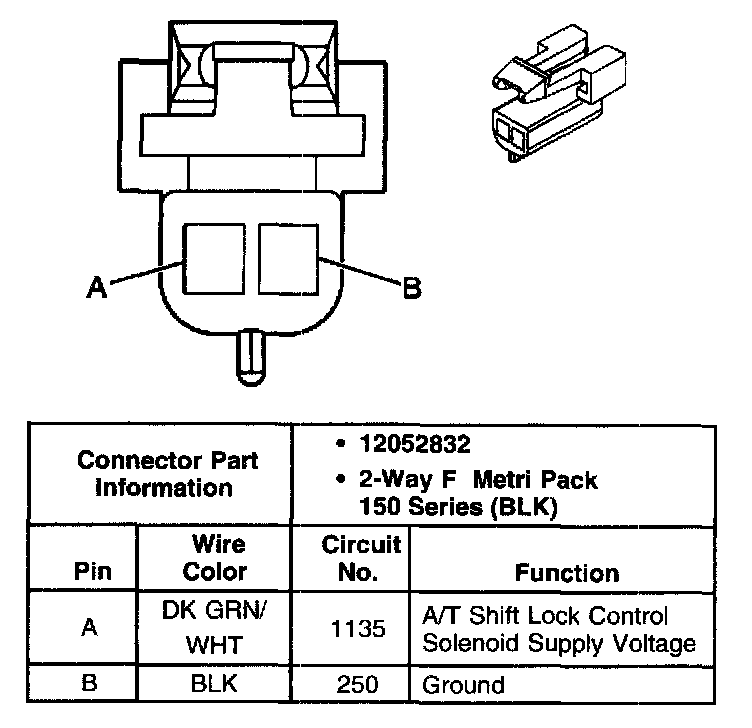

A/T Shift Lock Control Solenoid
A/T Shift Lock Control Solenoid
