Home >> Oldsmobile >> 2004 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Wiper and Washer Systems >> Washer Fluid Level Switch >> Diagrams

Washer Fluid Level Switch: Diagrams

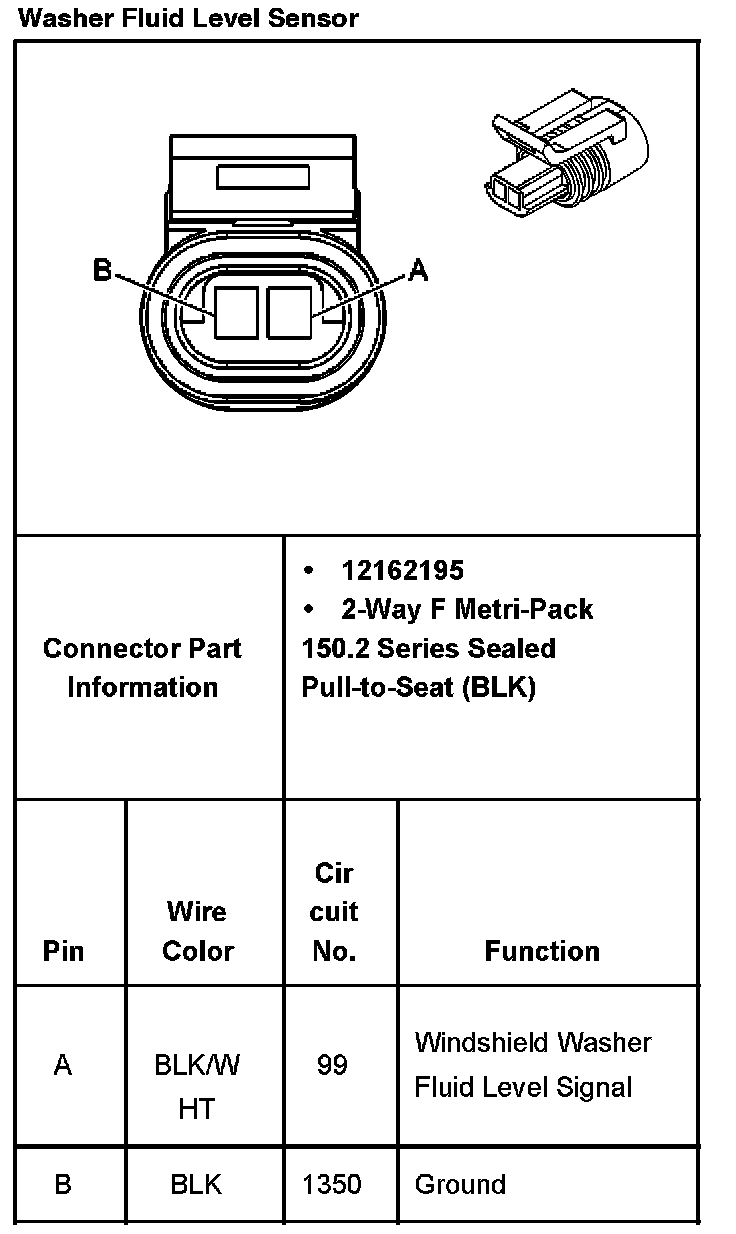

Washer Fluid Level Sensor:
