Evaporative Emission Control System
Evaporative Emission Control System

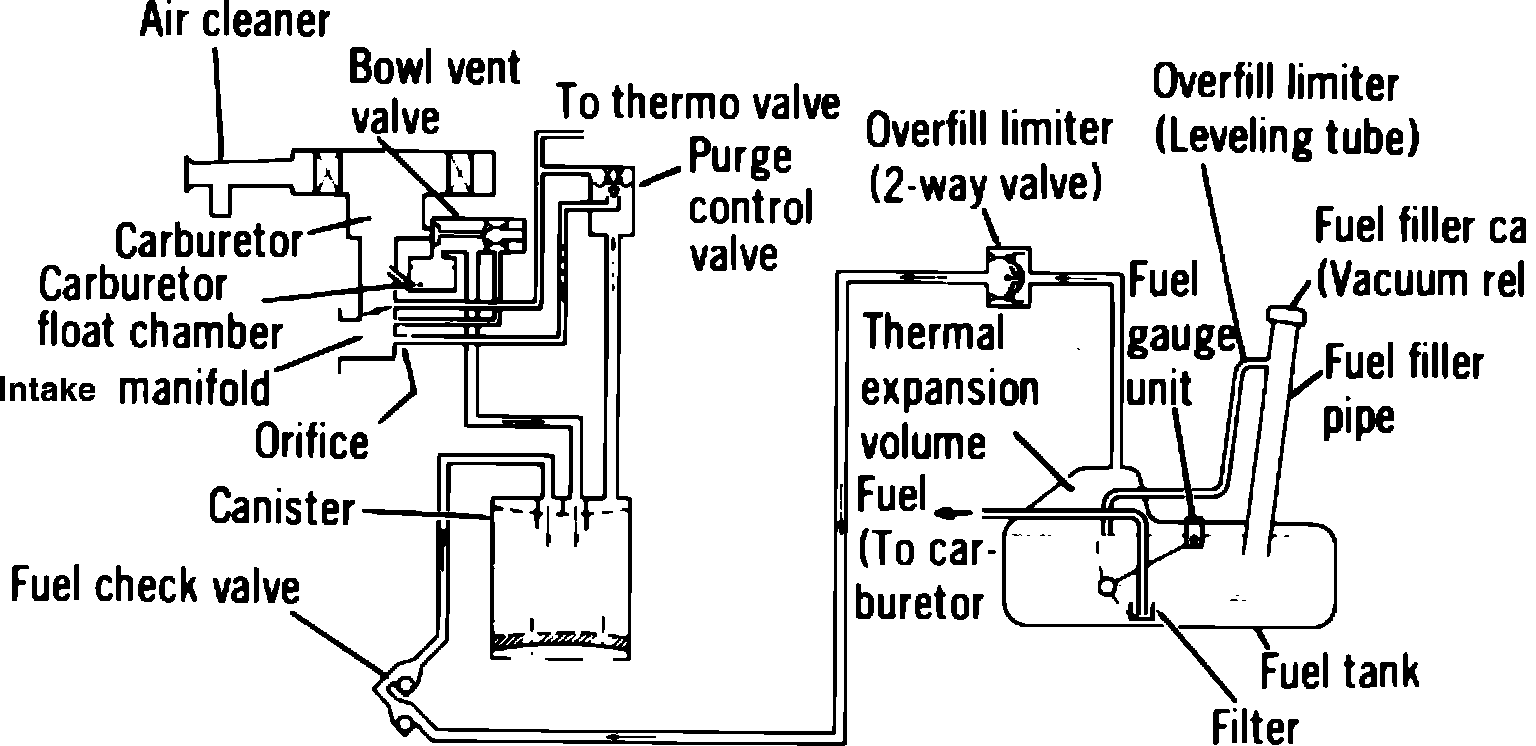

Evaporative Emission Control (EEC) system. 1984-86 1400cc, 1500cc & 1600cc Non-Turbocharged engines (typical):
