Heated Air Inlet System
Heated Air Inlet System

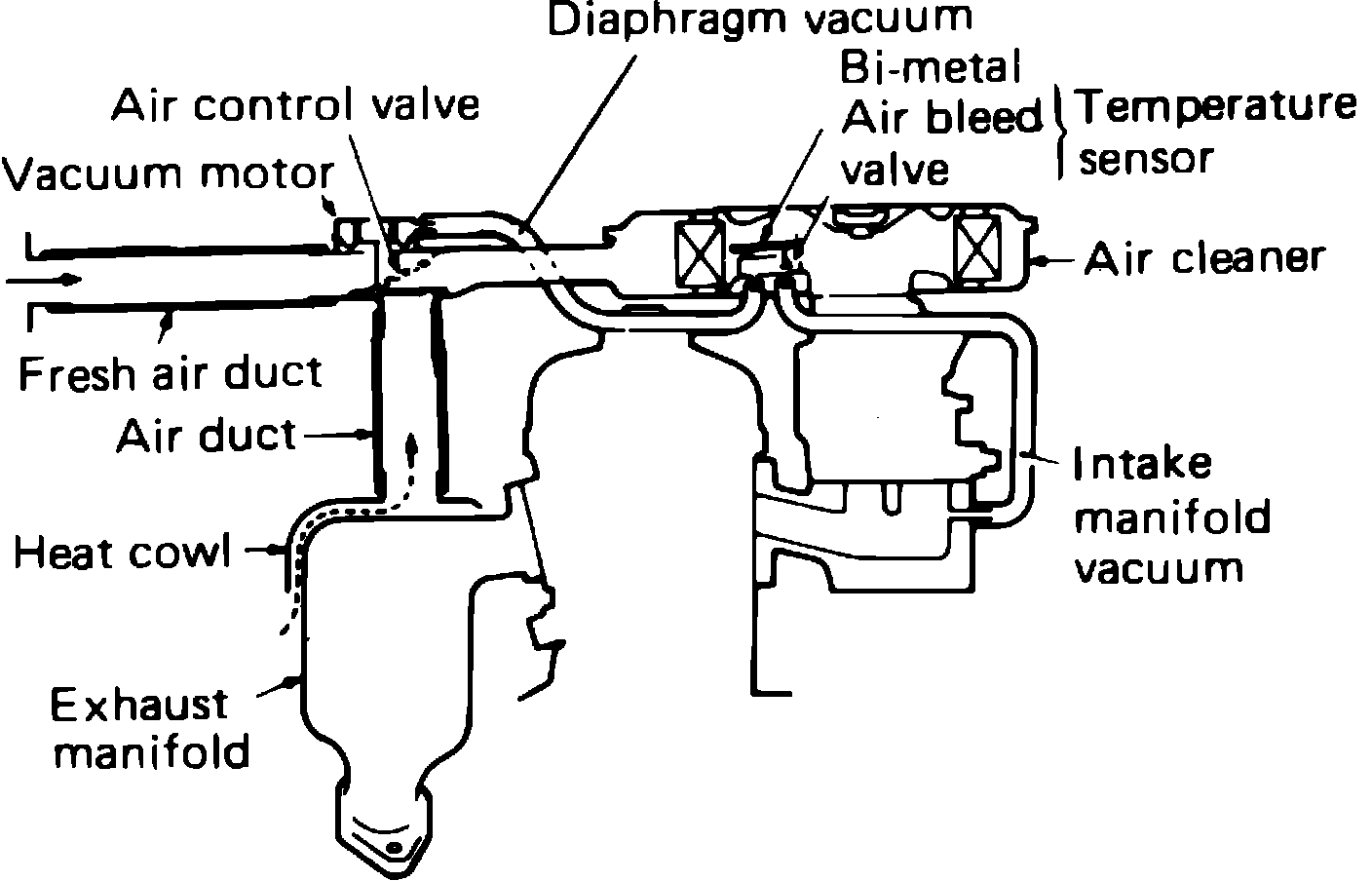

Heated Air Intake System (HAIS). 1984-86 1400cc, 1500cc, 1600cc Non-Turbocharged & 2000cc engines, exc. Pickup:

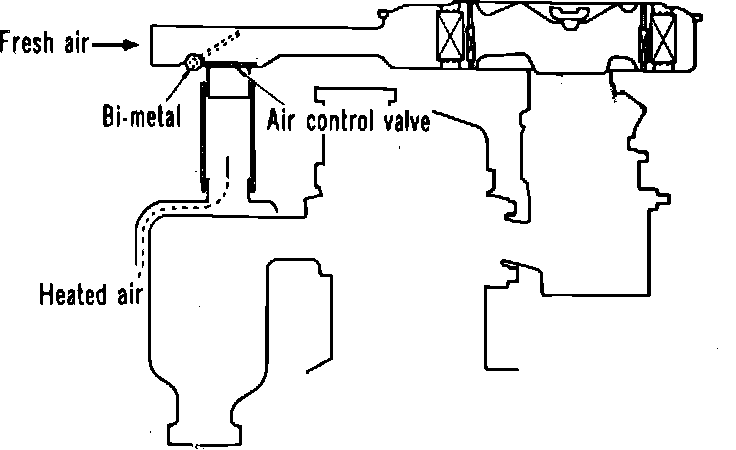

Heated Air Intake System. 1982 Champ & 1982-83 Colt:
