Gran Fury L6-225 3.7L VIN J 1-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Lockout Switch
Power Window Lockout Switch

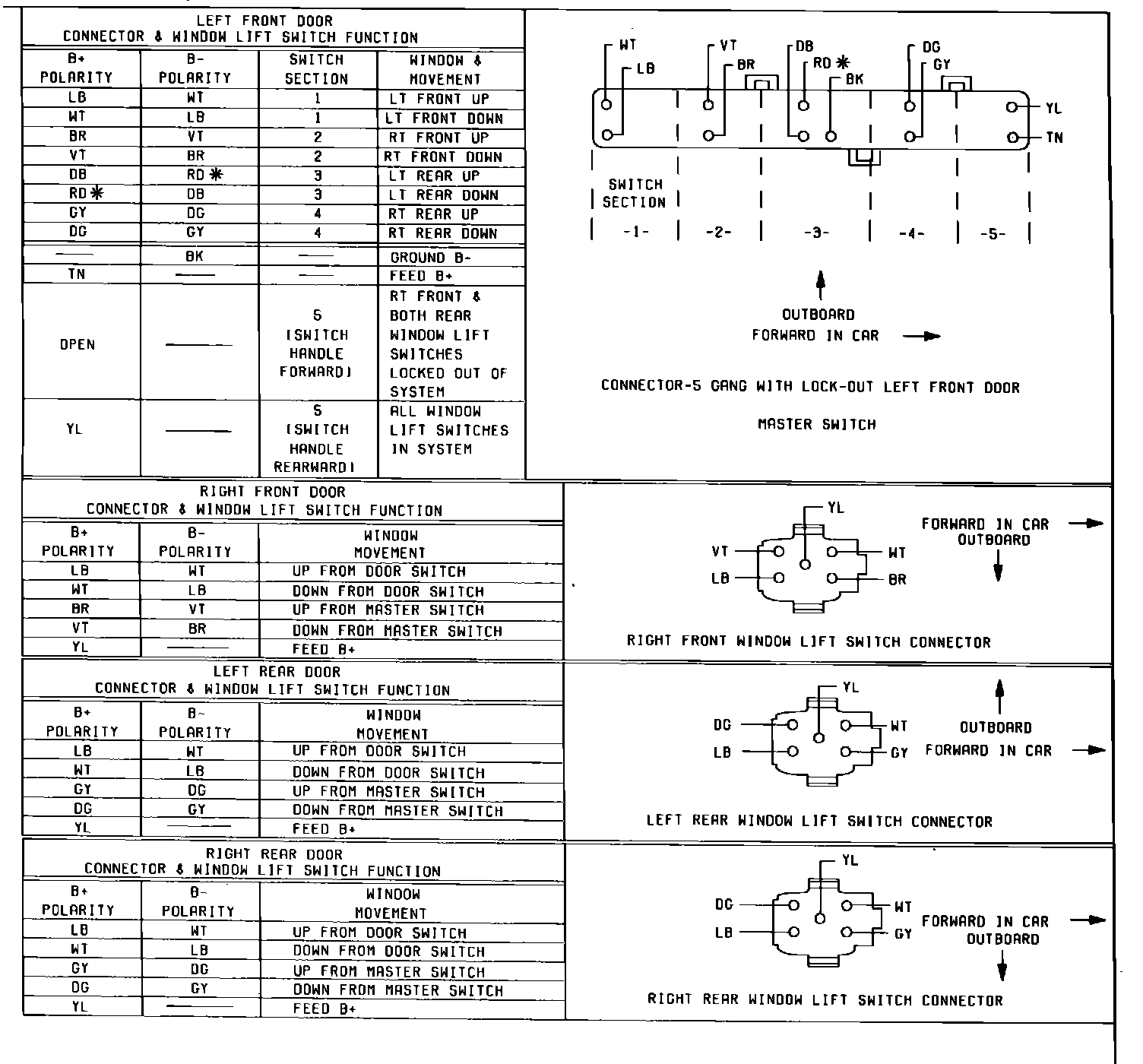

Fig. 5 Power Window Connector:
