Gran Fury L6-225 3.7L VIN J 1-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessory Delay Module
Accessory Delay Module

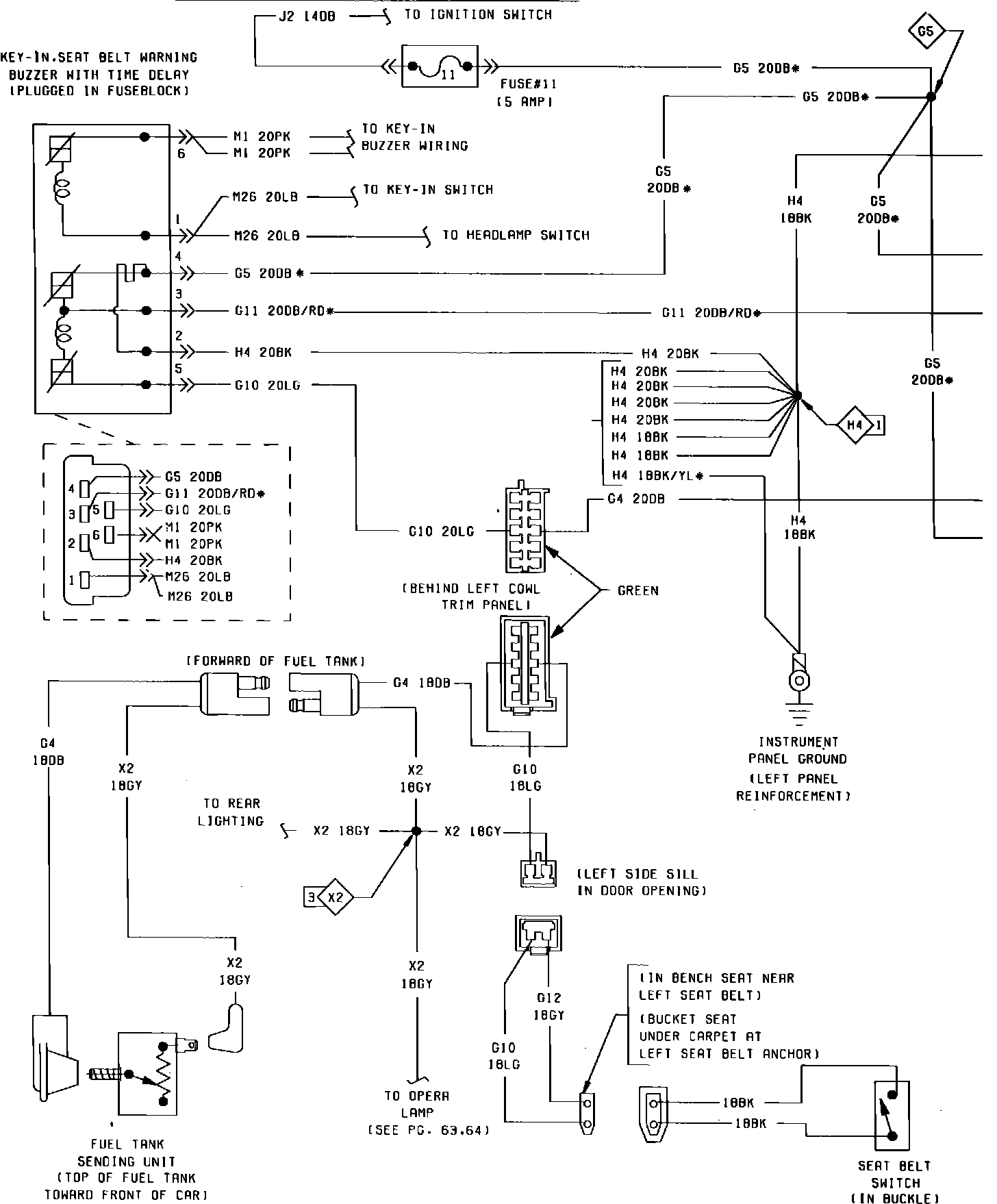

Fig. 11 Brake, Fuel Tank, Oil Pressure, Seat Belt & Temperature Warning System Wiring Circuit (Part 1 of 2):

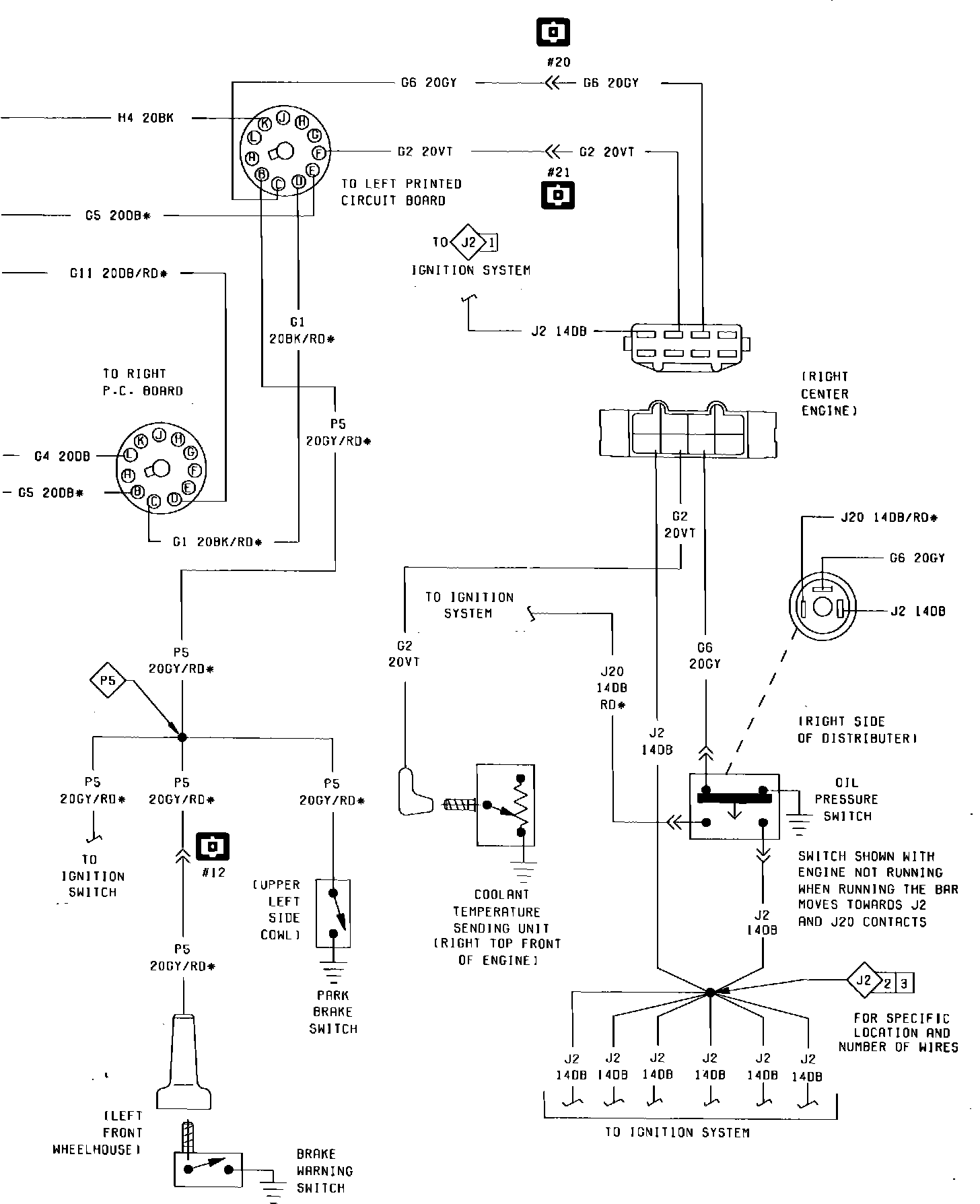

Fig. 11 Brake, Fuel Tank, Oil Pressure, Seat Belt & Temperature Warning System Wiring Circuit (Part 2 of 2):
