System Diagram

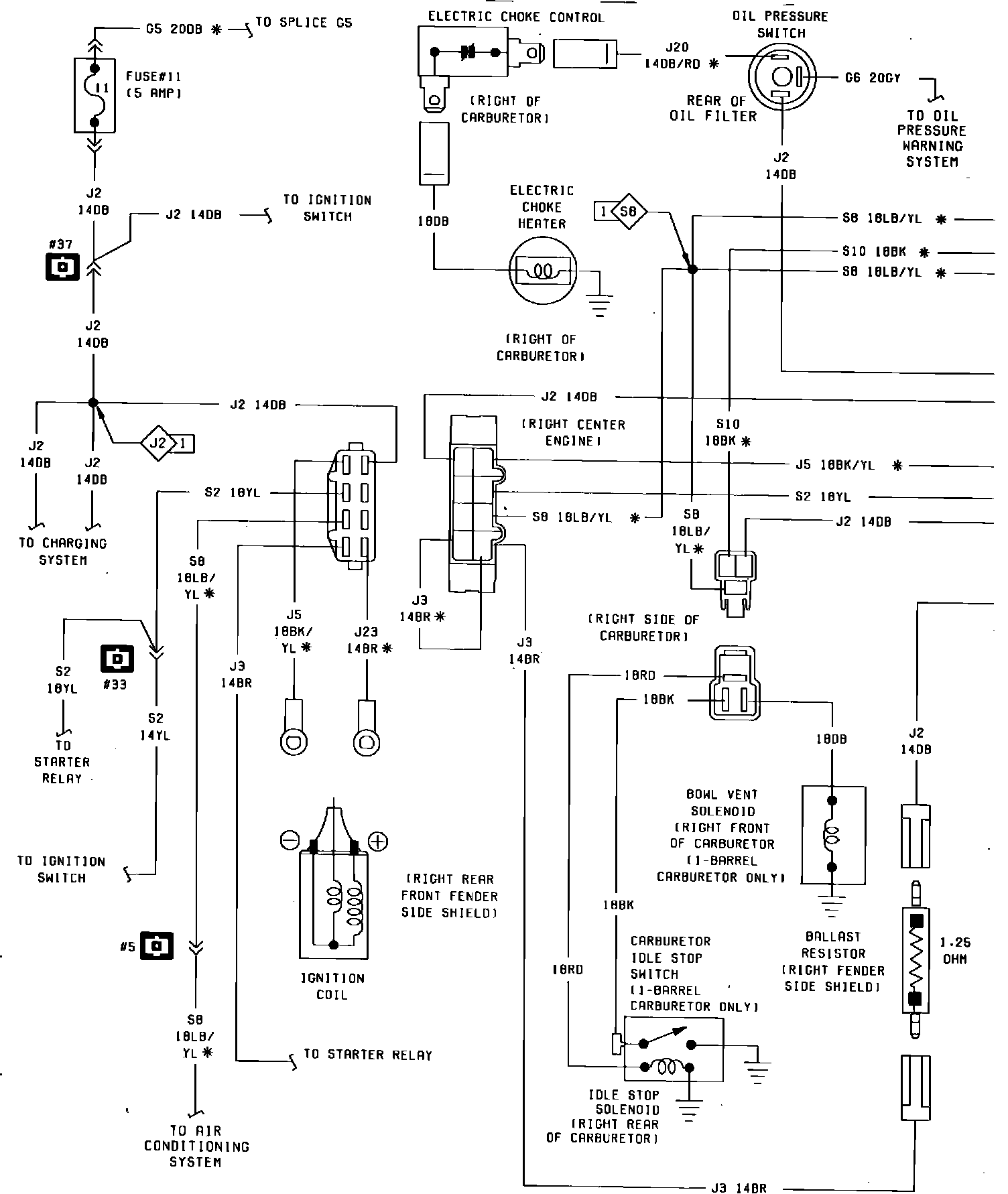

Fig. 31 Ignition System Electronic Control Unit Wiring Circuit (Part 1 of 2). 1983 6-225:
