Power Assist System Wiring Circuit
Power Assist System Wiring Circuit

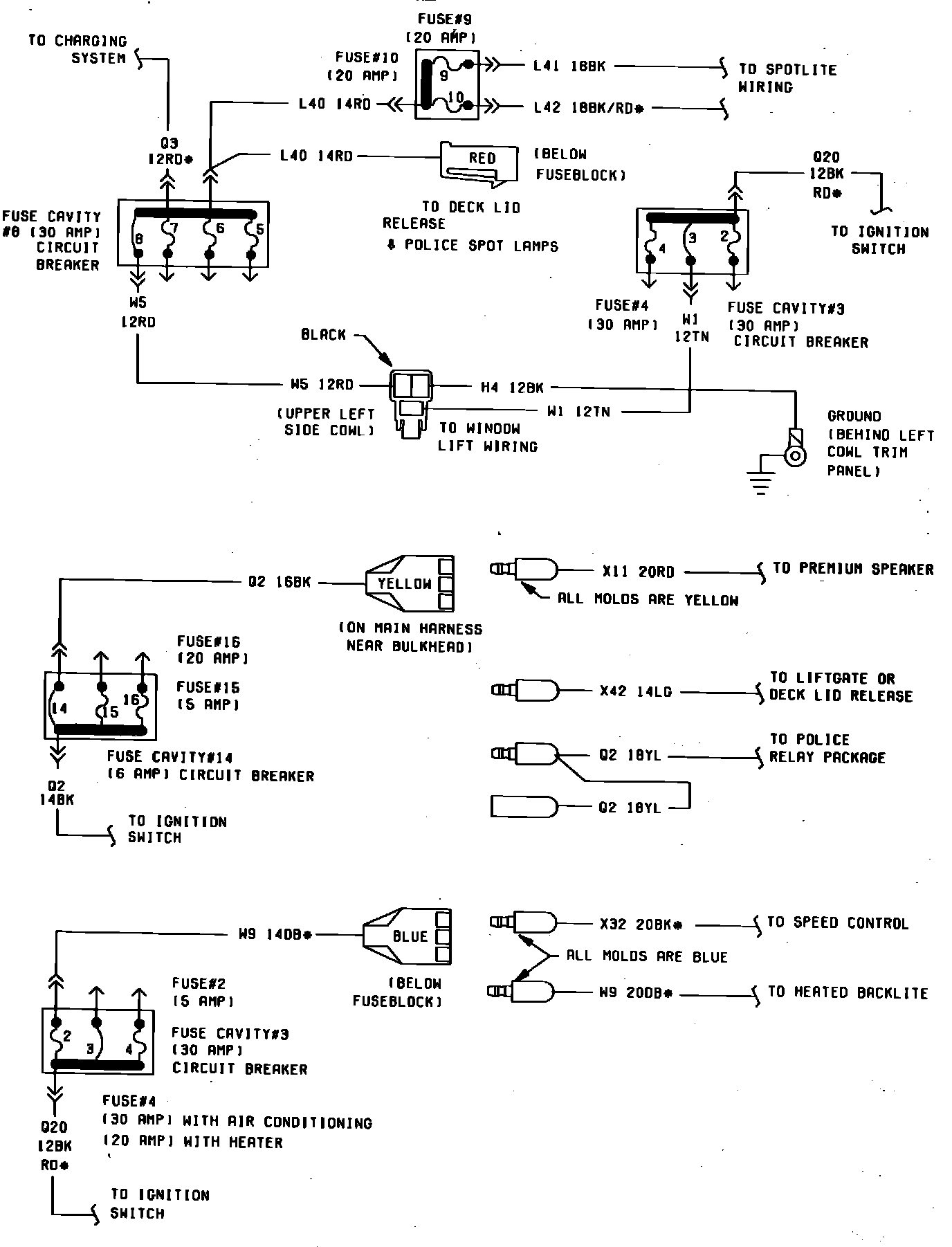

Fig. 40 Power Assist System Wiring Circuit. 1983:
