Instrument Panel Circuit Board
Instrument Panel Circuit Board

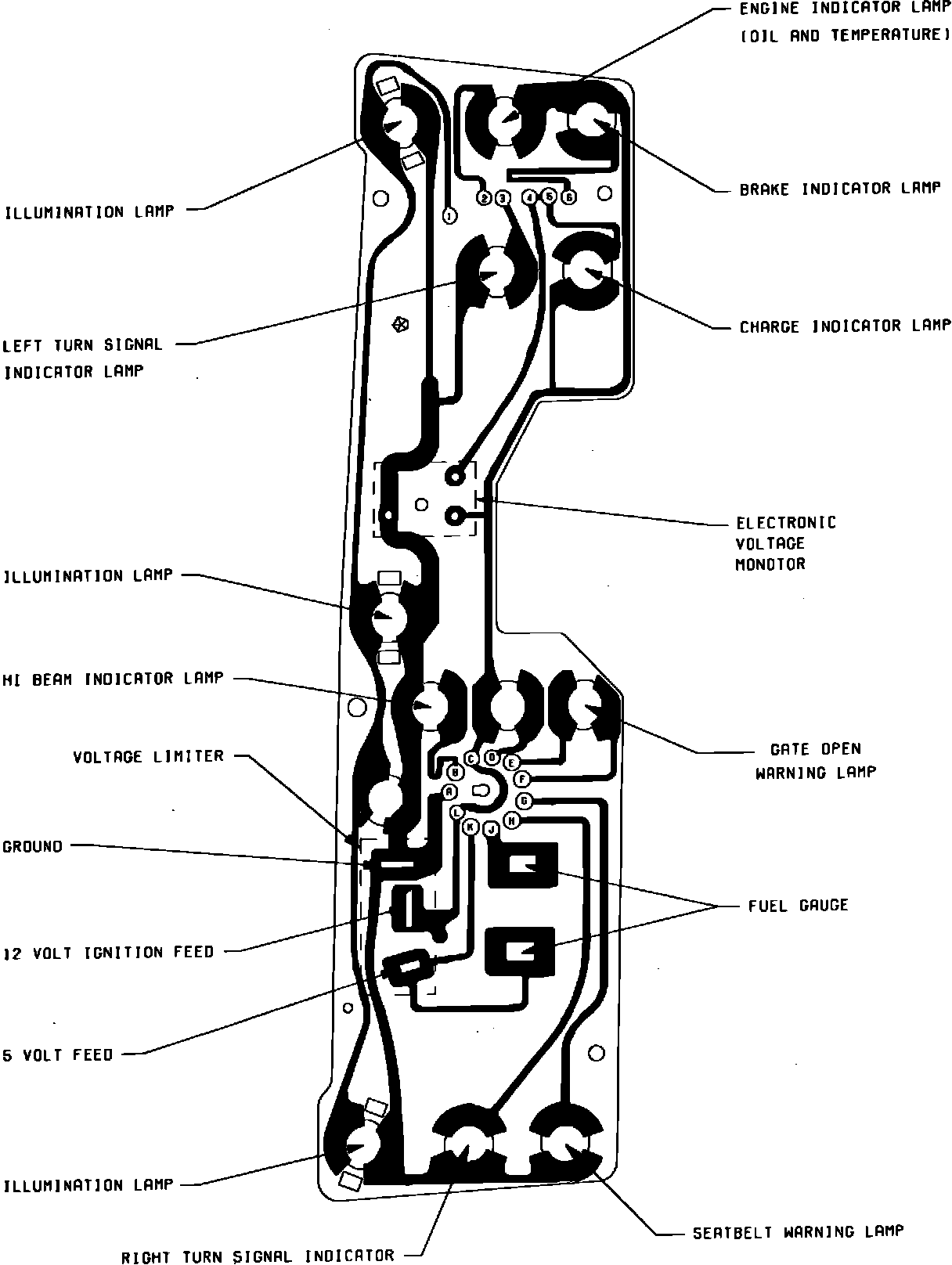

Fig. 2 Instrument Panel Circuit Board. 1983:
