Home >> Plymouth >> 1983 >> Reliant-K L4-156 2.6L VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Key Reminder Switch >> Part 1 of 2

Part 1 of 2

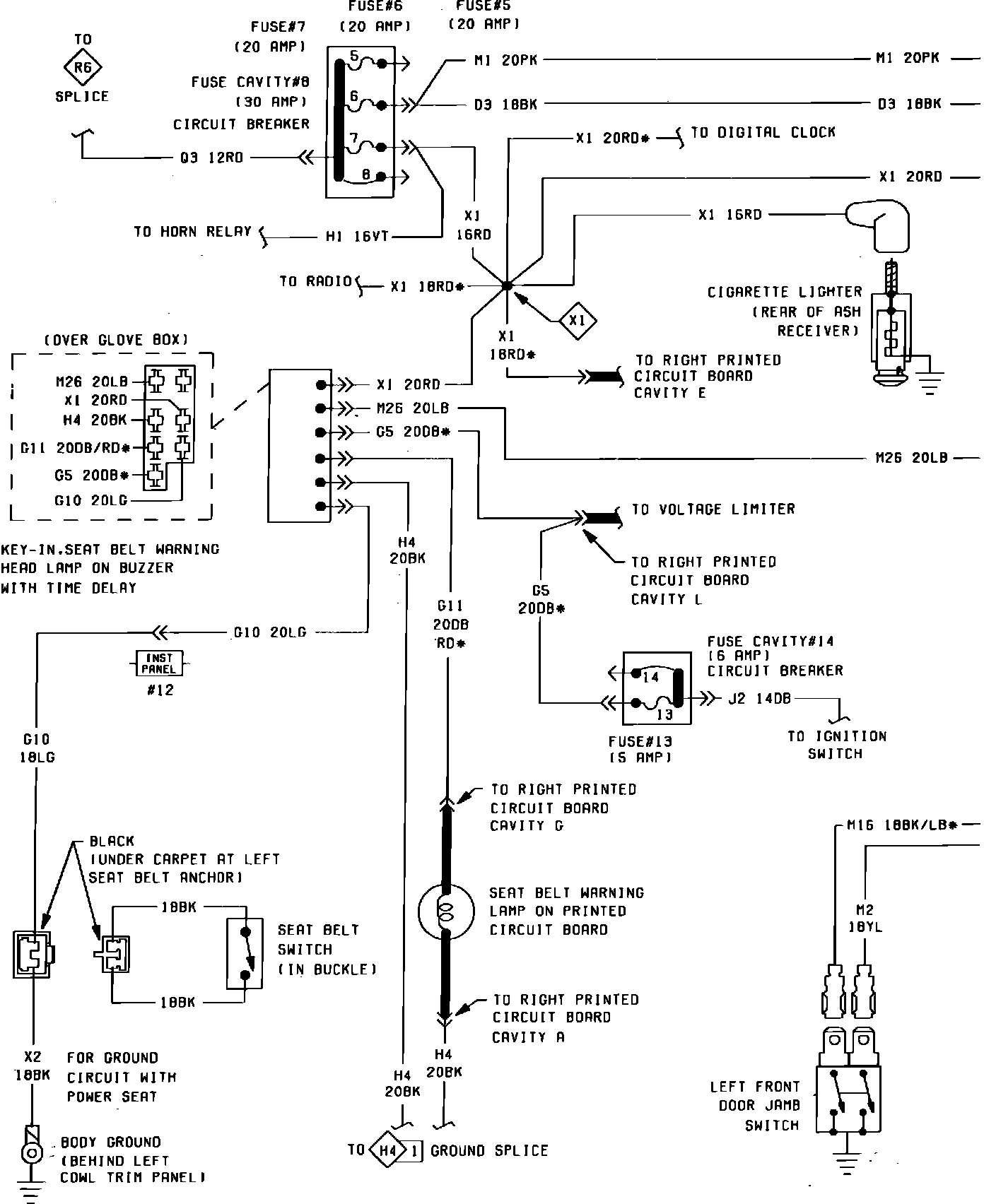

Fig. 34 Cigar Lighter, Instrument Panel Courtesy Lamps & Seat Belt Warning System Wiring Circuit (Part 1 of 2). 1983:
