Radiator Fan and Compressor Circuits

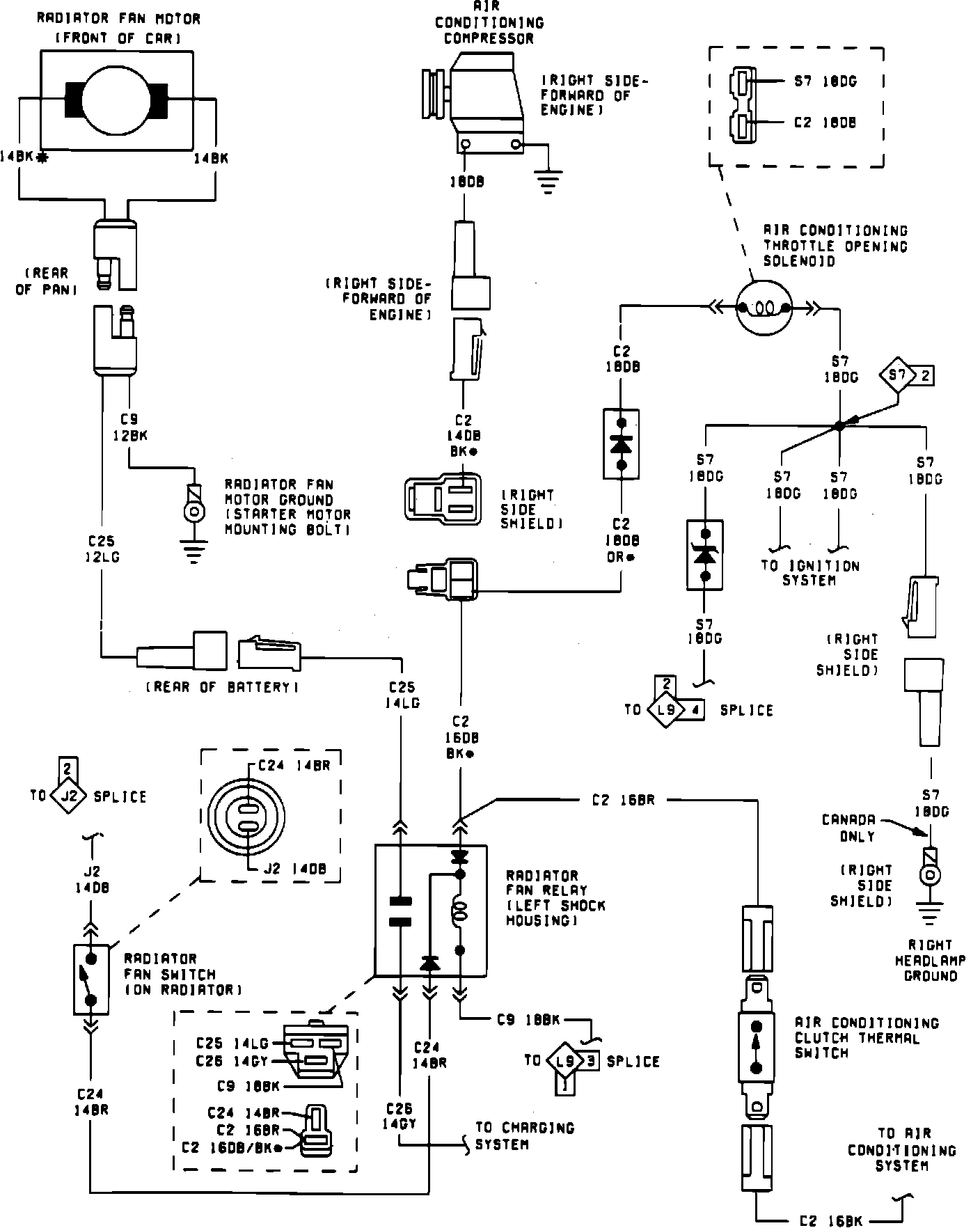

Air Conditioning System 2.6L:



Air Conditioning System (Fleet) 2.6L:
