With Intermittent Wiper

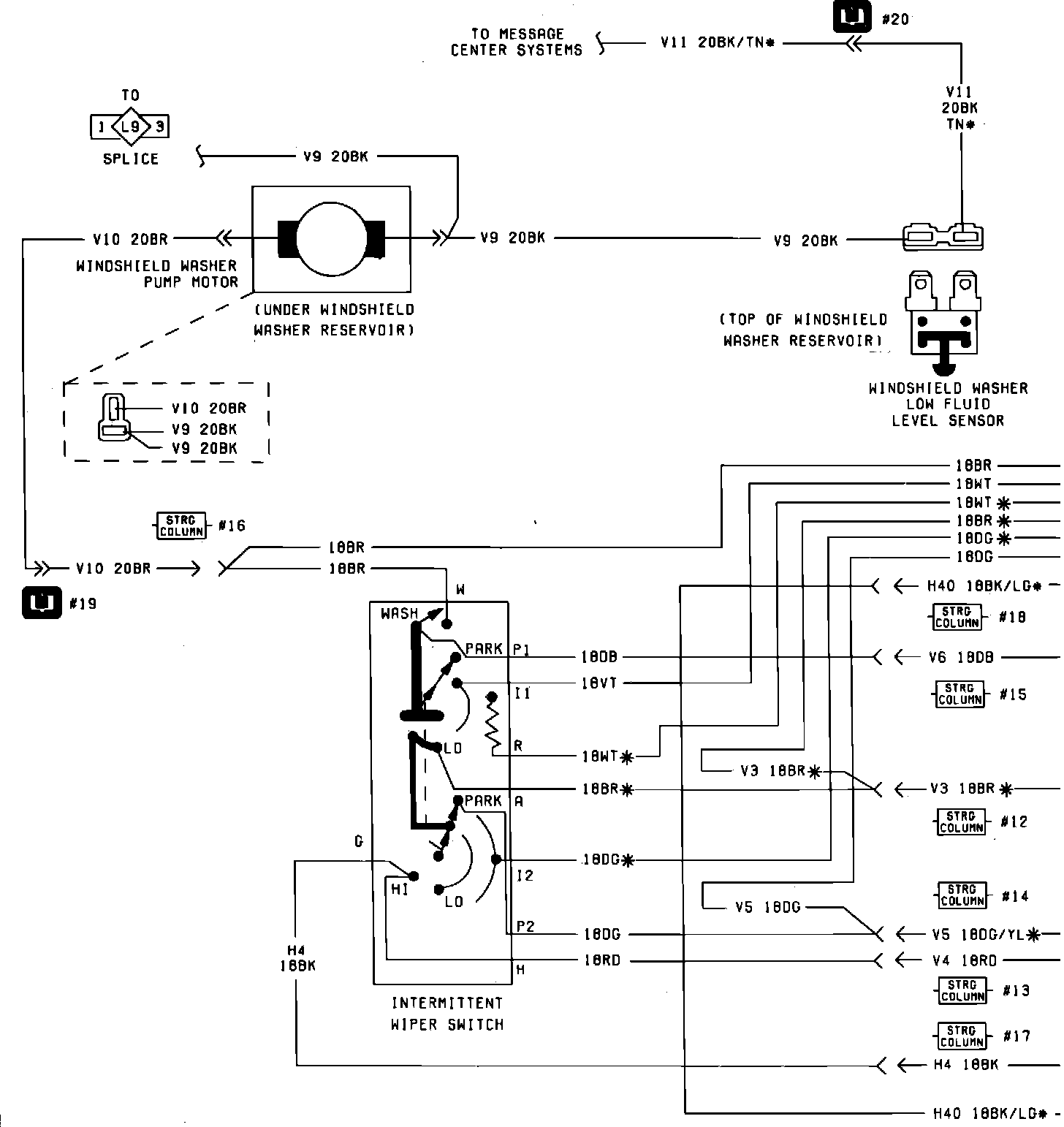

Fig. 59 Intermittent Wiper Wiring Circuit (Part 1 of 2). 1983:

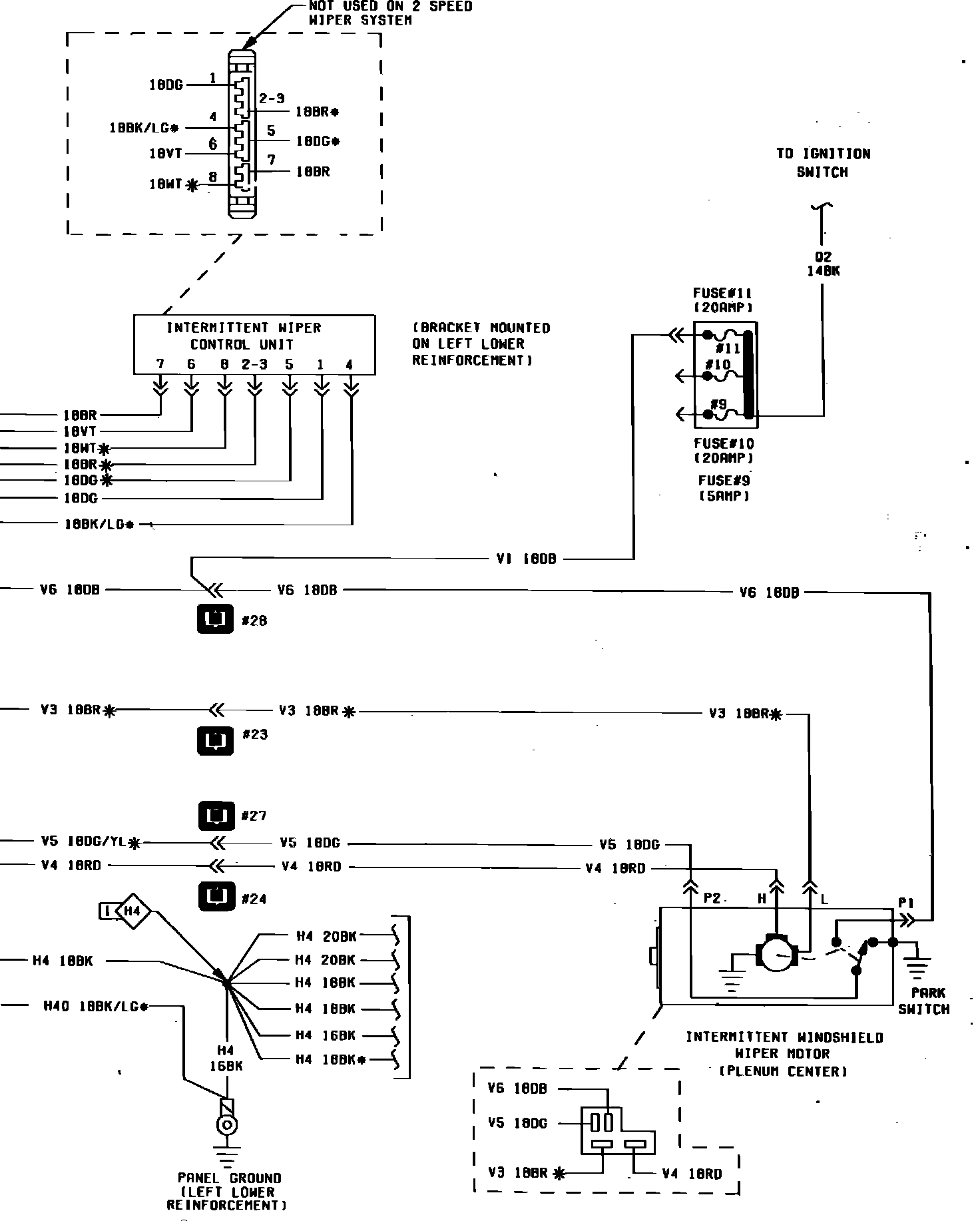

Fig. 59 Intermittent Wiper Wiring Circuit (Part 2 of 2). 1983:
