Air Conditioning & Heater Wiring

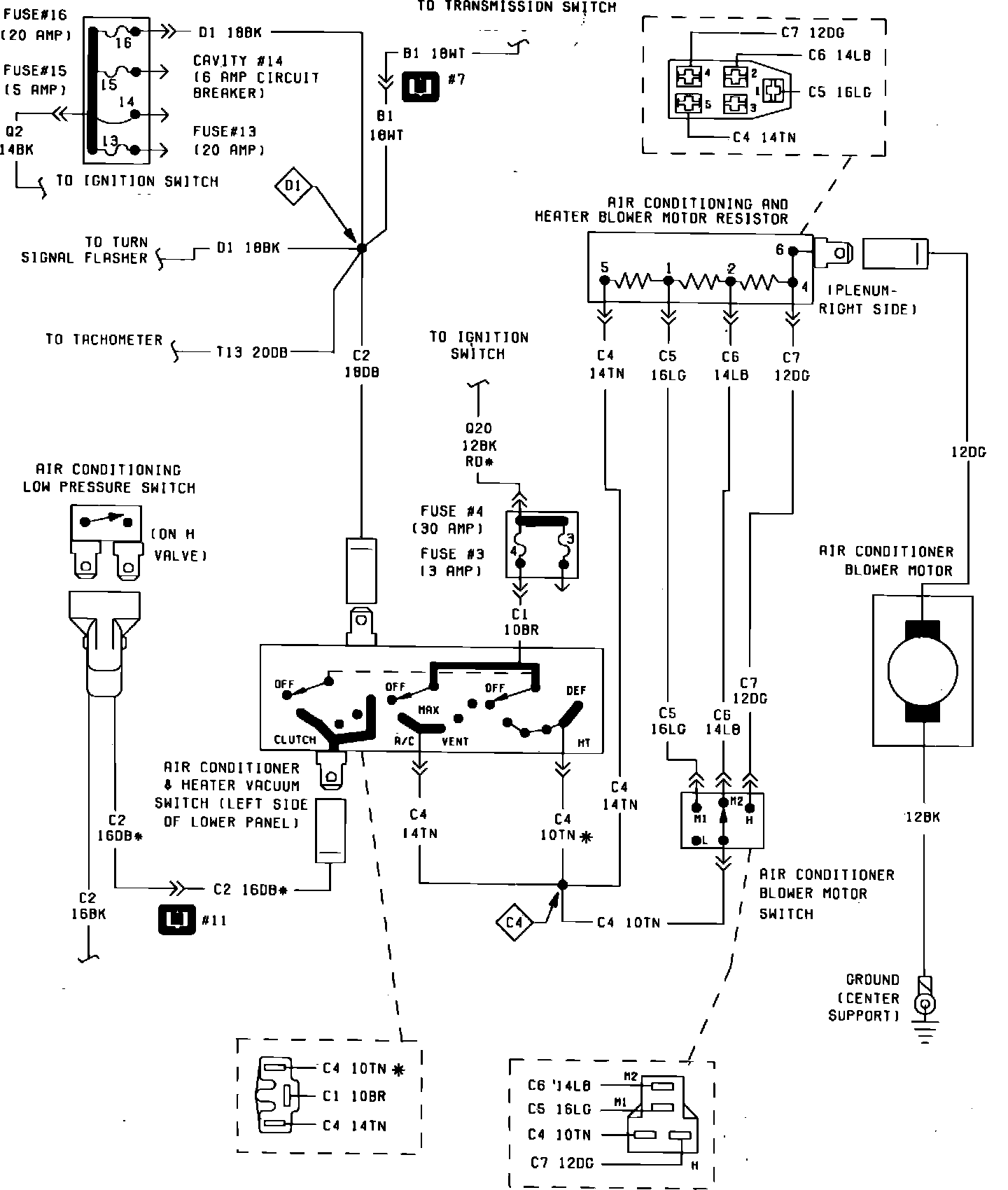

Air Conditioning & Heater Control Circuit Part 1 Of 3:



Air Conditioning & Heater Wiring Circuit (Part 1 of 2):



Air Conditioning & Heater Wiring Circuit (Part 2 of 2):
