Timing Component Alignment Marks: Locations

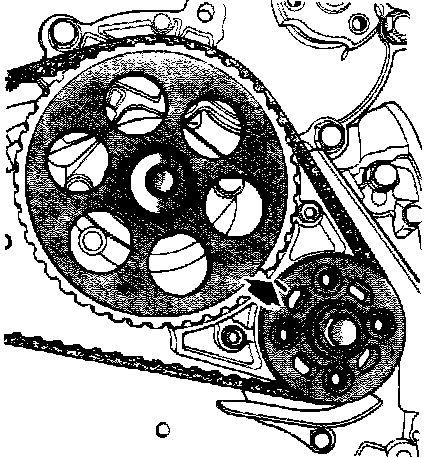

Fig. 15 Aligning timing marks on crankshaft & intermediate shaft sprockets:

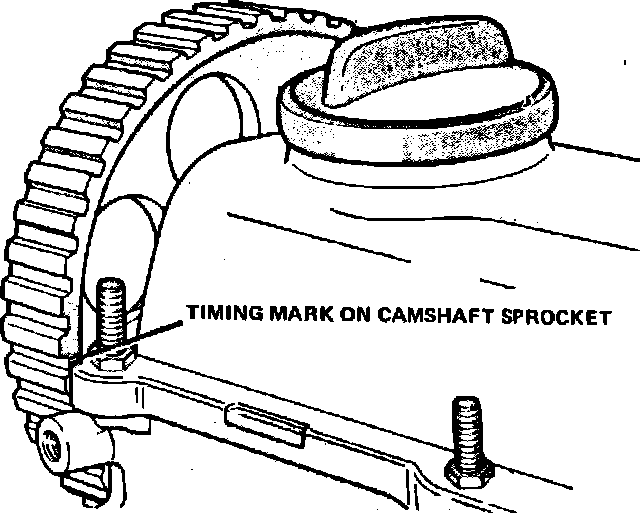

Fig. 16 Aligning timing mark on camshaft sprocket:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
