Home >> Plymouth >> 1983 >> Turismo L4-105 1720cc 1.7L VIN B 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Ignition Timing >> Specifications

Ignition Timing: Specifications

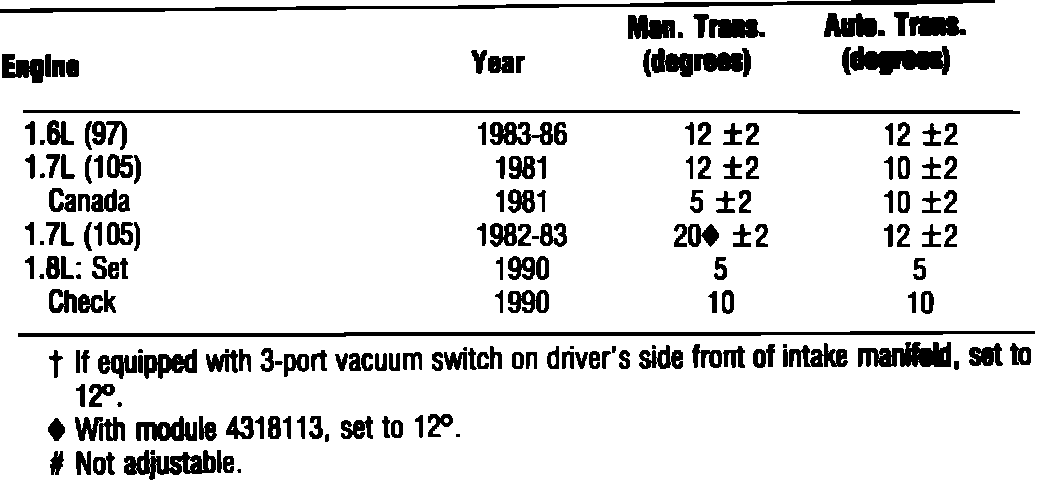

TIMING SPECS. 1.6L & 1.7L:
