Clutch: Service and Repair

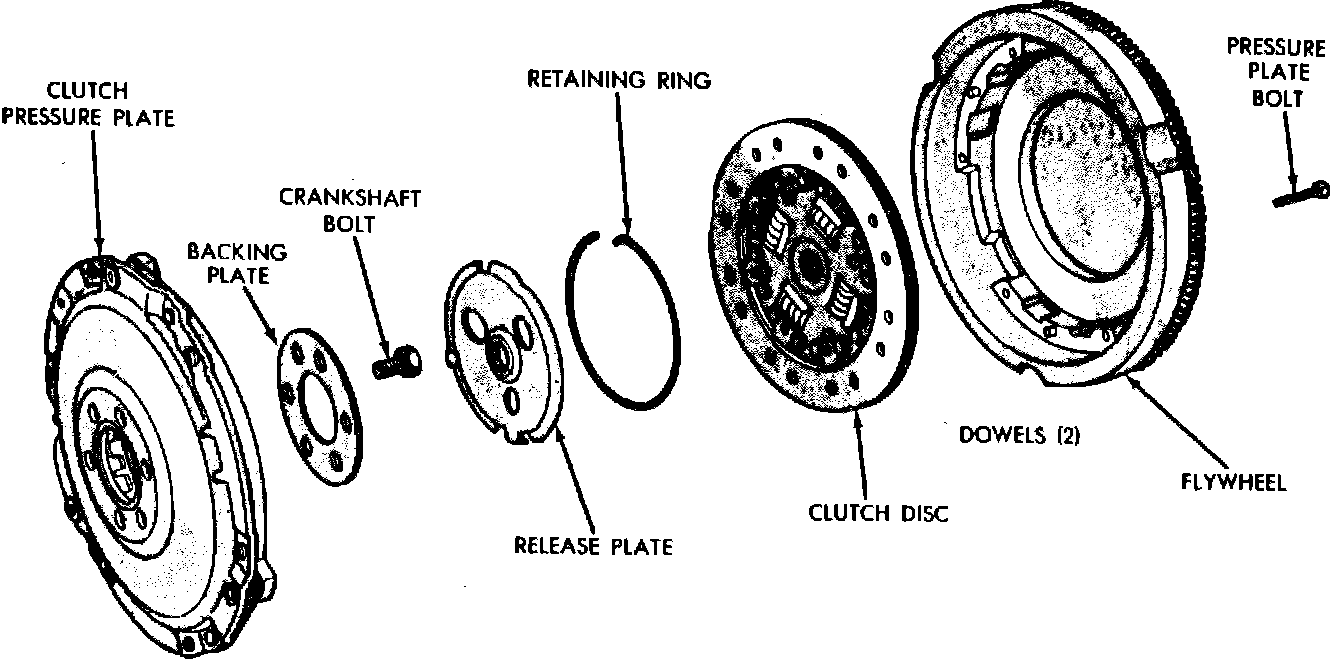

Fig. 5 Clutch assembly. Models w/4-105 engine:

MODELS W/4-105 ENGINE

Removal

1. Remove transaxle as outlined under "Manual Transaxle, Replace" procedure.
2. Gradually loosen and remove bolts attaching flywheel to pressure plate.
3. Remove flywheel and clutch disc.
4. Remove retaining ring and release plate.
5. Mark position of pressure plate on crankshaft.
6. Gradually loosen and remove bolts attaching pressure plate to flywheel.
7. Remove spacer and pressure plate.

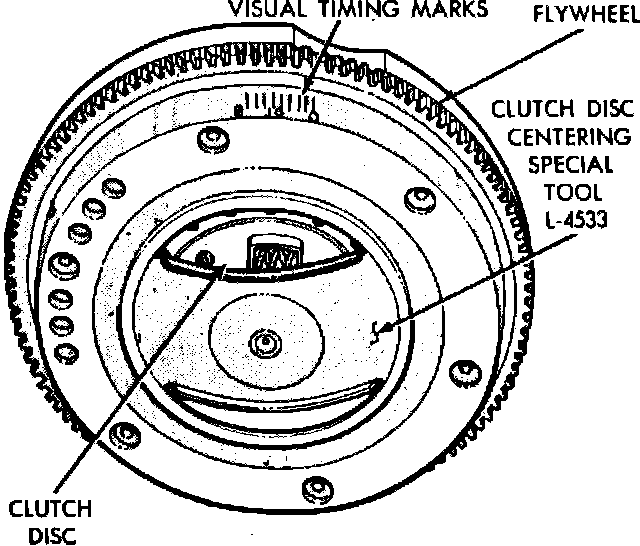

Fig. 6 Centering clutch disc. Models w/4-105 engine:

Installation

1. Thoroughly clean surfaces of flywheel and pressure plate with fine sandpaper or crocus cloth. Also, ensure that all oil or grease has been removed.
2. Align marks on pressure plate and crankshaft and install pressure plate and spacer on crankshaft. Install and torque attaching bolts to 55 ft. lbs. (75 Nm).
3. Install release plate and retaining ring.
4. Using tool L-4533 to center clutch disc, install disc and flywheel onto pressure plate. Ensure the drilled mark on flywheel is at the top so the two dowels in flywheel align proper holes in pressure plate.
5. Install and torque flywheel to pressure plate attaching bolts to 15 ft. lbs. (20 Nm).
6. Remove centering tool.
7. Install transaxle and adjust clutch.
8. Check for proper operation.
