Idling Spark Advance System Vacuum Routing

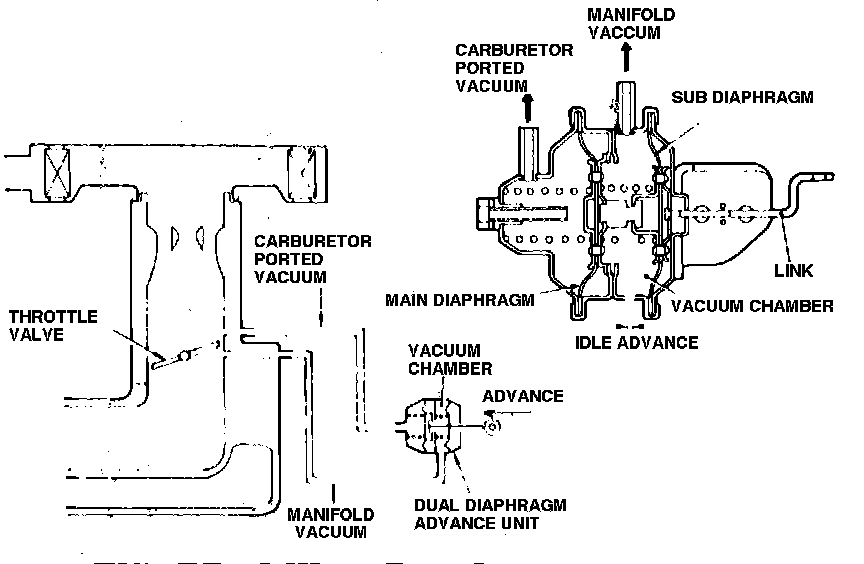

Idling Spark Advance System 1984 1400cc & 1600cc Non-Turbo engine:
