Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1984
>>
Colt L4-1597cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

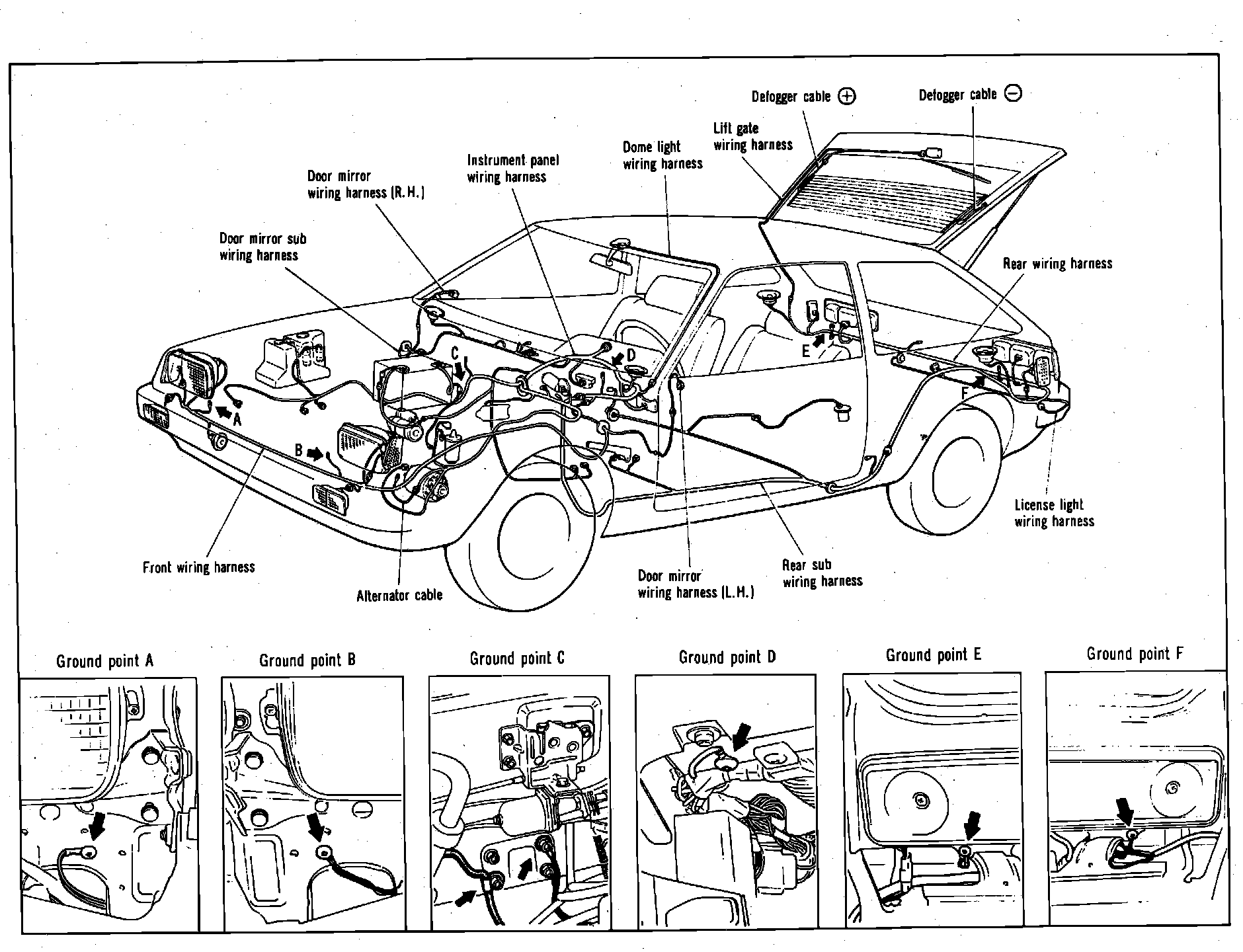

Overall Configuration Harness Diagram
Overall Configuration Harness Diagram
Wiring Harnesses.:
On Body
Applicable to: 1981-84
