Automatic Transmission/Transaxle: Testing and Inspection

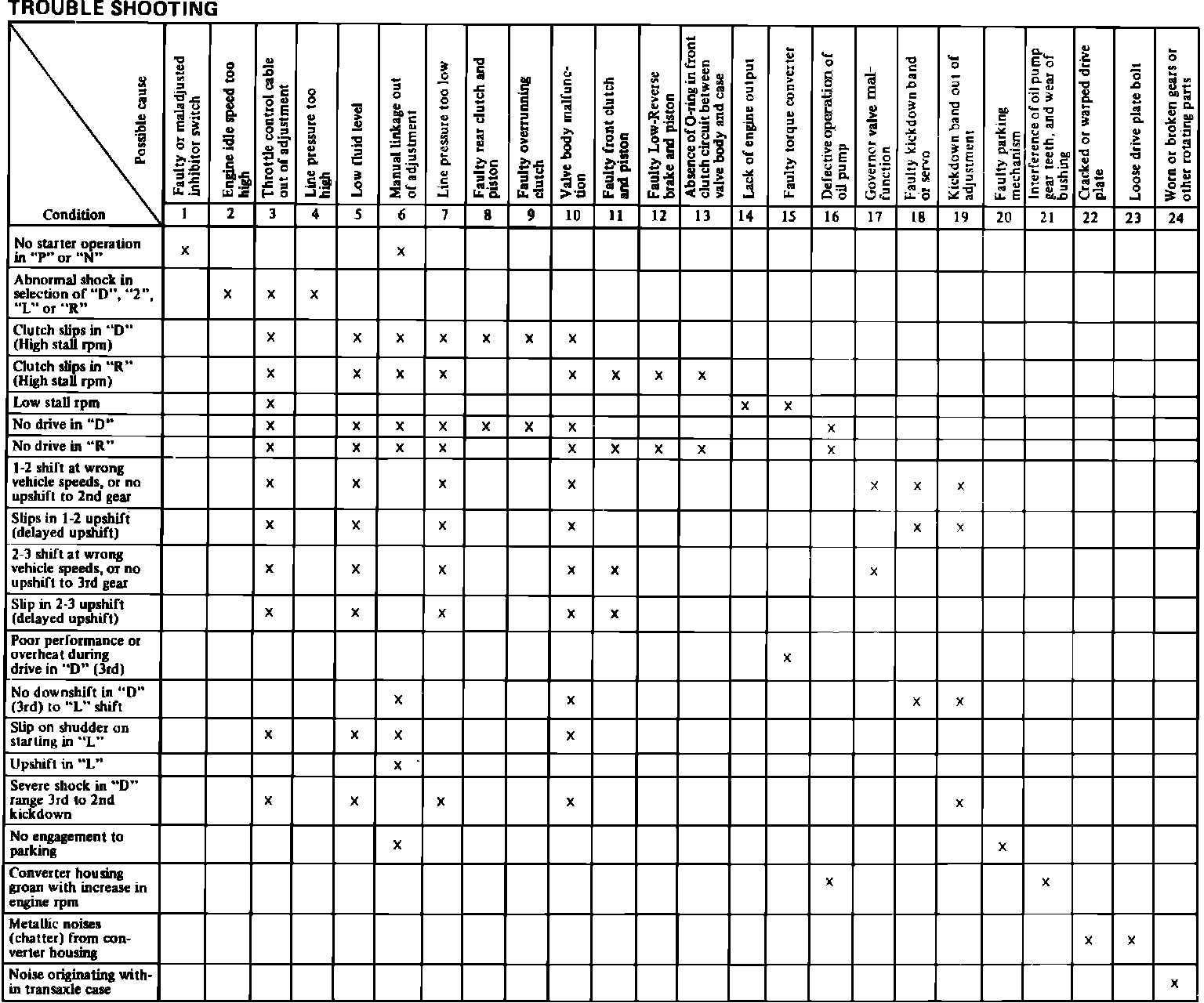

Fig. 19 Troubleshooting & diagnosis chart. 1984 Mitsubishi KM170 units:
