Mechanical Specifications

Differential Specifications

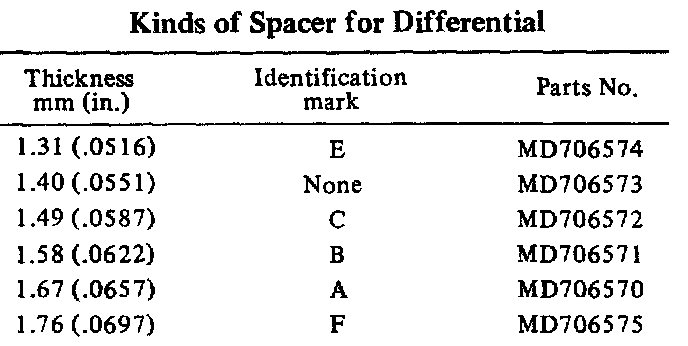

Kinds Of Spacer For Differential:

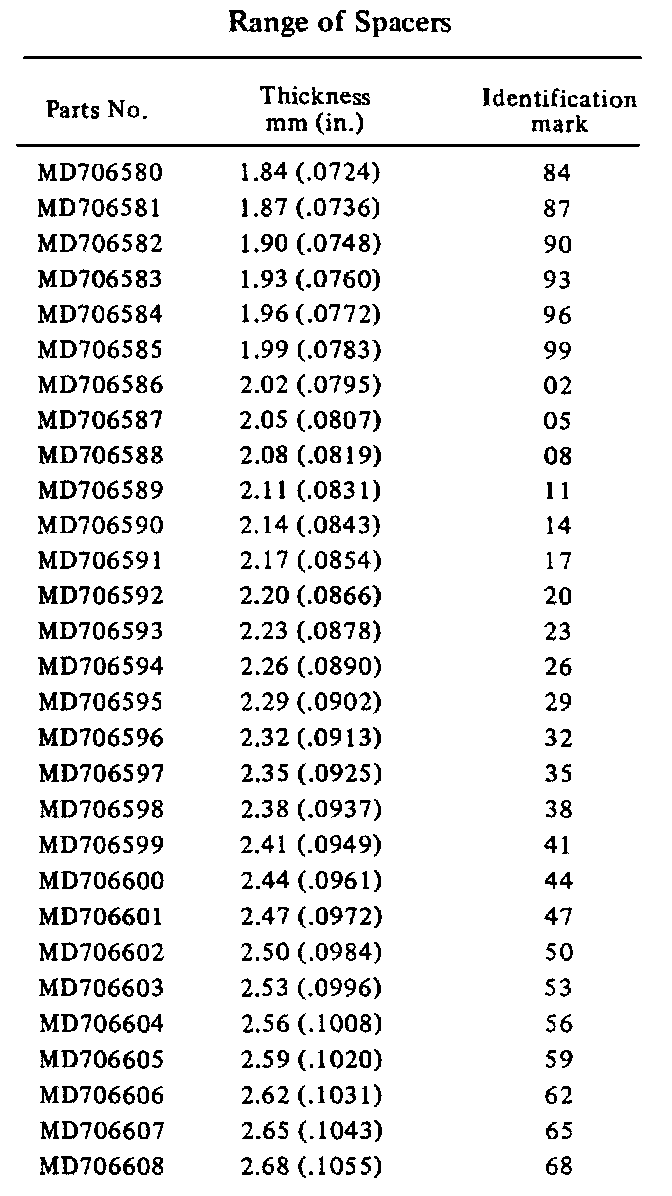

Range Of Differential Spacers:

End Play Specifications:
